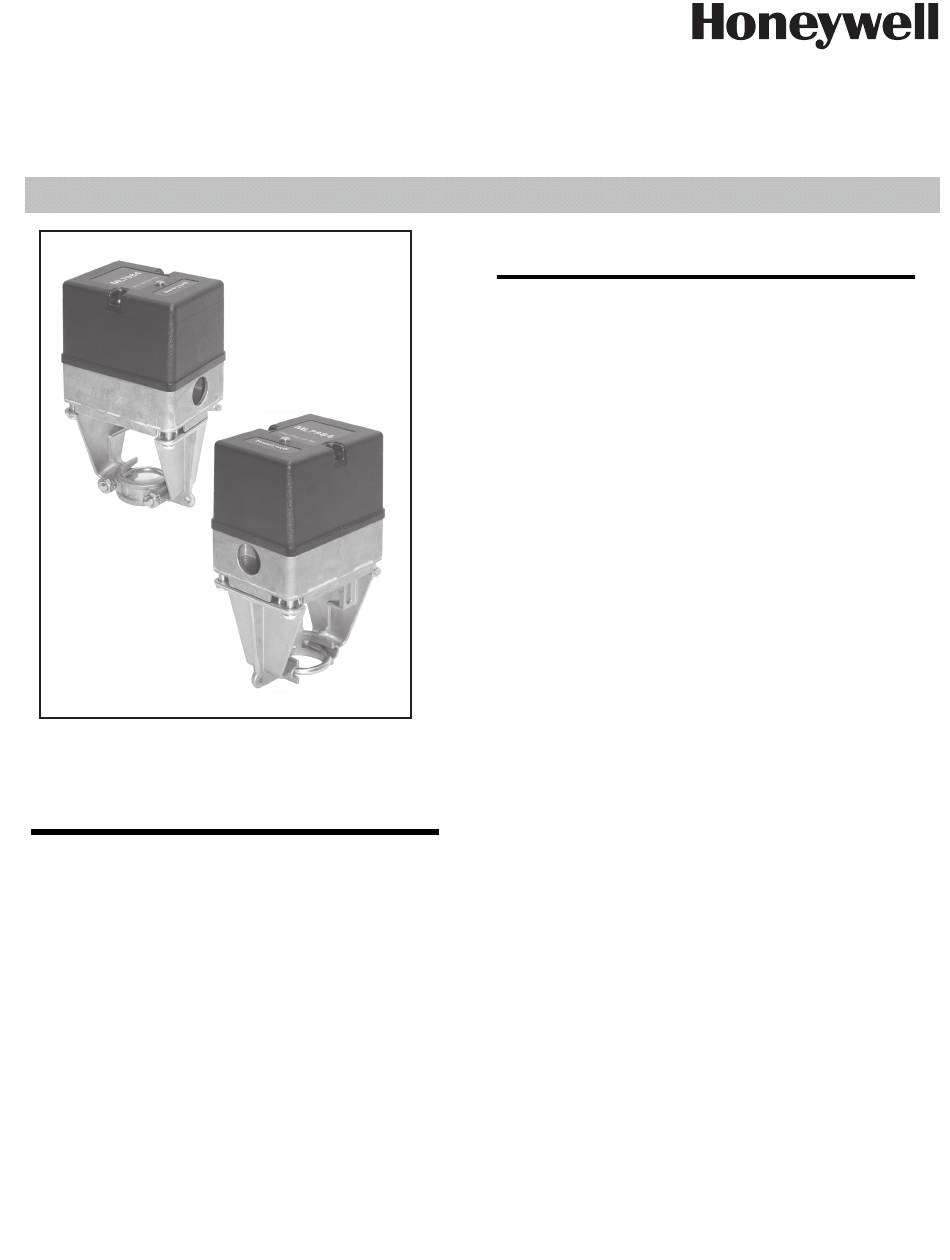

ML6984, ML7984 Series 4000
Direct Coupled Valve Actuators
APPLICATION

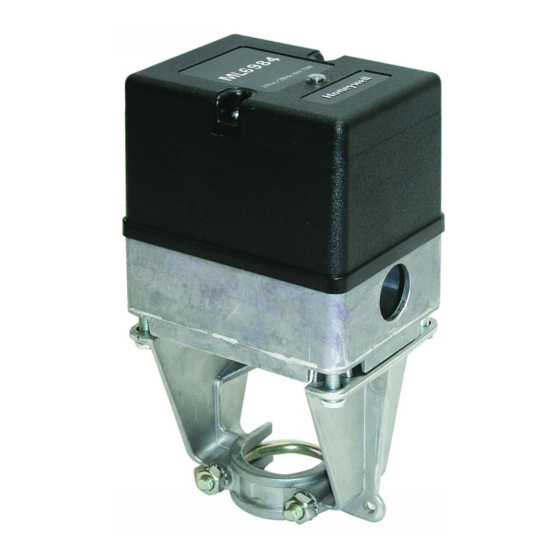

The ML6984 and ML7984 are self-contained, self-adjusting,
motorized valve actuators that mount directly onto V5011
two-way and V5013 three-way globe valves, providing linear
stem operation between 13 mm (1/2") and 25 mm (1").
ML6984 is for use with low voltage SPDT Series 20, Series
60 (on-off), or SP3T Series 60 (floating) electro-mechanical
and electronic controllers.
ML7984 is for use with Series 70 0-10 Vdc, 2-10 Vdc,
4-20 mA; electronic Series 90 "SuperMod"; and 135 ohms
modulating controllers.
FEATURES
• 3-wire and Self-contained, motorized globe valve linkage
• Accurate electronic interface and motor control
• Compact size for easy installation in confined spaces
• NEMA 3R rain-proof cover for outdoor installation
• Self-calibrating for valve stroke from 13 mm (1/2") to 25 mm
(1")
• DIP switch input configuration selection
• LED (light-emitting diode) status indication
• Configurable to 3-wire mode for floating models
• 710 N (160 lbf) valve closing force
• Usable with common transformer power supply for multiple
actuators and controllers
• 24 Vac or 28 Vdc power supply
• Field-addable position feedback/auxiliary switch module avail-
able
Contents
Specifications......................................................................... 2
Ordering Information............................................................... 2
Installation.............................................................................. 3
Wiring Schematics................................................................... 5
Operation................................................................................ 9
Replacement Notes................................................................. 10
Checkout.................................................................................11
Troubleshooting ......................................................................11
PRODUCT DATA
Advertisement
Related Manuals for Honeywell 4000 Series
Summary of Contents for Honeywell 4000 Series
-
Page 1: Table Of Contents
ML6984, ML7984 Series 4000 Direct Coupled Valve Actuators PRODUCT DATA FEATURES • 3-wire and Self-contained, motorized globe valve linkage • Accurate electronic interface and motor control • Compact size for easy installation in confined spaces • NEMA 3R rain-proof cover for outdoor installation •... -
Page 2: Specifications
If you have additional questions, need further information, or would like to comment on our products or services, please write or phone: 1. Your local Honeywell Home and Building Control Sales office (Check white pages of your phone directory). 2. Honeywell Customer Care... -
Page 3: Installation
The valves are to be installed by skilled personnel and in strict accordance with the installation instructions and local regulations. 3" (8cm) for Actuators with mechanical Honeywell assumes no responsibility for damages or injuries auxiliary switches resulting from non-compliance with installation instructions or... - Page 4 Assembly of MLx984 Actuator to the valve: 1. The drive shaft of the MLx984 Actuator has a 1/4-28 UNF threaded hole to link with the valve stem. Slide the yoke over Allen Wrench the valve bonnet (Fig. 4). 2. Thread the MLx984 Actuator drive shaft onto the valve stem all the way, until it is completely attached (with no threads showing), by turning the valve actuator in a clockwise direction, as viewed from above.
-
Page 5: Wiring Schematics
WIRING SCHEMATICS MLx984 actuators are designed to operate from a Safety Extra Low Voltage, Class II power source. A 7/8” wiring hole is provided for attaching flexible conduit where required by local codes. When installing outdoors, weatherproof conduit fittings approved for outdoor and wet locations must be used. - Page 6 SIGNAL ML7984 SOURCE SIGNAL ML7984 SOURCE ML7984 ML7984 24 Vac 24 Vac ML7984 28 Vdc 28 Vdc (SLAVE) ML7984 FIG. 9B — ML7984 WIRING WITH 20 mA ANALOG FIG. 9A — ML7984 WIRING WITH 10 Vdc ANALOG CONTROL SIGNAL CONTROL SIGNAL For Figures 9A and 9B the following apply: Power supply provides overload protection and disconnect means.
- Page 7 FIG. 10 — ML7984 WIRING WITH SERIES 90 MECHANICAL 135! (SLIDEWIRE) CONTROLLERS 2 ML7984 MODULATING SINGLE LIMIT 2 ML7984 SOURCE 24 Vac SINGLE 2 ML7984 SOURCE 2 ML7984 28 Vdc 24 Vac 24 Vac 2 ML7984 28 Vdc 2 ML7984 24 Vac 28 Vdc 28 Vdc...
- Page 8 FIG. 11 — ML7984 WIRING WITH ELECTRONIC SERIES 90 “SUPERMOD” CONTROLLERS ELECTRONIC 2 ML7984 2 ML7984 SERIES 90 ELECTRONIC (W973, T775, SERIES 90 H775, W7100) (W973, T775, H775, W7100) 24 Vac NOTE: 2 ML7984 2 ML7984 Polarity sensitive, 28 Vdc check connections W to R, R to W 24 Vac...
-
Page 9: Operation
OPERATION GENERAL NOTE: Each time actuator terminals T5-T6 are (re)powered, the micro- 1. The ML7984 must be field configured with the DIP switches which processor will cycle the valve through a full stroke to calibrate its are located beside the terminal block. See wiring diagrams for position. -
Page 10: Replacement Notes
DO NOT ROUTE RELAY CONTACTS THROUGH THERMOSTAT. POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED. — FIG. 12 ML6984 WITH Honeywell Round THERMOSTAT FACTORY INSTALLED JUMPER. If connecting the ML6984 directly to a T87F with a Series 20 OPTIONAL 24 VAC COMMON CONNECTION. -
Page 11: Checkout
CHECKOUT ML7984: 3. Connect 24 Vac or 28 Vdc power to T5 and T6. 1. Make sure the valve stem is completely screwed into the 4. Jumper R & B. The valve stem should move up. actuator drive shaft with no threads showing before applying 5. - Page 12 3) Program daily valve reset Automation and Control Solutions Honeywell International Inc. Honeywell Limited-Honeywell Limitee 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Toronto, Ontario, M1V 4Z9 www.honeywell.com/building/components 06/06 RJ © Honeywell 2006 Printed in Canada 95C-10939-4...
