For Husqvarna Parts Call 606-678-9623 or 606-561-4983
____________________________________________________________
Subject:
Clutch Replacement Broad Area Mower PN 539106329
_____________________________________________________________
Models Affected:
_____________________________________________________________
Service Information:
that was improperly installed by the clutch manufacturer. The field bearing may have been installed without
proper clearance, which may cause premature failure. All new units manufactured before 11/2003 need to
have the clutch replaced before sale. Replace with new part # 539110668. This can be accomplished without
removing the mower from the crate. Units already used will not be changed unless failure occurs. All existing
inventory should be returned for credit
________________________________________________________________________
Warranty information:
Units replaced will receive 3/4-hour labor credit
________________________________________________________________________
Instructions:
1.
The following instructions are to remove and replace the clutch while still in the crate. If the unit is removed from
the crate it will make replacement easier but is not necessary.
2.
Pull back the plastic from the back exposing the engine compartment.
3.
Remove the back guard on the engine compartment.
4.

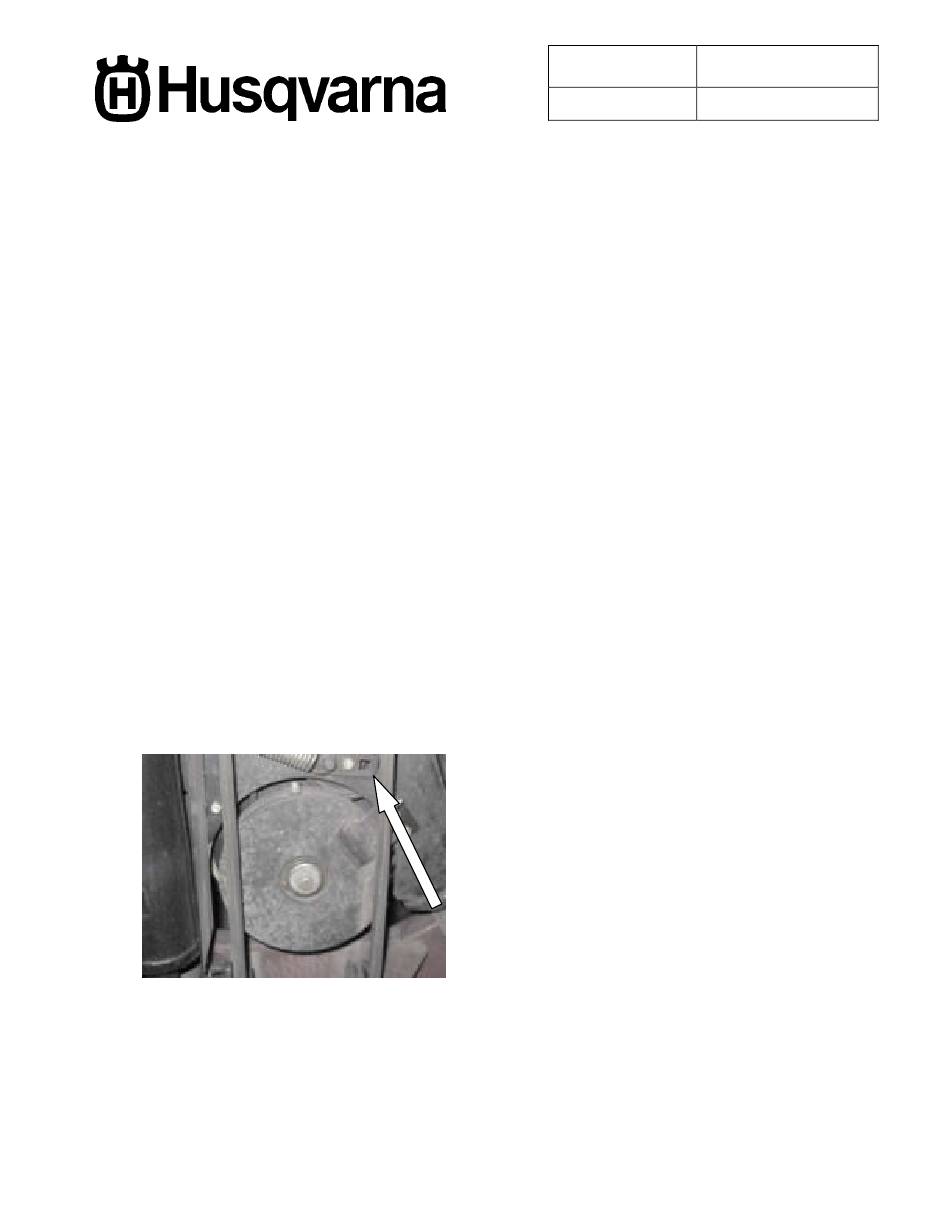

Using a ½ inch ratchet and an extension, insert in the square hole on the primary belt idler (see figure 1).
Figure 1
5.
Pull up on the idler to loosen tension on primary belts and remove the belts
(see figure 2). These are the two belts on the inside nearest the engine.
968999214,BZ6134D 968999216,BZ7234D, 968999218, BZ6127D
The clutch for the mule drive belt on the above listed mowers may have a bearing
.
.
www.mymowerparts.com
B0303025
SERVICE
BULLETIN
2003-11
1
Advertisement
Related Manuals for Husqvarna 968999214
Summary of Contents for Husqvarna 968999214
-
Page 1: Warranty Information
For Husqvarna Parts Call 606-678-9623 or 606-561-4983 B0303025 SERVICE BULLETIN 2003-11 ____________________________________________________________ Subject: Clutch Replacement Broad Area Mower PN 539106329 _____________________________________________________________ Models Affected: 968999214,BZ6134D 968999216,BZ7234D, 968999218, BZ6127D _____________________________________________________________ Service Information: The clutch for the mule drive belt on the above listed mowers may have a bearing that was improperly installed by the clutch manufacturer. - Page 2 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 Figure 2 Remove the clutch wires from the clutch, which are held in place with slotted screws (figure 3 and 4). Figure 3 Figure 4 Loosen the fixed idler on the mule drive belt, this is the lower right idler (figure 5). Mark the location before removal to aid in re-installation later.
- Page 3 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 Remove the bolt from center of clutch and remove the clutch. 10. Install new clutch aligning the keyway and also align the field restraint (figure 7). Figure 7 (field restraint 11. Re-install belts on the primary drive, installing the back belt first.
- Page 4 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 Figure 9 15. After checking your work, re-install the back panel and recover the unit with plastic. 16. Mark the crate showing you have replaced the clutch. 17. After completing all units call for return goods authorization to return the removed clutches and receive credit.
