Bernafon Acriva Fittings Manual
In-the-ear hearing aids
Hide thumbs
Also See for Acriva:
- Instructions for use manual (68 pages) ,
- Instructions for use manual (48 pages) ,
- Instructions for use manual (52 pages)
Related Manuals for Bernafon Acriva
Summary of Contents for Bernafon Acriva

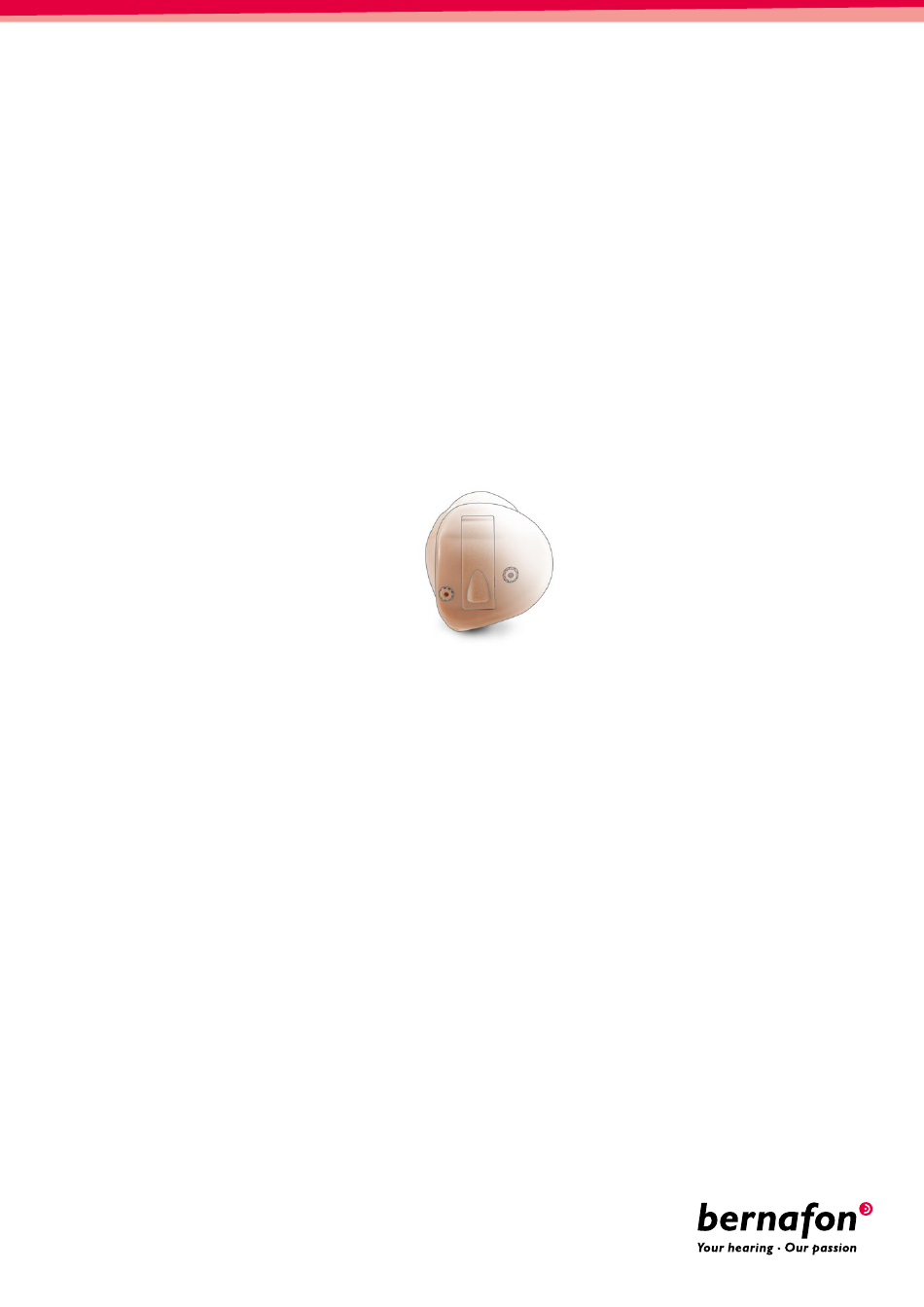

- Page 1 Fitting Guide IN-THE-EAR HEARING AIDS For Juna, Acriva, Saphira, Carista, and Nevara...
-
Page 3: Table Of Contents
Table of Contents Hearing Systems Overview Fitting Ranges Wax Protection System Microphone Protection System Fitting an ITE with Oasis Ordering Information... -
Page 4: Hearing Systems Overview
Hearing Systems Overview In-the-ear (ITE) hearing instruments are available in different styles depending on the patient’s degree of hearing loss, anatomy of the ear, and individual style preferences. This guide is designed to help you fit and manage in-the-ear hearing systems. Please note that the hearing instrument may look slightly different compared to the illustrations below. -
Page 5: Fitting Ranges
IN-THE-EAR HEARING AIDS Fitting Ranges In-the-ear hearing instruments offer a variety of different styles which are appropriate for mild to severe hearing losses. Expected fitting ranges of each ITE style are shown below. 31 ITEPD/ITCPD 06 ITED, ITCPD 07 ITCD, ITC ITEPD/ITCPD ITED ITCD/ITC... -
Page 6: Wax Protection System
Wax Protection System CIC and IIC models are supplied with the ProWax miniFit system. All other in-the-ear hearing instruments are supplied with the ProWax system. ProWax miniFit ITE hearing instrument models ProWax ITE hearing instrument models IICx ITCD CICx ITCPD CICP ITED ITEPD... -
Page 7: Microphone Protection System
IN-THE-EAR HEARING AIDS Microphone Protection System In-the-ear hearing instruments are supplied with either the T-Cap or O-Cap for microphone protection. O-Cap Filter for ITEPD, ITED, ITCPD, ITCD, and ITC The tool has two ends, one for the removal of the O-Cap (A) and one with the new O-Cap attached (B). - Page 8 T-Cap Filter for CICP, CICx, CIC, IICx, and IIC The tool has two ends, one for the removal of the T-Cap (A) and one with the new T-Cap attached (B). 1 Use the removal end (A) and push it under the top edge of the used T-Cap 2 Lift the used T-Cap up and out 3 Use the other end of the tool (B), insert the new T-Cap into the opening and slightly twist AR_ILLU_miniBTE_T_Cap1_BW_Hi...
-
Page 9: Fitting An Ite With Oasis
IN-THE-EAR HEARING AIDS Fitting an ITE with Oasis All in-the-ear hearing instruments are programmed with Oasis 24.0 or higher software, New Standard (no. 2) programming cables, and either the Programming Adapter Mini or the FlexConnect Mini. CIC and IIC CIC and IIC are programmed with the Programming Adapter Mini. 1 Gently remove the battery door by pulling it up and away from the instrument as shown on the picture below. - Page 10 All Other ITEs Except the CIC and IIC, all other ITE models should be fitted using the FlexConnect Mini. Use FlexConnect Mini Do not use FlexConnect Not ok FC_MINI_ILLU_Overview_BW 1 Insert a fresh battery, and open the battery door slightly. With the black dot facing up, insert the end of the FlexConnect Mini into the space between the battery door and the hinge until the black dot touches the faceplate.
-
Page 11: Ordering Information
IN-THE-EAR HEARING AIDS Ordering Information Wax Filters PART NUMBER DESIGNATION COMMENTS 130091 ProWax miniFit Filter For CIC and IIC models only Turtle with 6 filters Hydrophobic coating 123459 ProWax Filter Turtle with 6 filters Hydrophobic coating 123467 T-CAP Microphone Filter, BL Dispenser with 8 filters Hydrophobic coating (for IICx, IIC) - Page 12 Tools PART NUMBER DESIGNATION COMMENTS 122513 Battery drawer removal tool 121563 Small vent cleaning tool For IICx and IIC Adapter PART NUMBER DESIGNATION COMMENTS 117468 FlexConnect Mini Applicable for all ITEs except the CIC and IIC non wireless models 164237 Applicable for the CIC Programming Adapter Mini and IIC models...
- Page 13 IN-THE-EAR HEARING AIDS Note...
- Page 14 Note...
- Page 16 Our aim is to provide extra value to our partners every day. Bernafon representatives and employees in over 70 countries fulfi ll our vision to help people with impaired hearing communicate again without limitations.
