OPERATING
Hand-Washing Timer
741-T2HW-Series

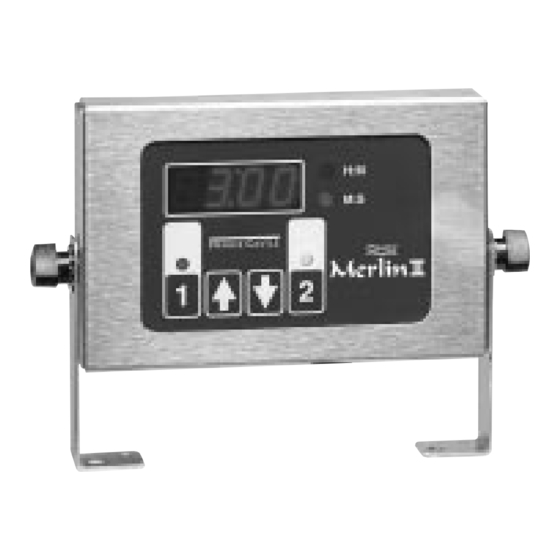

Prince Castle's second generation of Merlin Timers
feature a new slim design which gives you mounting
flexibility. The Prince Castle 741-T2HW
Handwashing Timer is pre-programmed to help start
handwashing procedures as soon as it is plugged in.
Each channel is set for one hour cycle, but can be
easily programmed to fit specific operational stan-
dards. Once started, the timer will continue to reset
itself after sounding an alarm. There is no need to
cancel and restart.
ELECTRICAL
741-T2HWCE, 741-T2HWGB
230 Volts
50 Hz
10 Watts
Single Phase
741-501revA
355 East Kehoe Blvd.
Tel: (630) 462-8800
Toll Free: 1-800-PCASTLE

TABLE OF CONTENTS

Installation ..................................................................... 2
Programming ................................................................. 2
Operation ....................................................................... 3
Cleaning ........................................................................ 3
Parts List ....................................................................... 4
Troubleshooting ............................................................ 4
Exploded View .............................................................. 5
Wiring Diagram ............................................................. 5
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 1 year from date of original installation,
not to exceed 18 months from the date of manufacture.
Any component which proves to be faulty in material and/or
workmanship will be replaced or repaired (at the option of Prince
Castle, Inc.) without cost to the customer for parts and labor. This
equipment is portable; charges for on-location service (e.g., trip
charges, mileage) are not included in the provisions of this warranty.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime
premium (the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in
shipment, by fire, flood or an act of God) is not covered under this
warranty.
• All problems due to operation at voltages other than that specified
on equipment nameplates are not covered by this warranty.
Conversion to correct voltage is the customer's responsibility.
• This equipment must be serviced by Prince Castle Authorized
Service Agency or a Prince Castle Service Technician during the
warranty period.
Carol Stream, IL 60188
Fax: (630) 462-1460
PAGE
Printed in USA 3/06 © 2006
