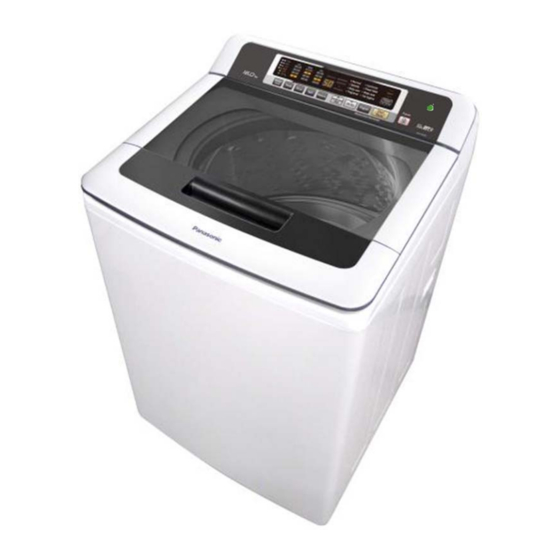

Panasonic NA-FS95G3 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CONTENTS
1.Specifications........................................................................1
2.Technical Descriptions............................................................2
3.How to Install........................................................................3
4.Operation Instruction..............................................................7
5.Test Mode............................................................................9
6.Troubleshooting Guide..........................................................11
7.Disassembly Instructions.......................................................13
8.Wiring Diagram....................................................................18
9.Parts Location & Replacement Parts List...................................19
ORDER NO. TAM1408002CE
NA-FS95G3/NA-FS85G3
‧Product Color : White
‧Destination
© 2014 Panasonic Taiwan Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
: Australia
New Zealand
Page

Advertisement

Table of Contents
loading

Related Manuals for Panasonic NA-FS95G3

Summary of Contents for Panasonic NA-FS95G3

  • Page 1: Table Of Contents

    4.Operation Instruction……………………………………………………..7 5.Test Mode………………………………………………………………….9 6.Troubleshooting Guide………………………………………………….11 7.Disassembly Instructions……………………………………………….13 8.Wiring Diagram…………………………………………………………..18 9.Parts Location & Replacement Parts List……………………………..19 10.Washing capacity & Serial Number Identification……………………30 © 2014 Panasonic Taiwan Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Specifications

    1. Specifications Models NA-FS95G3 NA-FS85G3 Items Power source AC 220 V- 240 V, 50 Hz AC 220 V- 240 V, 50 Hz Power consumption 360 W 325 W (Motor) Output 220 W 220 W Laundry amount 9.5 kg 8.5 kg...

  • Page 3: Technical Descriptions

    2. Technical Explanation 2.1 The water flow of pulsator Beat Screw A powerful motor rotates the Big Beat (BB) Flapper to create a vortex. Rotating fins on the bottom suck in water Bottom which is pumped to the upper nozzle and Beat Flash released as a high-pressure splash.

  • Page 4: How To Install

    3. How To Install ‐3‐...
  • Page 5 3. How To Install ‐4‐...
  • Page 6 3. How To Install ‐5‐...
  • Page 7 3. How To Install ‐6‐...

  • Page 8: Operation Instruction

    4. Operation Instruction 4.1 Indicators and buttons ‐7‐...
  • Page 9 4. Operation Instruction 4.2 Wash Cycle ● These default water levels can be changed to desired levels.  ● The required times include the fill time and the drain time and may become longer depending on the pressure of the water supply, drain conditions, amount of clothes, and other conditions. * The pulsator rotates during the first 3 minutes to fully dissolve detergent. After this operation, the pulsator rotates and stops periodically to soak the load. ‐8‐...

  • Page 10: Test Mode

    5. Test Mode 1. Set the power switch to "off". 2. Press and hold both the "Water lever" and "Wash" buttons with one hand. 3. Press the power switch to "on". 4. Release your fingers from the buttons and power switch which you pressed in steps (2) and (3) . (Check A can be carried out in this state with your fingers released) 5.
  • Page 11 5. Test Mode Number of times  Check  Lamp Illumination Check Contents Operation Condition the "Water level"  Procedure Condition button is pressed   • Adjust the water  • Press the "WASH" button to adjust L0 (initial  amount against  mode) to L1 (1‐rank higher water level). laundry amount  • Press "START/PAUSE" button to confirm. detection • In case to change PCB or remove the V‐belt, set the V‐belt tension to initial mode for using  below procedure. • Set to initial mode  for tension of the  • The initial display will be indicated "b0“ after  Belt that, press "START / PAUSE" button once, it  shall be listened click sound six times to set  properly. •...

  • Page 12: Troubleshooting Guide

    6. Trouble Shooting Guide 6.1 "U--" Error indication ＊ If there is an operation error, or if there is a problem with the washing machine, such as faulty draining, spinning etc.; operation will stop, the warning buzzer will sound, and an error indication will be displayed.
  • Page 13 6. Trouble Shooting Guide 6.2 “H--" Error indication Indication Content Check Point Method to Clear * Check the condition of the connectors. The PS switch is  * Replace the PS switch . Press "Power" button to turn off. abnormal. * Replace PCB board(Power side) The memory circuit of  * Replace PCB board(Power side) Press "Power" button to turn off. the I.C is abnormal. Open circuit of P.C.  * Check if lead wire condition of P.C.  boards  Board's  between power and display side, and replace  Pull out the power plug . communication line. one of P.C. Board's. * Check the condition of connectors of drain  pump. The drain bump is  * Replace the drain pump. Press "Power" button to turn off.

  • Page 14: Disassembly Instructions

    7. Disassembly Instructions 7.1 Warning Before attempting to services or adjust any part of the machine, disconnect the electrical  power supply from the outlet. 7.1 Caution Electronic components of the print circuit board is MOSFET TYPE. When replace and  trouble shooting the print circuit board, make sure body is grounded before beginning the  repair work. But, in case can not ground, touch to the plug and earth wire, and remove the  potential difference between the set and body of the worker completely. 7.3 The DISPLAY PCB, POWER PCB replacement 1. Remove the 2 screws mounting the PANEL A, then remove the PANEL A. 2. Remove 2 screws mounting control panel, open lid, then pull out the panel. • POWER PCB replacement a. Remove 2 screws mounting FIRE PROVE COVER. b. Remove all connectors, remove POWER PCB with PCB case.  • DISPLAY PCB replacement a. Remove 4 screws mounting PCB case, remove the case, and you will find display PCB. b. Remove the connector and 9 screws mounting the display PC Board, remove PCB. ‐13‐...
  • Page 15 7. Disassembly Instructions 7.4 The PS SWITCH, SF SWITCH replacement 1. Remove the 2 screws mounting the PANEL A, then remove the PANEL A. 2. Remove 2 screws mounting control panel, open lid, then pull out the panel. PS Switch Sub Hose A SF Switch Lead Wire Connector • PS SWITCH replacement. a. Remove lead wire connector. b. Remove SUB HOSE A, then remove PS SWITCH. • SF SWITCH replacement. a. Remove lead wire connector. b. Remove 2 screws mounting the SF SWITCH. ‐14‐...
  • Page 16 7. Disassembly Instructions 7.5 The FEED VALVE replacement Repeat step 1&2 in previous page, to remove PANEL A and control panel assembly. • FEED VALVE (cold) replacement a. Remove LEAD WIRE CONNECTOR. b. Remove 2 screws mounting the FEED VALVE. c. Remove FEED VALVE. • FEED VALVE (hot) replacement a. Take DETERGENT CASE B out.  b. Remove LEAD WIRE CONNECTOR. c. Remove 3 screws mounting the  DETERGENT  CASE AU. d. Pull DETERGENT CASE AU up. e. Remove 2 screws mounting the FEED  VALVE. f. Remove FEED VALVE. Connector Screw ‐15‐...
  • Page 17 7. Disassembly Instructions 7.6 The MECHANISM U replacement 1. Remove 4 screws mounting the BODY B, then raise the BODY B. (Before raising BODY B, there is a hook need to be unlock) 2. Remove 5 screws mounting the OUTER TUB COVER. 3. Loosen the special screw mounting the PULSATOR. • Do not remove the special screw from PULSATOR  completely, then hold the screw head to pull the  PULSATOR upward to remove.  4. Remove the SHAFT BUSHING、D SHAFT FLANGE  NUT and D FLANGE WASHER B, then pull the TUB  AU upward to remove. 5. Close BODY B and turn the machine upside down. SHAFT BUSHING D SHAFT FLANGE NUT D  FLANGE WASHER B 6. Remove 4 screws (M8)  SPINNER PLATE B mounting the SPINNER PLATE  7. Remove 4 screws (M13)  mounting the MECHANISM U. 8. Remove V BELT, then remove  MECHANISM U. MECHANISM U ‐16‐...
  • Page 18 7. Disassembly Instructions 7.7 The MOTOR replacement 1. Lay down the washing machine on it front side. 2. Remove lead wire connectors and rotation sensor connector from the MOTOR. 3. Loosen four bolts (M13) mounting the motor, and remove V‐belt. 4. Remove four bolt mounting the MOTOR, and remove the motor. Note: After replace the motor, adjust tension of the V‐belt properly.  And then, set micro‐processor to initial mode of V‐belt tension by operating  Test‐No water / Check procedure‐E. MOTOR Connector of motor Connector of rotation sensor V-Belt 7.8 The DRAIN VALVE (Gear Motor) replacement 1. Lay down the washing machine on it front side. Drain valve 2. Remove connector from the DRAIN VALVE. (Gear Motor) 3.

  • Page 19: Wiring Diagram

    8. Wiring Diagram NA-FS95G3WAU: NA-FS85G3WAU: NA-FS95G3WNZ: NA-FS85G3WNZ: ‐18‐...

  • Page 20: Parts Location & Replacement Parts List

    9. Parts Location & Replacement Parts List 9.1 Small standardized metal parts Ref   Part Name Part No. Q'ty Remarks BIND TAPPING SCREW             XTB3+10BFJ AXW24S+AXW145 BIND TAPPING SCREW             X‐T0405        AXW145+AXW102 BIND TAPPING SCREW             XTB4+12CFJ     AXW1661+AXW102 BIND TAPPING SCREW             XTB4+12CFJ     AXW24C+AXW102 BIND TAPPING SCREW             XTB4+14CFJ     AXW2921+AXW20T BIND TAPPING SCREW             XTB4+12CFJ     AXW20T+AXW102 SPECIAL TAPPING SCREW          X‐T0405        AXW102+AXW001A SPECIAL TAPPING SCREW          X‐T0405        AXW102+AXW001A+AXW130 TRUSS TAPPING SCREW           ...
  • Page 21 9. Parts Location & Replacement Parts List 9.2.1 Location of Parts-A...
  • Page 22 9.2.2 Replacement parts list‐A Model Name Ref   Part Name Part No. FS95G FS85G FS95G FS85G 3WAU 3WAU 3WNZ 3WNZ A1 PANEL FACE D AXW148‐S95G3A  A2 PANEL FACE A AXW145‐S6GW3W AXW146‐S95G3A   ‐ ‐ A3 PANEL FACE B AXW146‐S85G3A ‐ ‐ A4 CONTROLLER U AXW24S‐S6G3 A5 FIREPROOFING BRACKET AXW1350‐S6G3  A6 LID UX AXW01G‐F6H3 A7 SF LEVER AXW1192‐S6G3 A8 SF SWITCH AXW1661‐2320 A9 PS SWITCH AXW024T‐0381...
  • Page 23 9. Parts Location & Replacement Parts List 9.3.1 Location of Parts-B...
  • Page 24 9.3.2 Replacement parts list‐B Model No. Ref. Description Part No. FS95G FS85G FS95G FS85G 3WAU 3WAU 3WNZ 3WNZ B1 BODY AU AXW001A‐S6G3W B2 GRIP AXW110‐11A0W B3 DRAIN HOSE HOLDER AXW179‐S6G3 B4 BACK PLATE AXW156‐11A59 B5 BASE A AXW301‐S6G3 B6 LEG BRACKET AXW341‐90R50 B7 LEG COVERING AXW339‐90R0C B8 ADJUSTABLE LEG FIXER AXW337‐15HA0 B9 ADJUSTABLE KNOB AXW343‐15H0B B10 ADJUSTABLE LEG SHAFT U AXW335U‐15HA ‐23‐...
  • Page 25 9. Parts Location & Replacement Parts List 9.4.1 Location of Parts-C...
  • Page 26 9.4.2 Replacement parts list‐C Model No. Ref. Description Part No. FS95G FS85G FS95G FS85G 3WAU 3WAU 3WNZ 3WNZ C1 OUTER TUB COVER AXW3224‐16V0 C2 SPECIAL SCREW XVGAXW677E C3 O RING AXW257‐11A00 C4 PULSATOR U AXW5D‐16NTA1 C5 D FLANGE WASHER B AXW1519‐8020 C6 D SHAFT FLANGE NUT AXW1517‐90S0 C7 SHAFT BUSHING AXW504‐70700 C8 TUB U AXW02A‐16H3A C9 OUTER TUB A AXW1201‐S6G31 C10 SUSPENSION AU AXW034I‐16N03 C11 SUB HOSE A...
  • Page 27 9. Parts Location & Replacement Parts List 9.5.1 Location of Parts-D...
  • Page 28 9.5.2 Replacement parts list‐D Model No. Ref. Description Part No. FS95G FS85G FS95G FS85G 3WAU 3WAU 3WNZ 3WNZ D1 FILTER U (Large) AXW22A‐S6G3  D2 TUB B AXW202‐S6G3 D3 BALANCER U AXW35A‐B6V0 D4 TUB CU AXW12U‐B6V0 D5 TUB AU AXW201‐16H3 D6 FILTER U (Small) AXW22A‐B6V0 D7 TUB E AXW2254‐B6V0 ‐27‐...
  • Page 29 9.6.1 Location of Parts-E (1).WARRANTY CARD (Note.1) (2).OPERATION MANUAL (3).LID COVER  (4).PE COVER  (5).PET SHEET (6).PE COVER (7).SIDE CUSHION (8).SPINNER TUB SUPPORT (9).CORNER CUSHION (*2Ssts=4pcs) (10).BOTTOM CUSHION (12).CASE B (11).CASE A (13).BASE COVER (14).ADJUSTABLE COVERING(*2) (15).PRESSURE  HOSE (*1) (16).PRESSURE  HOSE (*1) Note(1). WARRANTY CARD applicable models:： ： NA‐FS95G3WAU / NA‐FS85G3WAU Australia New Zealand：NA‐FS95G3WNZ / NA‐FS85G3WNZ / NA‐F95H3WNZ / NA‐F85H3WNZ Note (2). ◎ Place NO.(1) on the first page of NO.(2),  and place in the left notch of NO.(8) ◎ NO.(14), (15) and (16), place in TUB A. ‐28‐...
  • Page 30 9.6.2 Replacement arts list‐E Model No. Ref. Description Part No. FS95G FS85G FS95G FS85G 3WAU 3WAU 3WNZ 3WNZ AXW9913‐S9HNZ ‐ ‐ 1 WARRANTY CARD AXW9913‐F9HNZ ‐ ‐ 2 OPERATION MANUAL AXW9901‐S95H3 3 LID  PE COVER AXW9060‐S6G3 4 PE COVER AXW9060‐V5M0 5 PET SHEET AXW9060‐S4G3 6 PE COVER AXW9060‐S6G0 7 SIDE CUSHION AXW9004‐S6G31 8 SPINNER TUB SUPPORT AXW9085‐S6G31 9 CORNER CUSHION AXW9015‐S6G3...

  • Page 31: Washing Capacity & Serial Number Identification

    10 .Washing capacity- 9.5kg, Fully automatic washing machine Model No N A – F S 95 G 3 ■Products category ”NA-”=washing machine) ■Development number ■Washing machine type *FS : Top loading, inverter *Next year model, *F : Top loading, normal “2”⇒”3”...
