Summary of Contents for Ranger 3068-DL

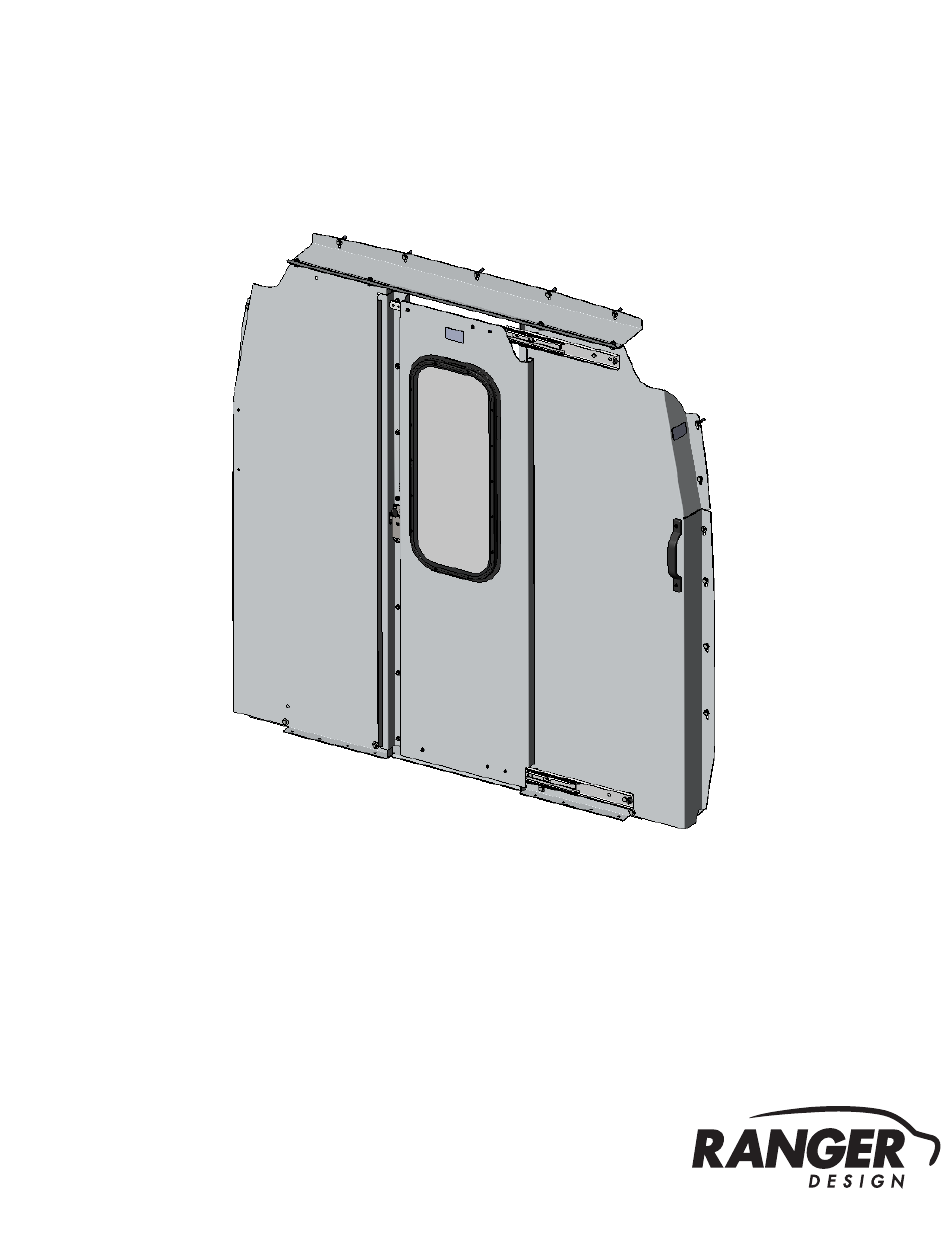

- Page 1 INSTALLATION GUIDE 3068-DL STRAIGHT PARTITION Sprinter ( Sliding Door, Aluminum )
-
Page 2: Required Items
Tape Measure q T40 Torque Bit q 3/8" Drill Bit q 7/16" Socket q 1/2" Socket q 9/16" Wrench q 3/16" Driver Bit PERSONS 3068-DL Installation Guide | REV. D2 | Page 2 For technical support, contact us at 1-800-565-5321... - Page 3 Warning Label ( Bilingual ) 30-0530 Passenger Side Panel w/ Sliding Door 30-6805 Driver Side Panel 94-3035 Assembly Fastener Bag 94-6093 Assembly Fastener Bag 96-3022 Installation Fastener Bag 3068-DL Installation Guide | REV. D2 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 #98-118 Lock Washer #98-112 Flat Washer Flat Washer 1/4", 3/4" OD 17× # 98-112 ZINC #94-130 Plusnut .250 Lock Washer Regular 1/4" 17× # 98-118 ZINC 3068-DL Installation Guide | REV. D2 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 #94-112 Serrated Nut 1.2.2 Remove all the PVC from all the parts, then attach the edge trims on these locations. TOOLS q Mallet q Cutter 3068-DL Installation Guide | REV. D2 | Page 5 For technical support, contact us at 1-800-565-5321...
-
Page 6: Phase 2 - Installation
7/16" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE 3068-DL Installation Guide | REV. D2 | Page 6 For technical support, contact us at 1-800-565-5321... - Page 7 TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut 3068-DL Installation Guide | REV. D2 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 3/8" Drill Bit or Step Drill Attach plusnuts in the 15 holes. TOOLS HARDWARE USED q Plusnut Tool 17× # 94-130 Plusnut .250 3068-DL Installation Guide | REV. D2 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 Put the assembled partition on the side, then remove the two D-rings in the pillars, for re-use. TOOLS q Cordless Impact q T40 Torque Bit 3068-DL Installation Guide | REV. D2 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 Attach the floor bracket to the floor re-using the 2 D-ring bolts. TOOLS q Cordless Impact q T40 Torque Bit HARDWARE USED 2× Use the D-ring bolt 3068-DL Installation Guide | REV. D2 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 #90-204 Hex Bolt 5/16" × 3/4" #90-118 Hex Bolt 1/4" × 1-1/4" #98-116 Flat Washer #98-118 Lock Washer #98-112 Flat Washer #94-116 Serrated Nut 3068-DL Installation Guide | REV. D2 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 2.3.3 Attach the top bracket to the van. TOOLS q Cordless Impact q 7/16" Socket HARDWARE USED 5× #90-118 Hex Bolt 1/4" × 1-1/4" #98-118 Lock Washer #98-112 Flat Washer 3068-DL Installation Guide | REV. D2 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 2.3.4 Apply the warning label on the passenger side panel. NOTE: Put the warning label in a place where it’s easy to see. 3068-DL Installation Guide | REV. D2 | Page 13 For technical support, contact us at 1-800-565-5321...
- Page 14 “Congratulations, you have successfully installed your Sliding Door Partition! Thank you for doing business with us.” 3068-DL Installation Guide | REV. D2 | Page 14 For technical support, contact us at 1-800-565-5321...
