CN05, CN10 SERIES
NON-SPRING RETURN DIRECT-COUPLED DAMPER ACTUATORS FOR
FLOATING AND TWO-POSITION CONTROL
GENERAL

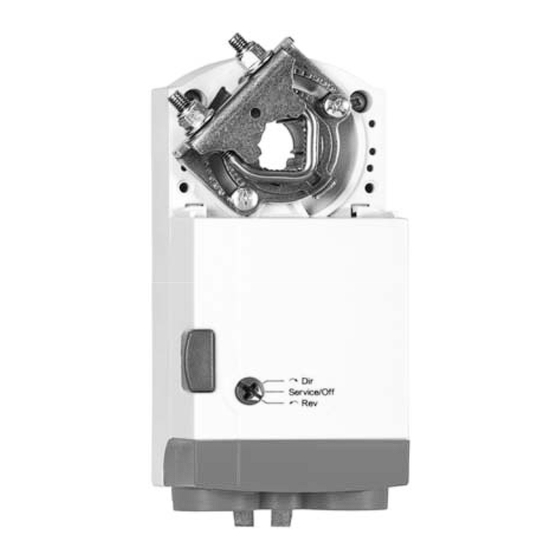

This non-spring return direct-coupled damper actuator
provides floating and two-position control for:
•
air dampers,
•
VAV units,
•
air handlers,
•
ventilation flaps,
•
louvers, and
•
reliable control for air damper applications with up to 10
sq ft / 44 lb-in. (5 Nm) and 20 sq ft / 88 lb-in. (10 Nm)
(seal- less damper blades; air friction-dependent).
FEATURES
•
Declutch for manual adjustment
•
Adjustable mechanical end limits
•
Removable access cover for direct wiring
•
Mountable in any orientation
•
Rotation direction and service/OFF switch
SPECIFICATIONS
Supply voltage
CN6105/CN6110
CN4605/CN4610
Nominal voltage
CN6105/CN6110
CN4605/CN4610
All values stated hereinafter apply to operation under
nominal voltage conditions.
Power consumption
CN6105/CN6110
CN4605
CN4610
Ambient limits
Ambient operating limits
Ambient storage limits
Relative humidity
Safety
Protection standard
Protection class
Overvoltage category
Lifetime
Full strokes
Repositions
Mounting
Round damper shaft
Square damper shaft
Shaft length
End switches (when included)
Rating
Triggering points
Torque rating
Runtime for 90°
CN6105
CN6110
CN4605
CN4610
Rotation stroke
Dimensions
Weight (without cables)
Noise rating
Certification
CN6105/CN6110
CN4605/CN4610
1
PRODUCT DATA
24 Vac/dc -15%/+20%, 50/60 Hz
230 Vac -15%/+20%, 50/60 Hz
24 Vac/dc, 50/60 Hz
230Vac, 50/60 Hz
5 VA / 2 W
22 VA / 2 W at 50 Hz
25 VA / 2 W at 60 Hz
-5...+140 °F (20...+60 °C)
-22...+176 °F (-30...+80 °C)
5...95%, non-condensing
IP54
II as per EN 60730-1
II
60000
1.5 million
3/8 in...5/8 in.
1/4 in...1/2 in.; 45° steps
min. 1-5/8 in.
Class II
5° / 85°
44 lb-in. (5Nm) / 88 lb-in. (10 Nm)
90 sec (dc / 60 Hz ac)
90 sec (dc / 50 Hz ac)
65...110 s (60/50 Hz)
65...140 s (60/50 Hz)
95° + 3°
see "Dimensions" on page 6
1 lbs.
35 dB(A) max. at 1 m
40 dB(A) for 230 Vac at
65 sec runtime
CE & UL
CE
CN0B-0544CH33 R0805B
