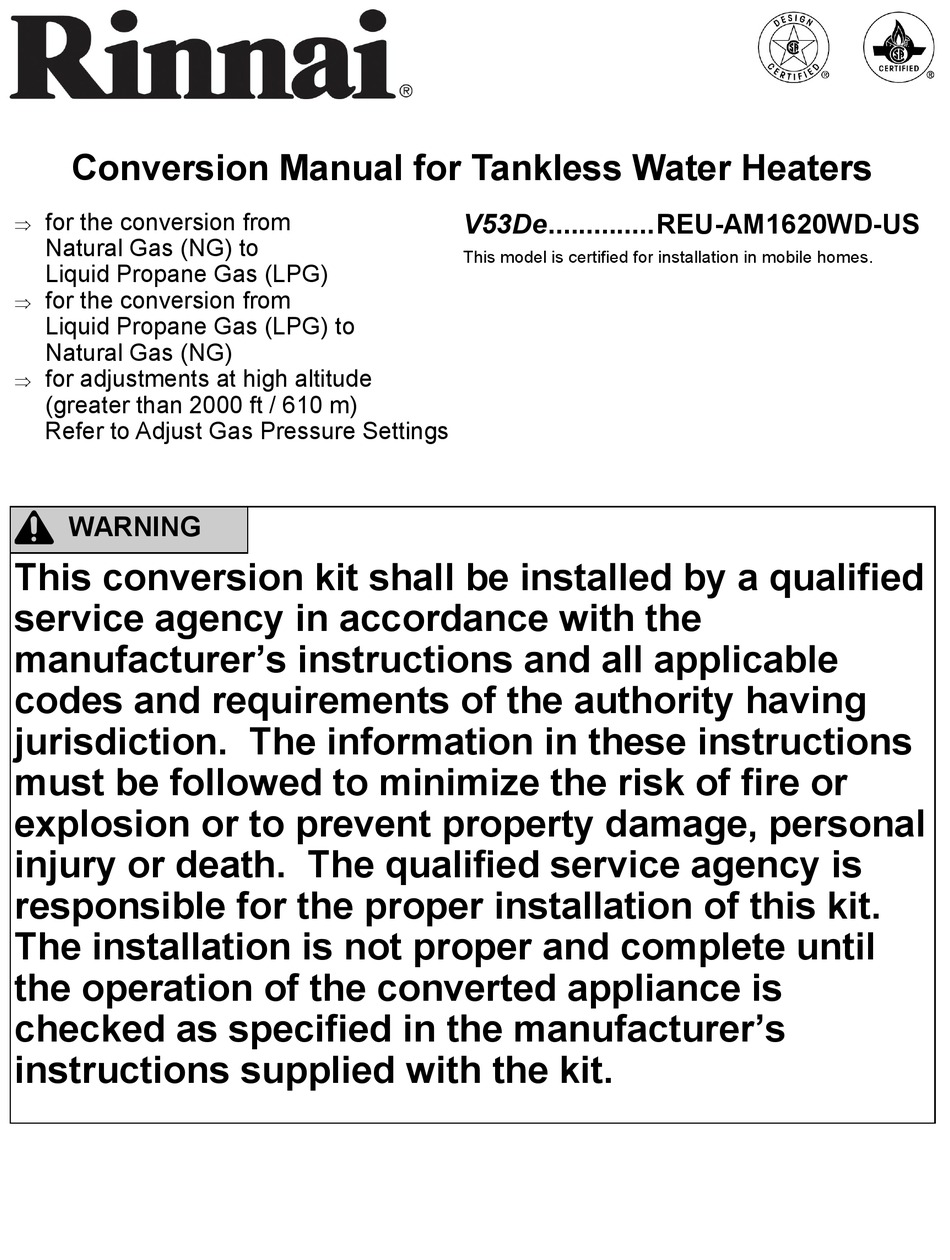

Conversion Manual for Tankless Water Heaters
for the conversion from
Natural Gas (NG) to
Liquid Propane Gas (LPG)
for the conversion from
Liquid Propane Gas (LPG) to
Natural Gas (NG)
for adjustments at high altitude
(greater than 2000 ft / 610 m)
Refer to Adjust Gas Pressure Settings
WARNING
This conversion kit shall be installed by a qualified
service agency in accordance with the
manufacturer's instructions and all applicable
codes and requirements of the authority having
jurisdiction. The information in these instructions
must be followed to minimize the risk of fire or
explosion or to prevent property damage, personal
injury or death. The qualified service agency is
responsible for the proper installation of this kit.
The installation is not proper and complete until
the operation of the converted appliance is
checked as specified in the manufacturer's
instructions supplied with the kit.
V53De .............. REU-AM1620WD-US
This model is certified for installation in mobile homes.
Advertisement
Related Manuals for Rinnai REU-AM1620WD-US
Summary of Contents for Rinnai REU-AM1620WD-US
- Page 1 Conversion Manual for Tankless Water Heaters for the conversion from V53De ....REU-AM1620WD-US Natural Gas (NG) to This model is certified for installation in mobile homes. Liquid Propane Gas (LPG) for the conversion from Liquid Propane Gas (LPG) to...
-
Page 2: Table Of Contents
(Pression de gaz d'alimentation - Minimum - Maximum) Propane Gas (Gaz propane) MIN 8 in (203 mm) W.C. Minimum - Maximum supply gas pressure MAX 13.5 in (343 mm) W.C. (Pression de gaz d'alimentation - Minimum - Maximum) Rinnai Corporation Conversion Manual... -
Page 3: Technical Data
(93.5) (17.8) (95.3) (18.0) #2 ON, #3 OFF 5201-7700 ft (1585-2347 m) 3.60 0.70 3.32 0.74 (91.4) (17.8) (84.3) (18.8) #2 ON, #3 ON 7701-10200 ft (2347-3109 m) 3.46 0.69 2.71 0.76 (87.9) (17.5) (68.8) (19.3) Rinnai Corporation Conversion Manual... -
Page 4: Gas Conversion Procedure
20. Place the instructions label on the top right side of the unit. If subsequent conversions are made NOTICE then a new conversion label must be placed on the water heater to accurately reflect the gas type. Rinnai Corporation Conversion Manual... -
Page 5: Adjust Gas Pressure Settings
“FH”. Figure 2 Dipswitch By factory default, all switches are in OFF 13. Calibrate to Forced High using PB3 to increase position. Used for High Altitude adjust- ment. gas pressure and PB4 to decrease. Figure 2 Rinnai Corporation Conversion Manual... -
Page 6: Check Operation
When operating normally the burner flame should burn The flame can be seen through the circular window evenly over the entire surface. The flame should be above the burner. clear, blue, and stable. A yellow flame is abnormal and maintenance is required. Rinnai Corporation Conversion Manual... -
Page 7: Operating Instructions
TO TURN OFF GAS TO APPLIANCE 1. Turn off all electric power to the appliance using 3. Turn the gas valve clockwise to the full OFF the ON/OFF button. position. 2. Set the thermostat to lowest setting. Rinnai Corporation Conversion Manual... - Page 8 100000566(01) 7/2018 U340-1922...
