Pentax ist DL Service Manual

Hide thumbs Also See for ist DL:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
TM
ENGLISH
PENTAX
PRODUCT No. 76570 (Black)
PRODUCT No. 76575 (Silver)
PENTAX Corporation
Overseas Support Section
I
05-07 KN

Advertisement

Table of Contents
loading

Related Manuals for Pentax ist DL

Summary of Contents for Pentax ist DL

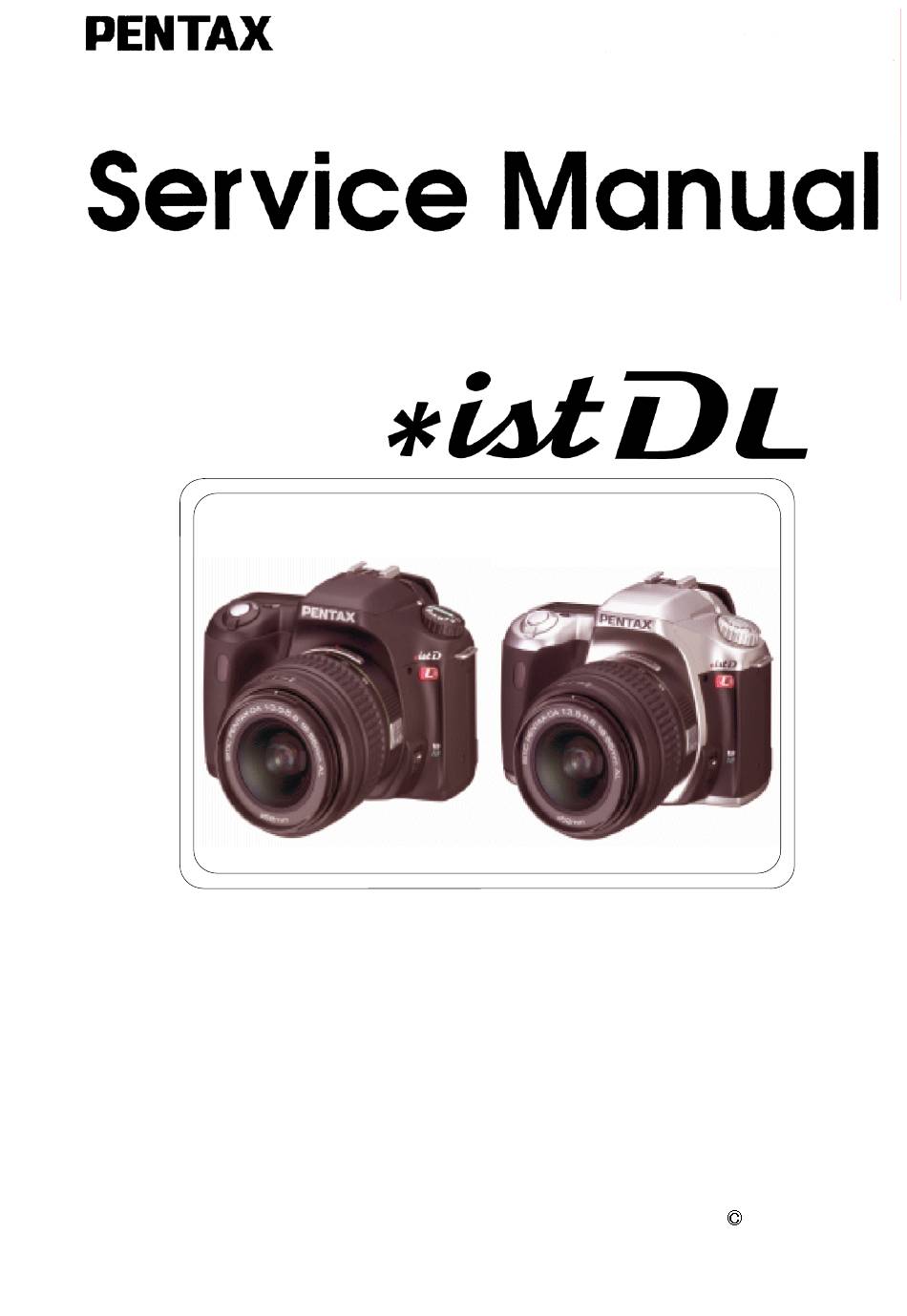

  • Page 1 ENGLISH PENTAX PRODUCT No. 76570 (Black) PRODUCT No. 76575 (Silver) PENTAX Corporation Overseas Support Section 05-07 KN...

  • Page 2: Table Of Contents

    [TABLE OF CONTENTS] PREPARATION …....................Preparation for digital adjustment............... DISASSEMBY AND ASSENBLY................Outline of Disassembly and Assembly..............1. Caution 2. Chart for Assemble, Adjustment and Confirmation......... DISASSEMBLY AND ASSEMBLY PROCEDURES..........1. Disassembly procedure of main body 2. Assembly and Disassembly procedure of Front housing block......15 3.

  • Page 3: Preparation

    PREPARATION The following preparations are required before disassembling and assembling the camera. 1. Prepare the Jigs, tools and testers. (Refer to the Table of Jigs, tools and testers.) 2. Make the preparation for the digital adjustment. (Refer to the Preparation of digital adj.) Preparation of Digital Adjustment [Required equipment] Programmed software 76570 (For Digital adjustment, contained CD-R)

  • Page 4: Disassemby And Assenbly

    DISASSEMBLY AND ASSEMBLY Outline of Disassembly and Assembly 1. Caution (1) Be sure to use the conductive mat and wrist strap to prevent static failure of circuits. lead-free solder. (2) This product is used Surface of solder will be white-tinged color. Solder quickly, because melting temperature is high and so if heat to much, it is possible to damage to PC board.
  • Page 5 (3) FRONT HOUSING BLOCK..................29 (4) 0-Q200 (FLASH PC BOARD, A15 AND A15)............29 (5) A6 (LEFT SHOULDER PLATE)................(6) T901 (LOWER FLEX BOARD).................. (7) 0-A3 (BOTTOM PLATE ASSY).................. 31 (8) T200 (UPPER FLEX BLOCK)................... (9) LCD BLOCK....................... (10) [CONFIRM] CCD BASE PLATE SUPPORT PILLAR..........(11) [ADJUST] SHUTTER SPEED (1/4000)...............
  • Page 6 21-1 PREPARATION....................... 21-2. ADJSTMENT......................(22) [ADJUST] ADJUSTMENT WITH PROGRAMMED SOFTWARE (DIGITAL OPERATION).................... 49 22-1. SETTING OF COMPUTER................... 22-2. SETTING OF *ISTDS.................... 22-3. CONTENS OF ADJUSTMENT AND CONFIRMATION........22-4. PROCEDUR OF ADJUSTMENT................22-5. PROCEDURE OF WDC ADJUSTMENT............... 53 (23) A401 (BOTTOM COVER)..................54 (24) [CONFIEM] FUNCTION CHECK 3 (LAST CONFIRMATION).......

  • Page 7: Disassembly And Assembly Procedures

    DISASSEMBLY AND ASSEMBLY PROCEDURES 1. Disassembly procedure of main body [Preparation] Remove the Hot shoe cover FK Eye cap FL and Battery from the main body. 1. Pop-up the built- in flash (1) For removing top cover, install the batteries to the camera and turn on the camera then pop-up the flash by pressing pop-up button.
  • Page 8 3. 0-A301 (Top cover) (1) A73 (TY screw x2 4.5mm) --- Removed at section 1.- (2) (2) A69 (TY screw 3.5mm) (3) A72 (Screw x2 12mm) (4) A73 (TY screw) (5) TY-CNL-D 1.7x6.5 (Inside of Battery chamber) ⑥ (6) Lift up top cover [Caution] Be careful short and electric shock when handling the camera...
  • Page 9 (8) Unsolder 4 lead wires (Blue, Green, Black, Brown/Q100) (9) Pull out flex board from connector (T51) ⑧ (10) Unsolder 4 lead wires (Pink, purple, Black, Brown) ⑩ (11) 0-A301 (Top cover) ⑫ (12) M311 ⑨ * Washer (W7,t=0.15) attached on M311 for adjustment 4.
  • Page 10 5. A150 (Front cover) (1) A73 (TY screw x2 4.5mm) (2) CNL-D 1.7x2.5 6. A201 (Back cover) (1) Open the SD card cover. (2) A69 (TY 3.5mm) (3) Remove A212 (4) Disconnect terminal side of rear cover ① ② ④ ③...
  • Page 11 7. 0-T100 (Main PC board) (1) Black Tape (6x15) x4 ① ③ ④ ⑤ (2) Lead wire x2 (Red, Black / Q200) (3) Lead wire x2 (Red, Black / A14,A105) (4) Lead wire x3 (Blue,Brown,Orange/ T200) (5) Lead wire x2 (Pink, Purple / G100) (6) Lead wire x2 (Gray, Orange / S300) (7) Lead wire x2 (Red, Black / S250）...
  • Page 12 8. 0-T600 (CCD block) (1) CNL-D1.7x2.5 x3 ① (2) 0-T600 [Note] After removing 0-T600, attention to shutter curtain for handling ② 9. LCD block (LCD Panel) (1) Peel off release SW flex and Av SW flex from LCD block double stick tape. (2) TY-CNL-D1.7x4.5 x3 ②...
  • Page 13 10. T200 (Upper flex block) (1) Lead wire x5 (Red, White, Black, Green, Blue / E000) (2) Unsolder land x4 (T71) (3) TY-CNL-D1.4x2.0 ① ② (4) Peel off flex from DT (5x5) around remote control receiver. (5) CNL-D 1.7x1.8 x2 ⑥...
  • Page 14 12. T901 (Lower flex board) (1) Lead wire x5 (Black, Gray, Red, Orange, Blue) (2) Lead wire x4 (Black, Red, Orange, Green) (3) Lead wire x2 (Brawn, Yellow) (4) Land x13 (M100) (5) Land x7 (T301) (6) T901 (7) TY-CNL-D1.7x3.5 (8) A141 13.

  • Page 15: Front Housing Block

    15. Front housing block (1) Supply DC2-3V to 0-S250 (Mirror motor). (Positive (+) on Red wire) Set the front housing block to mirror up position. (2) TY-CNM2.0x5.0 x6 (3) Remove main plate and battery chamber from front housing block. 16. 0-E000 (Shutter block) ①...

  • Page 16: Assembly And Disassembly Procedure Of Front Housing Block

    2. Assembly and Disassembly procedure of front housing block Disassemble the front housing block in reverse order of assembly procedures according to “Note of disassembly”. Assembly procedures Front Housing Block B65 x2, B41, M120, M18, B68 B58 x2, B59, TY-CNL-G1.7x2.0 0-B52、B66 (shaft) --- Apply Dia bond 1663 at center of shaft about 1cm wide for fix B52.
  • Page 17 3. 0-G100 (1) Apply G126 at 11 positions and apply L115 at one position. L115 (2) Install B20 to B11. G126 (3) B11--- Hook spring to shaft of mirror sheet. [Note] Caution for come off spring. (4) B19 (5) B10 (6) B21 (7) Install B17 to B9.

  • Page 18: 0-G100

    (17) Clean code plate by solvent and apply G151. (17) (18) Latch the lever of G100 while pushing (18) down the sliding plate. (19) G100 --- Surely install G100 without any gap between plate. (19) (20) TY-CNL-D1.7x3.0 x4 (20) [Notice for Disassembly] Set the mirror seat at top end position before removing 0-G100. 1.

  • Page 19: A104

    4. [CONF] Checking the mirror function [Required equipment] Power supply (1) Confirm the following items while applying DC3V to the mirror motor. (Red wire: Positive) 1) The mirror seat must be moved smoothly without noise. 2）The shutter charge lever (b) and sliding plate (a) must be moved smoothly and surely go up and down.
  • Page 20 6. [ADJ] Positioning 1 and 2 Mirror [Required equipment] 1 Mirror angle (45°) adjusting jig, Mirror angle adjusting jig for 27830, Mirror positioning scope *The manner of adjusting is the same as the other MZ-cameras. Adjust the desired value of Y axis to ±0.

  • Page 21: M301

    7. 0-L101,L2 [CAUTION] Confirm there is neither dust nor scratch on 0-L101 and L2. (1) M3 ④ (2) 0-L101 --- Apply super X (Black) to the mark with ③ (3) M12 x 2 (4) M9 ② (5) TY-CNL-D1.7x3.0 x3 ① (6) Down the focusing screen frame (0-M4) by releasing the hook portion.

  • Page 22: 0-O100

    9. [ADJ] Viewfinder focus and parallax [Required equipment] 50mm lens, Collimator, Focus master lens [Preparation] Adjust the diopter by the diopter adjustment lever. *If AF motor is installed (0-S300), set the AF mode switch to MF position. (upper position) 9-1. Parallax [CAUTION] Confirm that the Pentaprism must be installed securely.

  • Page 23: Preparation

    11. [ADJ] Viewfinder Indications [Required equipment] SD card for confirmation x2 (For setting test mode ON and OFF), resistor x1 (Approx.200Ω）,Power Supply (8V/3A), ampere meter, DC cord (Jig), 0-T100, connecting flex (connect cable side), Video cables, TV monitor. 11-1.Preparation (1) Connect the DC cord to the DC power supply and set voltage to DC6.5V (3A). (2) Connect the video cable to the TV monitor.

  • Page 24: Adjustment

    11-2. Adjustment Set the test mode to disable SD card cover switch on T100. (1) Insert SD card for test mode ON to T100. (Set write protect switch to unlock position) (2) Connect DC code to T100. Make sure there is no short circuit. (Consumption current: 100~200mA) ②...

  • Page 25: 0-S300

    12. 0-S300 (1) 0-S300 (2) TY-CNL-D1.7x4.0 x2 Apply screw lock [Note of Disassembly] When removing 0-S300, while pressing mount lock lever and remove from upper side of motor. 13. [ADJ] AF Joint stroke [Required equipment] Vernier calipers *If AF mode SW lever (A115) is installed, set the AF mode SW lever to AF position. (1) AF coupler (0-S300) must be projected from the mount surface by 1.2 mm or more.

  • Page 26: Assembly Procedure Of Main Body

    16. 0-T940 (1) 0-T940 (2) TY-CNL-D1.7x3.0 (3) A115 (4) TY-CNL-G1.7x2.5 (5) Arrange four lead wires with DT (4x15). (6) T64 (PT 11x20) [Note of Disassembly] When removing A115 and T940, Set AF-SW at AF position. 3. Assembly procedure 1. Main body + Battery housing (1) A13 Battery housing and relating parts.

  • Page 27: 0-E000 (Shutter Block)

    2. 0-E000（Shutter block） (1) 0-E000--- Check there is no dust, scratch. (2) A70 – x3 ② ① 3. Front housing (1) Apply DC 1~2V to the mirror motor, and set mirror up position. (Red --- (2) Attach body plate to the mirror housing. * Pay attention the lead wires.

  • Page 28: A6 (Left Shoulder Plate)

    4. 0-Q200 (Flash PCB)/A5/A15 (1) 0-Q200/A5/A15 ① ② * Arrange the lead wire as shown figure right. ③ (2) TY-CNL-D1.7x4.0 (3) CNL-D1.7x2.5 5. A6（Left shoulder plate） (1) A6 --- Pay attention the position of lead wires. (2) TY-CSM1.7x4.0 x 3 (3) TY-CNL-D1.7x4.0 (4) CNL-D1.7x2.5 6.
  • Page 29 ⑨ ⑦ ⑥ ⑧ Solder lead wire and lands (6) 7 lands -- (T301） (7) 13 lands --（M100） (8) Brown, Yellow -- (T40) (9) Black, Red, Orange, Green -- (T31) (10) Black -- A105 Gray, Red, Orange, Blue -- T72 ⑩...

  • Page 30: Preparation

    9. [ADJ.] Shutter Speed (1/4000sec.) *Measure the shutter speed according to the following points whenever 0-E000 or 0-T100 is replaced. *If using reflection type of shutter tester, skip this adjustment and adjust at [21.ADJUSTMENT with Programmed Software (SLR operation)] section. [Required equipment] Programmed software 76570 (for SLR operation), Computer and related items, I/F buffer cable for 27250 (MZ-5),SD card (For test mode ON), Shutter tester (measurable 1/4000), AC adaptor, Flexible board for 76450, Two lead wires (130mm),...

  • Page 31: Adjustment

    9-2. Preparation 2 ( Consumption current, Function check) (1) Connect DC code to the power supply and set DC 6.5V. (3A) Video (2) Connect Video cable to TV monitor and T100. DC IN (3) Connect DC code to T100. [Caution] Make sure that there is no short circuit. (~150mA) (4) Disconnect DC cable and insert SD card for test mode ON to T100.

  • Page 32: 0-T600 (Ccd Block)

    10. 0-T600 ( CCD Block ) [Preparation] Attach the body mount cap to the camera to prevent damage of SI-LED. [CAUTION] Confirm there is neither dust nor scratches in the surface of CCD of T600. (1) Install 0-T600 to the main body while matching it to two positioning guide pin so that there is no space between them.
  • Page 33 4) Fix LCD block --- TY-CNL-D 1.7x4.5 x3 ④ 5) Attach flex board of release SW and Av SW with DT(5x5) LCD block ⑤ DT(5x5 O207 13. 0-T100（Main PCB） (1) Install T100 to the body while connecting 2 connectors (T200, T600) 0-T100 (2) TY-CNL-D1.7x4.0 x2 ④...

  • Page 34: Preparation

    ⑭ Solder lead wires ⑨ ⑪ ⑩ (8) Red, black -- Q200 (9) Red, Black -- A14 (10) Pink, purple – G100 (11) Blue,Brown,Orange –T200 (12) Gray, Orange – S300 (13) Red, Black -- S250 (14) Arrange lead wires with BT (15) Yellow,Black (T10) Red, White (N300) ↓...
  • Page 35 (5) Install bottom cover and battery cover (5mm) (TY 4.5mm) 14-2. Power check (1) Connect DC code to the Regulated DC power supply, set DC 6.5V (3A) (2) Connect DC code to the camera (With this condition, the consumption current should be 40~50mA) (3) Disconnect the DC code from camera 14-3.

  • Page 36: Setting Test Mode

    PENTAX *IST DS UPDATING DSP FIRMWARE (5) Disconnect the video cable and the AC adapter from the camera SECTOR** >> PROGRAM when POWER OFF is displayed. PENTAX *IST DS _____________ UPDATING DSP FIRMWARE NEVER POWER OFF ････ COMPLETE ････ VERSION 1.00.00.10 POWER OFF 14-4.

  • Page 37: A201 (Back Cover)

    (2) Connect AC adaptor to the camera. (3) Remove SD card from the camera. (4) LCD display should not light up when press release button half way. (5) Remove AC adaptor, Top cover, Bottom cover and battery cover from the camera. (6) Unsolder the Main SW land on T200.

  • Page 38: A150 (Front Cover)

    16. A150 (Front cover) (1) A73（TY screws 4.5mm x 2） (2) CNL-D1.7x2.5 (3) T63 17. A161 Side cover ( Front） (1) Set the AF_SW to AF (down position) and the attach to the body. (2) Install A161 as shown figure below. ②...

  • Page 39: 0-A301 (Top Cover)

    (3) [CONF] The photo sensor must be positioned at the center of AF frame as shown in the figure below. Tolerance: 0.0～1.0mm : Bonding position ⑤ Center position of sensor Center position of Viewfinder ④ Photo sensor (0-J100) AF frame for spot metering (φ2.5) J100 (4) [ADJ] Loosen the screw, and then adjust the position of sensor.

  • Page 40: Preparation

    (9) A73（TY Screw、4.5mm x 2） ⑬ (10) A69（TY Screws, 3.5mm） (11) A72（Screws 12mm x 2） (12) A75（TY Screw） (13) TY-CNL-D1.7x6.0（Battery chamber） (14) Check the function of AE-L button ⑨ ⑩ ⑫ ⑪ ⑭ 20. [CONF] Function check 2 [Required equipment] CF card 2pcs (for SW testing and Taking picture), Battery adaptor, Regulated DC power supply (8V/3A), DC cord, Circuit tester, Lens for checking (FA50mmF1.4), Cable switch CS-205, Flash for checking (AF360FGZ etc) 20-1.
  • Page 41 20-4. Exposure mode, release function (1) Attach the lens to the camera and set the AF_SW to MF (2) Set the mode dial to P (3) TV, AV data should be display on the LCD and viewfinder when press shutter button halfway (4) Confirm the display on the LCD and viewfinder while changing the mode dial (5) Attach cable switch to the camera, and then check the shutter release function.
  • Page 42 20-6．Shooting, Playback Function Never install or remove the CF card while turning the camera’s power ON as this may cause the CF card or camera to be damaged and become unusable. *When replacing T100, confirm this section after adjusting [ADJUSTMENT WITH PROGRAMMED SOFTWARE (SLR OPERATION)] (1) Turn the main SW to OFF and insert the CF card (for Taking picture) into the camera.
  • Page 43 20-9. Aperture Control, CCD (1) Attaching the lens to the camera. Set the focus mode and Capture mode to MF and B. (2) The aperture of lens must change similarly when the aperture value (Av) is set in opening, the middle, and the minimum with the Av dial.

  • Page 44: Setting Of Computer

    21-2. Adjustment (1) Run the programmed software (for 76570), and then adjust the camera according to the instructed on the screen. About the flow of adjusting, refer to the programmed software flow chart. Product select menu（Select *istDL）→ 76570 test program*→ Main menu** → EPROM checking（START）→...

  • Page 45: Setting Of *Istds

    22-2. Setting of *istDL (1) Attach the master lens and Diaphragm set ring F8 to the camera. (2) Set mode dial to [M] and focus mode to [MF] 22-3. Item of adjustment 0: [Initialization] 1: [Product Data] Setting product information 2: [CCD Information] Setting CCD information 3: [Pre-Process Gain] Pre-process gain adjustment 4: [ISO Base Gain] ISO base Gain adjustment...
  • Page 46 (8) Select「CCD Input」 *When replaced T100 or T600 ----- Select “Manual-ID” *Other than above ----- Select “Auto” (9) When select [Manual-ID] Input CCD ID No 2 times Input ID No. ↓ Press “Execute” button or ・ Manual-ID “Enter” key ↓ Input ID No ↓...
  • Page 47 (11) When the screen display as follows, the adjustment is completed. (12) Double-click hot plug icon of the taskbar at the lower right of a desktop, and then follow "safe removal of hardware. Turn off the camera and disconnect the camera. [Error massage] * The following display appear when the mode dial of the camera is not set on [M].
  • Page 48 22-5. WDC Adjustment procedure [NOTE] CCD white pixel defect compensation item only can be adjustable by this procedure. (1) Connect the AC adaptor to the camera. (2) Connect the camera to the computer by the USB cable (I-USB17). (3) Turn the main switch ON, and then confirm that the camera is recognized as a [Removable Disk] under [My Computer].

  • Page 49: A401 (Bottom Cover)

    23. A401 (Bottom cover) (1) Attach A167 (Spring), 0-A165 (Cover). (2) Attach battery cover to the bottom cover. * Keep battery cover open. (3) Install bottom cover to the body while Jointing the shaft and bottom cover and holding terminal cover. (4) A67（Screws 5mm x4）...

  • Page 50: Confirmation Of The Metering Function

    24. [CONF] Final function check *Execute [20. Function check 2] if necessary. 24-1. Confirmation of the Metering function [Required equipment] Light source (Shutter tester), FA50mm F1.4 (1) Attach the lens (FA50mm) to the camera and set the aperture to the A position. (2) Set the camera as follows.

  • Page 51: Confirmation Of White Balance

    Correlation table of EV with Y: －1.0 －0.5 ±0 ＋0.5 ＋1.0 [NOTE] The standard is applied only when the camera is set to the condition as mentioned above. 24-3. WB ( Confirmation of White Balance) [Required equipment] Computer (for Digital adjustment), AC adaptor (D-AC10), USB cable (I-USB17), CF card (for taking picture), FA50mm F1.4, A light (2856 K°), Color checker (Macbeth Chart or equivalent), Fluorescent lamp (White 4244K°), Fluorescent lamp (Neutral...

  • Page 52: Confirmation Of The Battery Exhaustion Warning

    24-4. Confirmation of the Battery Exhaustion Warning [Required equipment] Battery adaptor, Regulated DC power supply (1) Connect the battery adaptor to the DC power supply, and set the voltage to DC 5.50V (3A). (2) Attach the battery adaptor to the camera. (3) Turn the main SW to ON.
  • Page 53 30° [Supplement] If focus is NG, There is possibility with following factors. AF focus position error or adjusting error. (Confirm AF focus position (FI) : NG) → Adjust positioning of 1 and 2 Mirror, AF adjustment by programmed software (Part of SLR mechanism) Height of the CCD Base Plate Support Pillar is NG →...

  • Page 54: Default Setting

    there is a possibility that dust enters into the inside of CCD. (1)Cut the Clean wipe-P about 1/4 (50x105mm) and hold the Clean wipe-P 7-8mm width. (2) Turn the main SW to ON and remove the lens. Frame (3) Set [Sensor Cleaning] on the Main menu to ON. (4) Select [Mirror up] on the [Sensor Cleaning] screen by the four-way controller.

  • Page 55: Fw Firmware

    FW：Firmware Checking Firmware Version 1. Checking FW version for customer (1) Turn the main switch to ON while pressing MENU button. The firmware version for customer VER: x. x x will be displayed on the LCD monitor for 5 seconds. 1-2.

  • Page 56: Updating Firmware Version (2)

    (7) Turn the main switch to OFF when the following message [POWER OFF] is appeared. (Updating is completed) (8) Insert the SD card into the camera again then PENTAX *IST DL UPDATING DSP FIRMWARE turn on the power condition with opening SD SECTOR** >>...

  • Page 57: Technical Information

    TECHNICAL INFORMATION Battery consumption current Condition: Lens [FA lens, A position], each mode and setting is default setting. Meaning of table: Lens --- O: With X: Without SD card --- O: With X: Without *Column of Battery DC5.5V - The value is measured with used battery adaptor. *5, 6 and 7 are peak value.

  • Page 58: Block Diagram

    Block diagram P_GND J1013 EEMG J1012 S350+ J1008 SCOM J1009 SCOM J1010 S250+ J1011 J1022 J1023 INTX Reset_SW J1015 D_GND (T10) J1014 J1016 D_GND J1017 AGND AOUT2 AOUT1 A_GND VREF J100_LEDA J100_LEDK LED-A J1024 LED-C J1025 ← CKV ← STV VVDD ←...

  • Page 59: Table Of Error Code (Digital Adjustment)

    Table of Error Code (Digital adjustment) The error code is displayed as “aa-xx-xx-yy-zz” (example: 03-07-01-07-00) to explain the detailed error. aa : Adjustment item when error is happened xx : Not use in service yy : Type of error zz : Contents of error (aa) (bb) (xx)

  • Page 60: Ae Program Line And Apex Chart (Iso 200)

    AE Program line (normal) and APEX chart (ISO200) * Standard program exposure mode ( FA 50mm F1.4) Second 76570EM 59...

  • Page 61: Program Software Flow Chart (Slr Function)

    【76450 PROGRAM SOFTWARE FLOW CHART】 【76570 PROGRAM SOFTWARE FLOW CHART】 ***** 76570 TEST PROGRAM ***** TURN MAIN SW OF BODY ON. TURN SW OF I/O IF BOX ON. AFTER CONFIRMING ABOVE, PRESS KEY [ 1 ]. AFTER REPLACING MAIN PC BOARD, PRESS KEY [ 2 ]. ＊When replacing T100, do the writing below at once.
  • Page 62 ***** MAIN MENU ***** [ 2 ] EXPOSURE ADJUSTMENTS ***** SELECT AE TYPE ***** TYPE 1 ( LV6,8,10,12,16 ) ---- [ 1 ] TYPE 2 ( LV6,9,12,15 ---- [ 2 ] ***** 76570 < A GROUP > ***** BV ADJUSTMENTS --->...
  • Page 63 ***** MAIN MENU ***** [ 3 ] AF AND RELATED ADJUSTMENTS ***** AF ADJUSTMENT MAIN MENU ***** CCD POSITION ADJUSTMENT ---> [ 1 ] AGC LEVEL ADJUSTMENTS ---> [ 2 ] MONITOR OFFSET ADJUSTMENT ---> [ 3 ] UNIFORMITY ADJUSTMENT --->...
  • Page 64 ***** MAIN MENU ***** ***** < B GROUP > ***** ***** CCD POSITION ***** [ 3 ] CCD POSITION CHECK [ 4 ] CCD FOCUS ADJUSTMENT ***** CCD POSITION ADJUSTMENT ***** ***** CCD POSITION ADJUSTMENT ***** ** POSITION CHECK ** ** CCD FOCUS ADJUSTMENT ** MOUNT F ZOOM LENS 35-80 ONTO CAMERA.
  • Page 65 ***** MAIN MENU ***** ***** < B GROUP > ***** [ 2 ] AGC LEVEL ADJUSTMENTS [ 3 ] MONITOR OFFSET ADJUSTMENT [ 4 ] UNIFORMITY ADJUSTMENT [ 5 ] ***** AGC LEVEL ADJUSTMENT ***** SATURATED OUTPUT MOUNT FOCUS MASTER LENS ONTO CAMERA. AND TEMP ADJUSTMENT SET LIGHT SOURCE TO LV 12.
  • Page 66 ***** MAIN MENU ***** ***** < B GROUP > ***** [ 6 ] FOCUS ADJUSTMENT ***** FOCUS ADJUSTMENT ***** AF CHART NO1 HORIZONTAL POSITION AND ADJUSTMENT --- [ 1 ] HORIZONTAL ADJUSTMENT --- [ 2 ] VERTICAL POSITION AND ADJUSTMENT --- [ 3 ] VERTICAL ADJUSTMENT --- [ 4 ]...
  • Page 67 ***** MAIN MENU ***** [ 4 ] NUMBER OF REPAIRS [ 6 ] BATTERY LEVEL [ 7 ] SHUTTER SPEED ADJUSTMENT ADJUSTMENT ***** NUMBER OF REPAIRS ***** ***** SHUTTER SPEED ADJUSTMENT ***** * SET DRIVE MODE SW O NUMBER OF REPAIRS = 0 - - - > 1 SHUTTER TESTER FOR 1/4000 SEC.

  • Page 68: Information Of Jigs, Tools And Testers For *Istds

    Information of Jigs, Tools and Testers for *istDL Order No. ＊ Exclusive use for *istDL (76570) Program soft for 76570（For SLR, supply with floppy disk） No.95901- P403-00A Program soft for 76570（For digital, supply with CD-ROM） - P403-00B Battery adaptor for 76450 - D23 －...
  • Page 69 Master lens for 76180 (For digital adjustment) -D20 *If you do not have D20, you must order with P402-00B DC code for 76180 -D21 Clean wipe-P -A14 (60 boxes) - A15 (1 box) AC adaptor ( D-AC10 ) Resistor x1 (150-250Ω: for viewfinder indication adjustment) Personal computer (Windows 2000 or XP, support USB) Light source (LB3300 or equivalent, A light color temperature:2,850k°±10, brightness: LV11.00) Color temperature tester (for correction of light source)

  • Page 70: Method For Making Temporally Bottom Cover

    Method for making temporally bottom cover Preparation: A401 bottom cover (1) Cut off part of bottom cover as shown in fig *3 places marked with *1 place marked with φ7 Method for making flash pop-up jig This is the same jig as MZ-7 Material of Jig --- Recommend to use magnetic card such as telephone card.

  • Page 71: Af Confirmation Chart And Scale

    ◎ ◎ ◎ ◎ ◎ ◎ Ｃ※◎◎E AF confirmation chart and scale These charts are for “confirmation of AF focus by ◎ ◎ ◎ ◎ ◎ ◎ Ｂ※◎◎E taking picture”. ◎ ◎ ◎ ◎ ◎ ◎ Ａ※◎◎E Scale for focus confirmation → ◎...
