Installation Instructions
Model DB-HR
Detector Base
LINE 1
TO INITIATING CIRCUIT
OF SIEMENS INDUSTRY,
INC. CONTROL PANEL
LINE 2
LINE 1 AND LINE 2 CAN BE EITHER LINE OF THE LOOP.

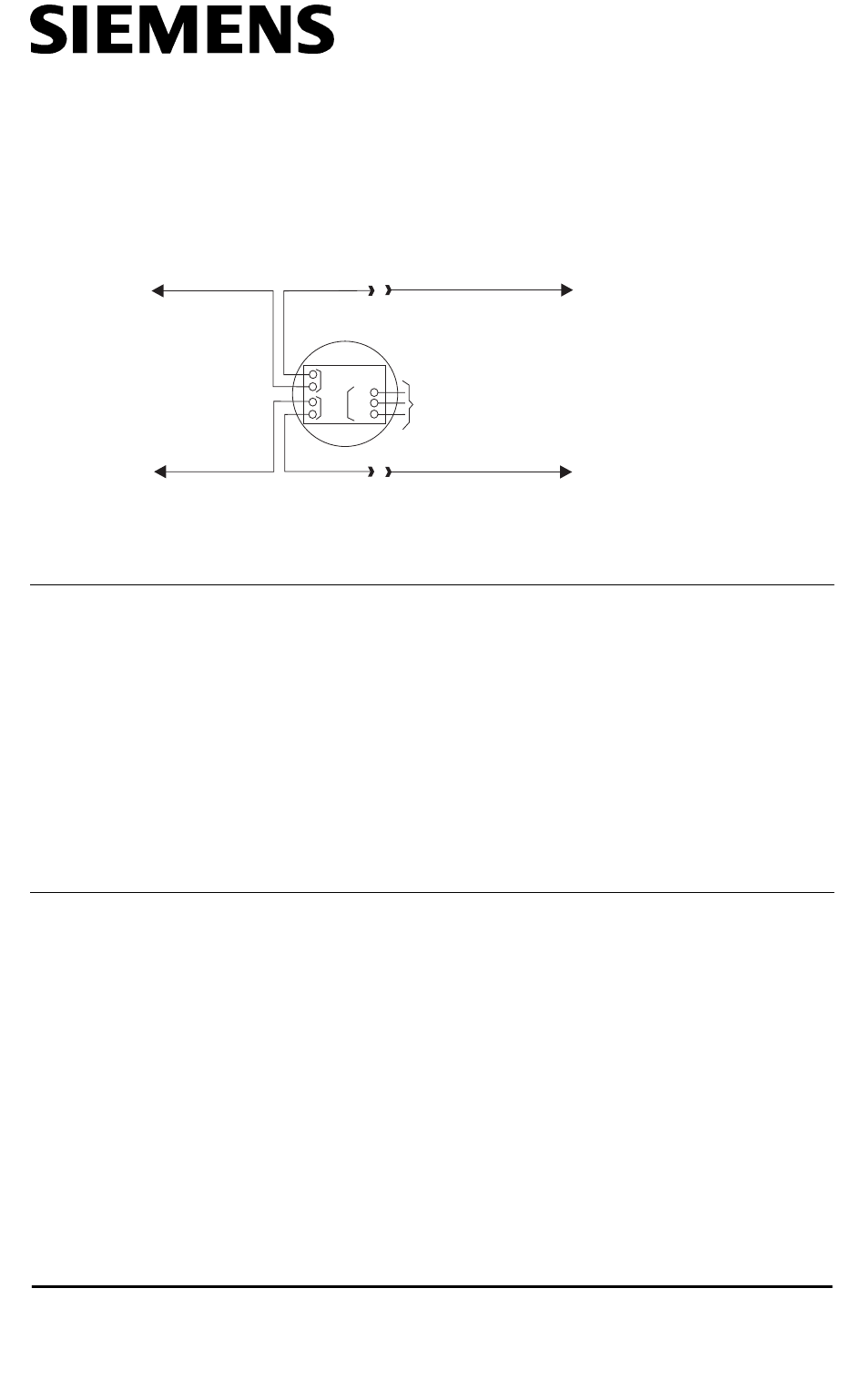

Figure 1
DB-HR Wiring Diagram Using HFP-11 Series and SFP-11 Series Detectors
DETECTOR AND BASE PLACEMENT
Detector and base locations shall follow the drawings provided or approved
by Siemens Industry, Inc. or its authorized distributors. This is extremely
important! The detector placements shown on these drawings were chosen
after a careful evaluation of all facets of the protected area. When drawings
are not available, refer to Detector Placement section of detector Installation/
Wiring Instructions and to NFPA 72, National Fire Alarm Code and CAN/ULC-
S524.
BASE WIRING
The Model DB-HR from Siemens Industry, Inc. is a polarity insensitive detector
base and works with HFP-11, HFPT-11, HFPO-11, SFP-11*, SFPT-11* and SFPO-
11* detectors only. Detectors should be interconnected as shown in Figure 1
and wired to the DLC (refer to DLC Installation Instructions, P/N 315-033090), FS-
DLC (refer to FS-250 Installation, Operation and Maintenance Manual, P/N 315-
049353) or FDLC (refer to FS-250C Installation, Operation and Maintenance
Manual, P/N 315-049589C), as applicable. Line 1 and Line 2 can be either line of
the loop. Note any limitations on the number of detectors and restrictions
on the use of remote devices permitted for each circuit.
*SFP-11, SFPT-11 and SFPO-11 detectors are approved for use in Canada only.
Siemens Industry, Inc.
Building Technologies Division
Florham Park, NJ
P/N 315-033220-5
DB-HR RELAY BASE
REMOTE RELAY BASE
MODEL DB-HR
RELAY*
5
NO
CONTACTS
C
6
3A, 120 VAC
NC
3A, 30 VDC
TO NEXT DEVICE
LINE 1
DO NOT USE AN END
OF LINE DEVICE
*THE RELAY CONTACTS ARE
SHOWN IN THE NON-ALARM/
SYSTEM RESET CONDITION.
TO NEXT DEVICE
DO NOT USE AN END
LINE 2
OF LINE DEVICE
Siemens Building Technologies, Ltd.
Fire Safety & Security Products
2 Kenview Boulevard
Brampton, Ontario
L6T 5E4 Canada
