Installation Guide

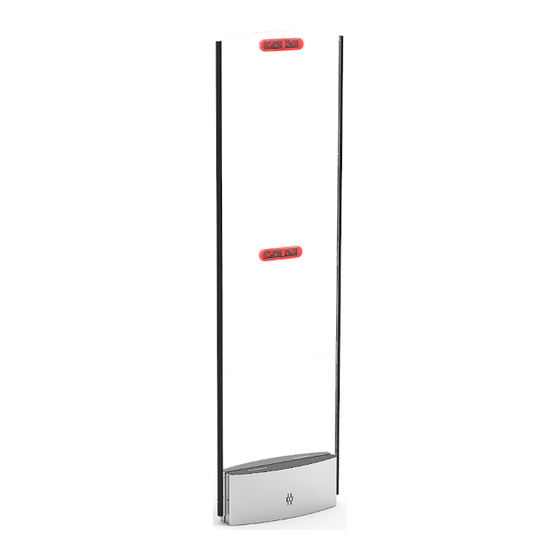

PG45i Detection Gate (9984232)
Your library's collection is a valued community investment. To protect these library resources you
can use the PG45i Library Detection Gates. The gates help you protect your printed materials and
digital media from unintended removal or theft. When someone walks through the gates with a
library item that is not checked out properly an alarm will sound.
Version: 1.14
published on Friday, February 17, 2017

Advertisement

Table of Contents
loading

Related Manuals for Nedap PG45i

Summary of Contents for Nedap PG45i

  • Page 1 Your library’s collection is a valued community investment. To protect these library resources you can use the PG45i Library Detection Gates. The gates help you protect your printed materials and digital media from unintended removal or theft. When someone walks through the gates with a library item that is not checked out properly an alarm will sound.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ....................................2 Technical support ....................................4 Document history ....................................5 Safety Precaution ....................................6 WARNING ........................................7 Declaration of Conformity................................. 7 EU ..........................................7 FCC and IC ......................................7 Product overview ....................................9 Content of Box ....................................9 Power supply specifications ...............................

  • Page 4: Technical Support

    The software / hardware described in this document / file is furnished under a license agreement and may be used only in accordance with the terms of agreement. Documentation copyright notice Any technical documentation that is made available by Nedap Library Solutions is the copyrighted work of Nedap Library Solutions and is owned by Nedap Library Solutions. Disclaimer NO WARRANTY.

  • Page 5: Document History

    Document history Version Date Author Description 12-05-2016 G. Heinen First version of this document 12-05-2016 G. Heinen Replaced picture on front page 24-05-2016 G. Heinen Fixed typos 24-05-2016 R. Heersink Completed marketing check and released for publication 24-05-2016 E. Veurman Edited document properties and system links 04-07-2016 E.

  • Page 6: Safety Precaution

    Safety Precaution  For indoor use only  Installation of these products should be performed by a qualified installation partner.  Do not use the product in damp places.  If you smell smoke or other odors or hear a strange sound, unplug the power cord and contact your dealer.

  • Page 7: Warning

    Declaration of Conformity Hereby, De N.V. Nederlandsche Apparatenfabriek "Nedap" declares that the radio equipment type PG45i is in compliance with Directive 1999/5/EC. The full text of the EU declaration of conformity is available at the following internet address: http://www.nedaplibrary.com (login required).
  • Page 8 (2) Cet appareil doit accepter toute interférence, y compris l'interférences qui peuvent causer un mauvais fonctionnement de l'appareil. Les changements ou modifications n’ayant pas été expressément approuvés par la partie responsable de la conformité peuvent faire perdre à l’utilisateur l’autorisation de faire fonctionner le matériel.

  • Page 9: Product Overview

    Minimum output power: 60W Class2, LPS or ’Limited Power Supply’ rating Accessories The PG45i has some optional accessories. They are listed in the table below, with their Nedap article numbers, which you can use to order the accessories. Photo Article...

  • Page 10: Dimensions

    Dimensions Figure 1 - PG45i gate dimensions *all dimensions are in mm www.nedaplibrary.com...

  • Page 11: Components

    Components The PG45i is based on Nedap Library Solution’s EcoReader, which is an ISO15693 compliant HF RFID reader, specifically designed for libraries. The PG45i has several serviceable parts, which are listed and highlighted below. Number Component Description Mount plate Covers the match PCB and serves as placeholder for the coaxial...

  • Page 12: Connections

    Component Description External power Input connector for the external power supply adapter in Communication Communication cable input coming from the previous PG45i cable in Communication Communication cable output to the next PG45i cable out RF inputs Connected to RF outputs on EcoReader PCB...
  • Page 13 EcoReader PCB Figure 3 - EcoReader PCB Number Component Description LAN connector RJ45 connector for ethernet USB connector USB service connector Tx Led LED indicator for Tx Power. Off=power on, On = power off...

  • Page 14: Installation

     A maximum of 16 PG45i gates can be connected to each other  A maximum of 3x PG45i gates can be powered from one power supply. When more gates are used, power supplies must be added.  In case of any doubt about the local wiring, consult a local licensed electrician and make sure that it meets local and national codes.

  • Page 15: System Overview

    Figure 4. PG45i environment System overview In a PG45i system the gates are connected for communications and power. The first gate is called the master and each subsequent is called a slave. The gates have to be configured as such, for the system to work properly.

  • Page 16: Customer Counting Overview

    When more than four PG45i gates are used in a system, like the example in Figure 6, an extra power supply must be added to every third gate, which make this gate a ‘powered slave’. Check the table in Appendix A for larger setups.
  • Page 17 A PG45i system is designed in such a way that the aisle numbering is always the same (this is done so all systems behave and function in the same, predictable way, which simplifies troubleshooting).
  • Page 18 Figure 10 - aisle numbering for customer counting, master left, transmitting. Master position: ‘Left and CC TX points right’ Library building master slave slave Aisle 1 Aisle 2 Library entrance Outside library Figure 11 - aisle numbering for customer counting, master left, receiving. Master position: ‘Left and CC RX points right’ www.nedaplibrary.com...
  • Page 19 Library building slave slave master Aisle 1 Aisle 2 Library entrance Outside library Figure 12 - aisle numbering for customer counting, master right, transmitting. Master position: ‘Right and CC TX points left’ Library building slave slave master Aisle 1 Aisle 2 Library entrance Outside library Figure 13 - aisle numbering for customer counting, master right, receiving.

  • Page 20: Testing The Customer Counting Direction

    Testing the customer counting direction The Pg45i can show if the direction for the gates in configured correctly without having to use special software. Press the test button for approximately 1 second on the Eco Reader (Figure 14). The Eco Reader can be found in the foot (Figure 20). All lights will light up, and stay on. The test mode is now active.

  • Page 21: Mounting The Gates

    Please consult your local installation regulations on how to mount the PG45i gates. With each PG45i gate a communication cable of 2m/79” is delivered. Make sure that this cable is either fitted through floor tubing or a floor mounted threshold.
  • Page 22 1. Use the mounting frame set and two mounting plates to position the gates in the building. Use a laser pointer to align the gates to the building. Refer to Figure 16. Figure 16 - mounting frame set and mounting plates Figure 17 - Holes that need to be drilled in floor 2.

  • Page 23: Cabling The Gates

    Locate the master gate and the side with the match PCB. Note: the match PCB is on the side of the PG45i with the nameplate sticker Connect the power supply to the power supply connector on the match PCB. See Figure 19 for its location.
  • Page 24 1. Locate the side with the match PCB of the slave Note: the match PCB is on the side of the PG45i with the nameplate sticker 2. Connect the incoming communication cable of the previous master or slave to the CAN IN connector on the left.

  • Page 25: Settings Configuration

    During first installation only the settings of the master will be shown, since it is not actually configured as master and therefor it will not show settings from its slave. A PG45i gate leaves the factory configured as slave. In this way only the master needs to be set to ‘master’ during installation.
  • Page 26 4. Reconnect with RfTest.Lite to the master and retrieve its settings. The master’s and all slave’s settings appear now. 5. Navigate to ‘GATEWAY>Settings>Customer Counting>Serial CC only’ and configure the location and orientation of the master for correct customer counting. See paragraph ‘Customer counting overview’...
  • Page 27 6. Navigate to ‘Settings>RFID>Signal’ and set the Tx Power to 4 watt 7. Navigate to ‘Settings>Alarm>Alarm’. Make sure Alarm is enabled, select the alarm type, select the action on an alarm, set the buzzer volume and configure the activation time of the relays, lamps in the gate and buzzer. The buzzer is limited in hardware to a activation time of max.
  • Page 28 Go to the settings window and navigate to ‘GATEWAY>Information>Network’ 10. To configure the IP address, click Tuning to retrieve the settings and for the master gate navigate to ‘Settings>Communication>TCP/IP’ and in the window set all the appropriate settings 11. To configure the Librix Online connection, make sure that an EcoGate device in Librix Online is created and its GUID is written down.

  • Page 29: System Operation

    System operation When the system is configured correctly, the master and slaves should start multiplexing. On the EcoReader this can be seen by a blinking ‘TX LED’ (see Figure 3) and on the match PCB by a blinking antenna selection led (see Figure 2). When an alarm-enabled tag is held next to each gate, an alarm should be detected at this point.

  • Page 30: Appendix A

    APPENDIX A. Amount of gates in Amount of power Gates (counted from master, where master = 1) your setup (aisles) supplies needed that need extra power supply 1 (0 aisles) 2 (1 aisles) 3 (2 aisles) 4 (3 aisles) 1, 3 5 (4 aisles) 1, 3 6 (5 aisles)

  • Page 31: Frequently Asked Questions

    Can I mount the gates close to other objects? Answer: Although the PG45i gates were developed to be as insensitive as possible to outside disturbances, Nedap advises to follow the recommended distances from metal objects as outlined in this document. Nearby automatic doors or metal frames might cause de-tuning of the gates, which means they need to be tuned.
  • Page 32 Answer: Detection Nedap PG45i gates are designed to not be affected by their surroundings, including any metal floors, when it comes to detection. Besides that, a well-grounded metal floor provides a ground for the gate which improves the balance of the gate. A well balanced gate will radiate the power that is supplied to it, instead of reflecting it back to the reader.
  • Page 33 If the CC module is not connected correctly, the EcoReader inside the PG45i does not know it is in a PG45i gate and it will not act accordingly. If this is the case please check if: the connectors from match PCB to customer counter modules are connected correctly if the customer counter module is defective.
  • Page 34 Nedap Library Solutions | www.nedaplibrary.com | info@nedaplibrary.com www.nedaplibrary.com...
