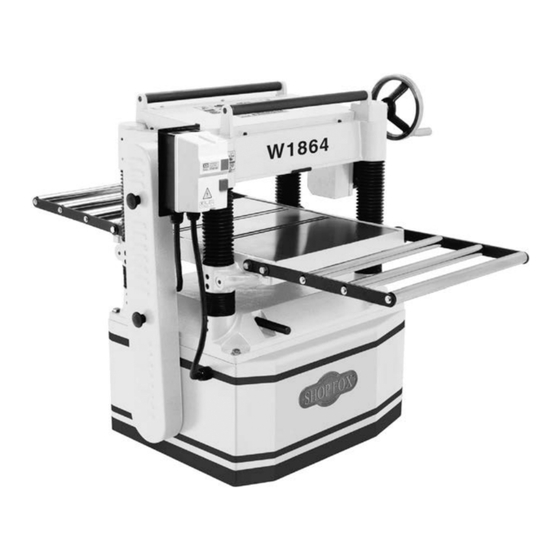

Shop fox W1864 Owner's Manual

Shop fox W1864 Owner's Manual

20" planers; for models manufactured since 02/19
Hide thumbs
Table of Contents

Advertisement

Quick Links

 

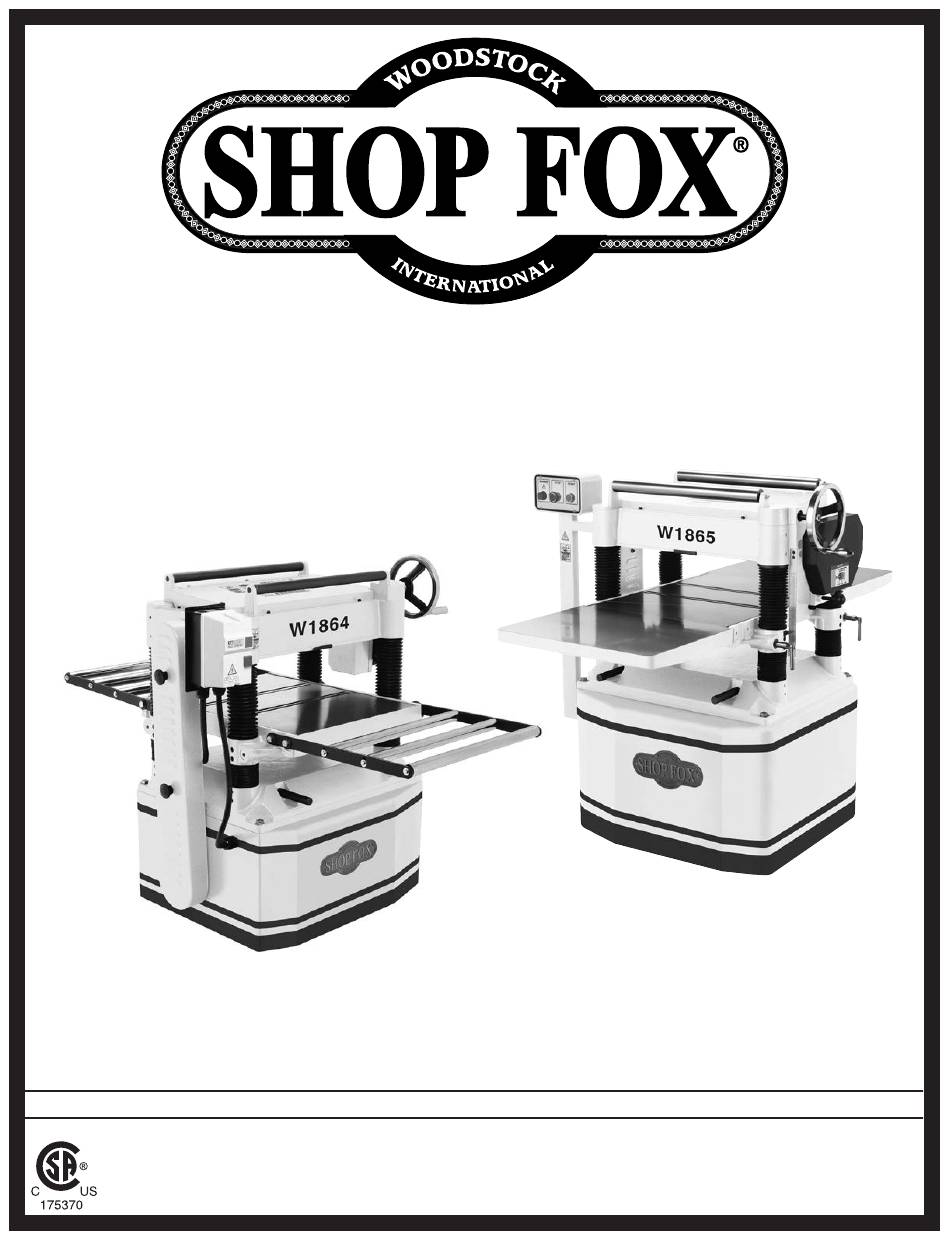

MODEL W1864 & W1865
20" PLANERS
OWNER'S MANUAL
(FOR MODELS MANUFACTURED SINCE 02/19)
Phone: (360) 734-3482 • Online Technical Support: techsupport@woodstockint.com
COPYRIGHT © DECEMBER, 2018 BY WOODSTOCK INTERNATIONAL, INC. REVISED FEBRUARY, 2019.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
#WK20085  Printed in Taiwan

Advertisement

Table of Contents
loading

Related Manuals for Shop fox W1864

Summary of Contents for Shop fox W1864

  • Page 1   MODEL W1864 & W1865 20" PLANERS OWNER'S MANUAL (FOR MODELS MANUFACTURED SINCE 02/19) Phone: (360) 734-3482 • Online Technical Support: techsupport@woodstockint.com COPYRIGHT © DECEMBER, 2018 BY WOODSTOCK INTERNATIONAL, INC. REVISED FEBRUARY, 2019. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. #WK20085  Printed in Taiwan...
  • Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 3: Table Of Contents

    Checking Gearbox Oil Level ....22 Test Run .......... 23 Main ..........60 Recommended Adjustments ....24 W1864 Stand & Motor ......63 W1865 Stand & Motor ......65 OPERATIONS........25 Table & Base ........67 Operation Overview ......25 W1864 Labels &...

  • Page 4: Introduction

    Model W1864/W1865 (For Machines Mfd. Since 02/19) INTRODUCTION Machine.Description Models W1864 and W1865 are CSA-certified, 5 HP, 20" planers with the following differences: • Model.W1864 has a 4-knife cutterhead, magnetic ON/OFF switch mounted to the headstock, and roller extension tables.

  • Page 5: W1864 Machine Specifications

    Switch Type..........Magnetic Switch w/Thermal Overload Protection Motors Main Horsepower....................5 HP Phase....................Single‐Phase Amps......................23A Speed....................3450 RPM Type................. TEFC Capacitor‐Start Induction Power Transfer ................Triple V‐Belt Drive Bearings............... Shielded & Permanently Lubricated Centrifugal Switch/Contacts Type..............External Model W1864 Machine Specifications, Page 1 of 3...
  • Page 6 Other Country of Origin ..................... Taiwan Warranty ....................... 2 Years Approximate Assembly & Setup Time ..............2 Hours Serial Number Location ..............ID Label on Upper Cover ISO 9001 Factory ....................Yes Model W1864 Machine Specifications, Page 2 of 3...

  • Page 7: W1865 Machine Specifications

    Model W1864/W1865 (For Machines Mfd. Since 02/19) MODEL W1865 20" PLANER WITH SPIRAL CUTTERHEAD, 5HP Product Dimensions Weight......................772 lbs. Width (side‐to‐side) x Depth (front‐to‐back) x Height........39 x 56 x 45 in. Footprint (Length x Width)................. 27‐1/2 x 23 in.
  • Page 8 Model W1864/W1865 (For Machines Mfd. Since 02/19) Main Specifications Main Specifications Planer Size....................20 in. Max. Cut Width................... 20 in. Min. Stock Length..................7 in. Min. Stock Thickness................... 1/4 in. Max. Stock Thickness..................8 in. Number of Cuts Per Inch................83, 104 Number of Cuts Per Minute................

  • Page 9: Identification

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Identification Become familiar with the names and locations of the controls and features shown below to better understand the instructions in this manual. Roller Extension Tables Control Panel for Return Table (W1864) Magnetic Switch...

  • Page 10: Controls & Components

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Controls.&.Components Refer to the Figures.1–2 and the following descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this machine.

  • Page 11: Internal Components

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Internal.Components Front Rear Workpiece Figure.3. Workpiece path and major planing components (side cutaway view). A. Anti-Kickback.Fingers: Provide additional F.. Pressure.Bar:.Stabilizes the workpiece safety for the operator. as it leaves the cutterhead and assists in deflecting wood particles toward the dust B.

  • Page 12: Safety

    Model W1864/W1865 (For Machines Mfd. Since 02/19) SAFETY SAFETY For.Your.Own.Safety, Read.Manual.Before.Operating.Machine The. purpose. of. safety. symbols. is. to. attract. your. attention. to. possible. hazardous. conditions.. This. manual.uses.a.series.of.symbols.and.signal.words.intended.to.convey.the.level.of.importance.of.the. safety.messages..The.progression.of.symbols.is.described.below..Remember.that.safety.messages.by. themselves. do. not. eliminate. danger. and. are. not. a. substitute. for. proper. accident. prevention. mea- sures—this.responsibility.is.ultimately.up.to.the.operator!
  • Page 13 Model W1864/W1865 (For Machines Mfd. Since 02/19) WEARING.PROPER.APPAREL..Do not wear FORCING.MACHINERY..Do not force machine. It clothing, apparel, or jewelry that can become will do the job safer and better at the rate for entangled in moving parts. Always tie back which it was designed.

  • Page 14: Additional Safety For Planers

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Additional.Safety.for.Planers Amputation,.serious.cuts,.entanglement,.or.death.can.occur.from.contact.with.rotating.cutterhead. or. other. moving. parts!. Flying. chips. can. cause. eye. injuries. or. blindness.. Workpieces. or. knives. thrown.by.cutterhead.can.strike.nearby.operator.or.bystanders.with.deadly.force..To.reduce.risk. of.these.hazards,.operator.and.bystanders.MUST.completely.heed.hazards.and.warnings.below. KICKBACK..Know how to reduce the risk of PLANING.CORRECT.MATERIAL..Only plane kickback and kickback-related injuries. natural wood stock with this planer. DO NOT “Kickback”...

  • Page 15: Electrical

    Model W1864/W1865 (For Machines Mfd. Since 02/19) ELECTRICAL Circuit.Requirements This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an The machine must be properly set up adequate power supply circuit is available.

  • Page 16: Grounding Requirements

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Grounding.Requirements This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides a path of least resistance for electric current to travel—in The machine must be properly set up order to reduce the risk of electric shock.

  • Page 17: Setup

    Model W1864/W1865 (For Machines Mfd. Since 02/19) SETUP Unpacking This machine has been carefully packaged for safe This machine presents transportation. If you notice the machine has been serious injury hazards damaged during shipping, please contact your authorized to untrained users. Read Shop Fox dealer immediately.

  • Page 18: Inventory

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Inventory The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them. Note: If you cannot find an item on this list, carefully check around/inside the machine and packaging materials.

  • Page 19: Cleaning Machine

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Cleaning.Machine To prevent corrosion during shipment and storage of your machine, the factory has coated the bare metal surfaces of your machine with a heavy-duty rust prevention compound. Gasoline.and.petroleum. products.have.low.flash. If you are unprepared or impatient, this compound can points.and.can.explode.

  • Page 20: Machine Placement

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Machine.Placement Weight.Load Physical.Environment Refer to the Machine.Specifications for the The physical environment where your machine is weight of your machine. Make sure that the operated is important for safe operation and the surface upon which the machine is placed will longevity of its components.

  • Page 21: Lifting & Moving

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Lifting.&.Moving The planer is equipped with four lifting bars that extend in order to lift and place the planer. HEAVY LIFT! To lift and place the planer, extend the lifting bars and Straining...

  • Page 22: Assembly

    2. W1865:.Thread (3) M8-1.25 x 20 set screws into each Figure.11..Extension table mounting extension table at locations shown in Figure.11. locations. 3. W1864: Using a straightedge as a guide, position extension tables so they are in plane with main Install Handle table, then fully tighten hex bolts from Step.1.

  • Page 23: Dust Collection

    Model W1864/W1865 (For Machines Mfd. Since 02/19) 9.. W1864:.Assemble knife-setting jig (see Figure.14). E-Clip Snapped Into a.. . Snap (2) 9mm E-clips into inner notches on knife- Inner Notch (1 of 2) setting jig shaft. E-Clip Snapped Into b.. . Slide (2) knife-setting jig feet onto ends of shaft.

  • Page 24: Checking Gearbox Oil Level

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Checking.Gearbox.Oil. Level Before starting your machine for the first time, check the gearbox oil level. The proper oil level is just even with Drive the bottom of the fill plug hole. The gearbox uses ISO 320 Chain gear oil.

  • Page 25: Test Run

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Test.Run Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning properly. Serious. injury. or. death. can. result. from. using. this. machine. BEFORE.

  • Page 26: Recommended Adjustments

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Recommended. Adjustments The adjustments listed below have been performed at the factory. However, because of the many variables involved with shipping, we recommend that you verify the After. approximately. 16. hours. of. adjustments to ensure the best possible results from your operation,.V-belts.will.stretch.and.seat.

  • Page 27: Operations

    Model W1864/W1865 (For Machines Mfd. Since 02/19) OPERATIONS Operation.Overview The purpose of this overview is to provide the novice machine operator with a basic understanding of how the machine is used during operation, so the machine controls/components discussed later in this manual are easier to understand.

  • Page 28: Workpiece Inspection

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Workpiece.Inspection Wood.Types Some workpieces are not safe to use or may The species of wood, as well as its condition, require modification before they are. Before. greatly affects the depth of cut the planer can cutting,.inspect.all.workpieces.for.the.

  • Page 29: Planing Tips

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Planing.Tips Cutting.Problems • Inspect your lumber for twisting or cupping, Below is a list of wood characteristics you and surface one face on a jointer if may encounter when planing. The following necessary before planing workpiece.
  • Page 30 Model W1864/W1865 (For Machines Mfd. Since 02/19) Chip.Marks.or.Indentations Pitch.&.Glue.Build-up. Problem:.Chip indentation or chip bruising is the Problem:.Glue/resin buildup on the rollers and result of wood chips not being ejected from the cutterhead will cause overheating by decreasing machine. Instead they are carried around the...

  • Page 31: Depth Of Cut

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Depth.of.Cut Table.Movement.per.Handwheel.Revolution Table One Full Revolution ......... ⁄ " Height Handwheel Material.Thickness.Range Minimum–Maximum Stock Thickness ....⁄ "–8" The depth of cut on a planer means the amount of material that is removed from the top of the workpiece as it passes underneath the cutterhead.
  • Page 32 Model W1864/W1865 (For Machines Mfd. Since 02/19) Items.Needed. Hex Wrench 3mm ..........1 Open-End Wrench 14mm........1 Straightedge 36" ..........1 Feeler Gauge Set ..........1 Rotacator (optional, refer to Page.36) .....1 To.adjust.bed.rollers,.do.these.steps: 1.. DISCONNECT MACHINE FROM POWER! 2. Completely lower table to give yourself enough room to work.

  • Page 33: Setting Feed Rate

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Setting.Feed.Rate High Feed Rate .......... 28 FPM High Low Feed Rate .......... 16 FPM The infeed and outfeed rollers move the workpiece through the planer while keeping it flat and providing a consistent rate of movement. The speed that these rollers move the workpiece through the planer is the feed rate.
  • Page 34 Model W1864/W1865 (For Machines Mfd. Since 02/19) Items.Needed. Phillips Screwdriver #2 .........1 Wrench or Socket 12mm, 13mm ......1 Ea. Hex Wrench 3mm ..........1 Knife-Setting Jig ..........1 Heavy Leather Gloves ........1 Pair To.adjust.height.of.knives,.do.these.steps: Loosen Knife 1.. DISCONNECT MACHINE FROM POWER!
  • Page 35 Model W1864/W1865 (For Machines Mfd. Since 02/19) 7.. Jack.Screws: Insert hex wrench into access holes in cutterhead (see Figure.25), and rotate jack screws to raise or lower knife until it barely touches center pad of knife-setting jig with all legs of jig still firmly...

  • Page 36: Rotating/Replacing Cutterhead Inserts (W1865)

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Rotating/Replacing. Cutterhead.Inserts.(W1865) To. reduce. risk. of. shock. or. accidental. startup,. always. disconnect. machine. from. power. before.adjustments,.maintenance,. or.service. The spiral cutterhead is equipped with indexable carbide inserts that can each be rotated to reveal one of four cutting edges.
  • Page 37 Model W1864/W1865 (For Machines Mfd. Since 02/19) 6.. Rotate insert 90° and install so that a fresh cutting edge faces outward (see Figure.30). — When all four insert cutting edges have been used, replace insert with a new one. Always position new insert reference dot in same position to aid in rotational sequencing.

  • Page 38: Accessories

    Model W1864/W1865 (For Machines Mfd. Since 02/19) ACCESSORIES Planer.Accessories The following planer accessories may be available through your local Woodstock International Inc. Dealer. If you do not have a dealer in your area, these products are also available through online dealers.
  • Page 39 Model W1864/W1865 (For Machines Mfd. Since 02/19) SB1365—South.Bend.Way.Oil-ISO.68 Engineered for the high pressure exerted on horizontal or vertical ways and slides. Protects against rust and corrosion. Ensures stick- free, smooth motion which maximizes finishes and extends the life of your machine. Won’t gum up! 12 oz. AMGA#2 (ISO 68 Equivalent).

  • Page 40: Maintenance

    Model W1864/W1865 (For Machines Mfd. Since 02/19) MAINTENANCE Cleaning.&.Protecting Vacuum excess wood chips and sawdust, and MAKE.SURE.that.your.machine. wipe off the remaining dust with a dry cloth. is.unplugged.during.all.main- If any resin has built up, use a resin-dissolving tenance. procedures!. If. this.
  • Page 41 Model W1864/W1865 (For Machines Mfd. Since 02/19) Feed.Roller.Bushings Oil Type ......SB1365 or ISO-68 Equivalent Oil Amount ..........2–3 Drops Lubricate Frequency ......Every 8 Hours of Operation Here The infeed and outfeed rollers rotate inside bushing blocks on both ends of the rollers. Add 2–3 drops of ISO...
  • Page 42 Model W1864/W1865 (For Machines Mfd. Since 02/19) Drive.Chain.&.Sprockets Grease Type ........Synthetic Grease Frequency ..... Every 160 Hours of Operation The infeed and outfeed rollers receive the transferred power from the cutterhead through the drive chain system on the right side of the machine, as shown in Figure.41.

  • Page 43: Service

    Model W1864/W1865 (For Machines Mfd. Since 02/19) SERVICE General This section covers the most common service adjustments or procedures that may need to be made during the life of your machine. If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: techsupport@woodstockint.com.

  • Page 44: Checking/Adjusting Pulley Alignment

    Model W1864/W1865 (For Machines Mfd. Since 02/19) 3. Remove front cabinet cover to access motor, as shown in Figure.45. Belt Tension Hex Nuts 4. If V-belts need to be replaced, raise motor to release belt tension (see Step.5 for instructions), roll belts off pulleys, then replace with a matched set of 3.

  • Page 45: Setting Feed Roller, Chip Breaker & Pressure Bar Heights

    Model W1864/W1865 (For Machines Mfd. Since 02/19) — If pulleys are parallel and in the same plane, no adjustment is necessary. Re-install belt cover. Motor Mount Bolts — If pulleys are not parallel or in the same plane, (2 of 4) remove motor access panel, then proceed to Step.3.
  • Page 46 Model W1864/W1865 (For Machines Mfd. Since 02/19) To.use.a.Rotacator,.do.these.steps: 1. DISCONNECT MACHINE FROM POWER! 2. Make sure knives are set to correct height (refer to Adjusting/Replacing.Knives on Page.31 for detailed instructions). If machine is spiral cutterhead, make sure all inserts are properly installed (refer to Rotating/Replacing.Cutterhead.Inserts on Page.33...
  • Page 47 36" For best results, make the 2x4 square with a jointer and table saw before cutting it in half. 2.. W1864.Only:.Make sure knives are set to correct height (refer to Adjusting/Replacing.Knives on Page.31 for detailed instructions). 3.. DISCONNECT MACHINE FROM POWER! 4..
  • Page 48 Model W1864/W1865 (For Machines Mfd. Since 02/19) 6.. Remove dust port, top cover, belt cover, and drive chain cover. 7.. Raise table until wood blocks get close to cutterhead. 8.. Use belt to rotate cutterhead and continue raising table until blocks just barely touch cutterhead knife/insert at its lowest point of rotation (BDC).

  • Page 49: Adjusting Feed Roller Spring Tension

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Adjusting.Feed.Roller. Spring.Tension The infeed and outfeed rollers keep the workpiece moving through the planer. Springs exert downward pressure on the feed rollers while allowing them to raise with an uneven workpiece surface. Proper spring tension is crucial to keep the workpiece moving through the planer during operation.

  • Page 50: Positioning Chip Deflector

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Positioning.Chip.Deflector Chip.Deflector.Gap.Setting If Planer Used w/Dust Collector ......⁄ If Planer Used w/o Dust Collector ....... ⁄ When properly distanced from the cutterhead, the chip deflector directs the chips into the dust hood, and keeps them from falling onto the outfeed roller and being pressed into the workpiece.

  • Page 51: Calibrating Table Elevation Scale

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Calibrating.Table. Elevation.Scale Although correctly set at the factory, the table elevation scale can be adjusted for accuracy if necessary. Items.Needed. Phillips Screwdriver #2 .........1 Scrap Piece of Stock ..........1 Calipers ............1 Screws To.calibrate.table.elevation.scale,.do.these.steps: 1..

  • Page 52: Tensioning Table Height Chain

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Tensioning.Table.Height. Chain The table height chain transfers movement from the elevation handwheel to the columns that control table height. The chain drive can be adjusted to remove slack DO. NOT. let. chain. fall. off. sprockets.. It.

  • Page 53: Adjusting Table Parallelism

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Adjusting.Table. Parallelism Maximum.Allowable.Tolerances: Cutterhead Cutterhead/Table Side-to-Side ......0.002" Head Casting/Table Front/Back ....... 0.020" Parallel Parallel Table Table parallelism is critical to the operation of the SIDE-TO-SIDE FRONT machine. As such, it is essential that the table is parallel VIEW with the cutterhead (within 0.002") from side-to-side, as...
  • Page 54 Model W1864/W1865 (For Machines Mfd. Since 02/19) To.adjust.table.parallelism,.do.these.steps: 1.. DISCONNECT MACHINE FROM POWER! 2.. Remove motor access panel and locate chain on underside of table. 3.. Loosen lock bolts and idler sprocket (see Tensioning. Table.Height.Chain.Tension instructions on Page.50). 4.. Move chain away from sprocket you want to adjust so only that sprocket can be rotated independent of chain.

  • Page 55: Troubleshooting

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Troubleshooting The following troubleshooting tables cover common problems that may occur with this machine. If you need replacement parts or additional troubleshooting help, contact our Technical Support. Note: Before contacting Tech Support, find the machine serial number and manufacture date, and if available, your original purchase receipt.
  • Page 56 Model W1864/W1865 (For Machines Mfd. Since 02/19) Machine.Operation PROBLEM POSSIBLE.CAUSE CORRECTIVE.ACTION Excessive snipe 1. One or both of bed rollers are set too high. 1. Lower bed rollers (Page.29). (gouge 2. Outfeed extension slopes down or is not level 2. Shim outfeed extension wing level with main table.

  • Page 57: Electrical Safety Instructions

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Electrical.Safety.Instructions These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Compare the manufacture date of your machine to the one stated in this manual, and study this section carefully.

  • Page 58: W1864 Wiring Diagram

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1864.Wiring.Diagram Read Page 55 STOP Before Wiring R/1/L1 S/3/L2 T/5/L3 NC21 MA-30 NO13 240V NO14 NC22 U/2/T1 V/4/T2 W/6/T3 RA-30 MAGNETIC SWITCH ASSEMBLY SDE MP-30 220 VAC Start Capacitor L6-30 PLUG Ground 600MFD...

  • Page 59: W1864 Electrical Components

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1864.Electrical.Components Figure.65..W1864 motor junction box. Figure.64..W1864 magnetic switch with cover removed. Figure.66..W1864 capacitors. -57-...

  • Page 60: W1865 Wiring Diagram

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1865.Wiring.Diagram CONTROL PANEL (viewed from behind) START STOP POWER R/1/L1 S/3/L2 T/5/L3 NC21 MA-30 Ground NO13 PEDESTAL 240V NO14 Read Page 55 STOP U/2/T1 V/4/T2 W/6/T3 NC22 Before Wiring RA-30 220 VAC L6-30 PLUG...

  • Page 61: W1865 Electrical Components

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1865.Electrical.Components Figure.69..W1865 motor junction box. Figure.67..W1865 magnetic switch with cover removed. Figure.70..W1865 capacitors. Figure.68..W1865 control panel. -59-...

  • Page 62: Parts

    Model W1864/W1865 (For Machines Mfd. Since 02/19) PARTS Main 58-1 (W1865) (W1865) 58-2 (W1865) 58-3 (W1865) 58-4 514V2 (W1865) (W1864) 517V2 (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1865) (W1865) (W1865) 2 96 (W1864) 87-1 (W1864) 87-3 87-4 87-2...
  • Page 63 RETURN ROLLER (W1865) X1865003-2 FLAT HD TORX 10-32 X 1/2 (W1865) 58-1 X1865058-1 CAP SCREW M6-1 X 10 (W1865) X1864004 COMPRESSION SPRING 0.6 X 5.9 X 16 (W1864) 58-2 X1865058-2 FLAT WASHER 6MM (W1865) X1864005 20" PLANER KNIVES-SET OF 4 (W1864)
  • Page 64 Model W1864/W1865 (For Machines Mfd. Since 02/19) Main.Parts.List.(Cont.) PART # DESCRIPTION PART # DESCRIPTION X1864501 GEARBOX X1864535 LOCATING PIN 8 X 7.55 X 7.95 X1864502 OIL SEAL 28 X 40 X 8 X1864536 GASKET X1864503 BALL BEARING 6204ZZ X1864537 GEARBOX COVER...

  • Page 65: W1864 Stand & Motor

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1864.Stand.&.Motor 414-3 414-1 414-2 414-4 414-6 414-5 414-7 414-11 414-10 414-8 414-9 -63-...
  • Page 66 Model W1864/W1865 (For Machines Mfd. Since 02/19) W1864.Stand.&.Motor.Parts.List PART # DESCRIPTION PART # DESCRIPTION X1864017 MOTOR PULLEY 414-4 X1864414-4 MOTOR JUNCTION BOX X1864093 MOTOR CORD 10G 3W 57" 414-5 X1864414-5 MOTOR FAN X1864331 HEX BOLT M12-1.75 X 50 414-6 X1864414-6...

  • Page 67: W1865 Stand & Motor

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1865.Stand.&.Motor 414-3 414-1 414-2 414-4 414-6 414-5 414-7 414-10 414-11 414-8 414-9 87-1 87-3 87-4 87-2 -65-...
  • Page 68 Model W1864/W1865 (For Machines Mfd. Since 02/19) W1865.Stand.&.Motor.Parts.List PART # DESCRIPTION PART # DESCRIPTION X1865017 MOTOR PULLEY 414-11 X1865414-11 CENTRIFUGAL SWITCH X1865087 MAGNETIC SWITCH ASSY SDE MP-30 X1865415 KEY 5 X 5 X 30 87-1 X1865087-1 CONTACTOR SDE MA-30 220-240V X1865417 POWER CORD 10G 3W 138"...

  • Page 69: Table & Base

    Model W1864/W1865 (For Machines Mfd. Since 02/19) Table.&.Base (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1864) (W1865) (W1864) (W1865) (W1865) (W1865) (W1865) (W1865) (W1865) (W1865) -67-...
  • Page 70 Model W1864/W1865 (For Machines Mfd. Since 02/19) Table.&.Base.Parts.List REF PART # DESCRIPTION REF PART # DESCRIPTION 201 X1864201 MAIN TABLE 306 X1864306 LEADSCREW 19.05-4 X 335, PRIMARY 202 X1864202 MAIN TABLE ROLLER 307 X1864307 LEADSCREW NUT 19.05-4 203 X1864203 BALL BEARING 6201-2RS...

  • Page 71: W1864 Labels & Cosmetics

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1864.Labels.&.Cosmetics 702V2 Note: Similar headstock shown as example. Specifications WARNING! WARNING WARNING Motor: 5 HP, 230V, 1-Ph, 60 Hz To reduce the risk of serious injury when using this machine: Full-Load Current Rating: 23A 1.

  • Page 72: W1865 Labels & Cosmetics

    Model W1864/W1865 (For Machines Mfd. Since 02/19) W1865.Labels.&.Cosmetics 702V2 Note: Similar cutterhead shown as example. MODEL W1865 20" 5HP PLANER w/SPIRAL CUTTERHEAD Specifications WARNING! WARNING WARNING Motor: 5 HP, 220V, 1-Ph, 60 Hz To reduce the risk of serious injury when using this machine: Full-Load Current Rating: 23A 1.
  • Page 73 Model W1864/W1865 (For Machines Mfd. Since 02/19)
  • Page 74 Fold along dotted lIne place stamp Here Woodstock international inc. p.o. box 2309 bellingham, Wa 98227-2309 Fold along dotted lIne tape along edges--please do not staple...

  • Page 75: Warranty

    Woodstock International, Inc. will repair, replace, or arrange for a dealer refund, at its expense and option, the Shop Fox machine or machine part proven to be defective for its designed and intended use, provided that the original owner returns the product prepaid to an authorized warranty or repair facility as designated by our Bellingham, Washington office with proof of their purchase of the product within two years, and provides Woodstock International, Inc.
