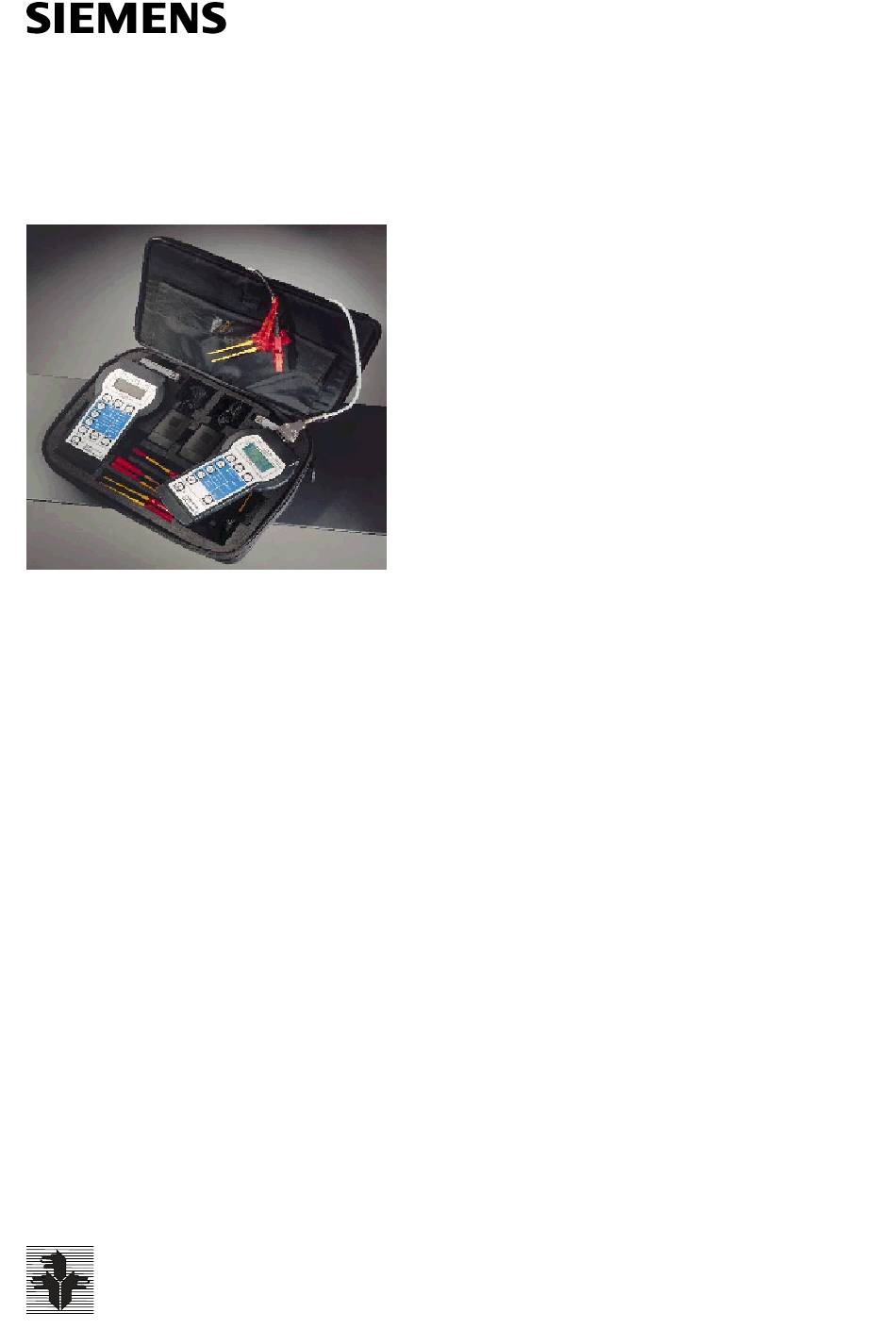

- Page 1 Manual Tools Section 06 ® Cerberus NW8005 Data Line Test Set Technical Manual Cerberus Security Siemens Building Technologies for People Cerberus Division and Assets...
- Page 2 Data and design subject to change without notice. / Supply subject to availability. © Copyright by Siemens Building Technologies AG We reserve all rights in this document and in the subject thereof. By accep- tance of the document the recipient...
-
Page 3: Table Of Contents
Automatic measurement................15 5.3.1 Measurement....................15 5.3.2 Storing results...................16 5.3.3 Calling up results ..................16 5.3.4 Assessment of lower quality cable ............17 5.3.5 Check cable continuity................17 Components / Spare parts ..............18 Disposal / Protection of the environment ..........18 Siemens Building Technologies 12.2000 Cerberus Division... -
Page 5: About This Document
Last page Date of issue Document-number Supersedes: Abbreviations Divisional Unit (subsidiary) W&G Wandel & Goltermann (ACTERNA) Online Support System for downloading of software and documents Modification index Current version Date Issued 01 12.2000 Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 6: Device Description
Data lines for Cerberus networks require a specific tolerance mask curve for automatic measurement. The corresponding file must be requested from Cerberus or downloaded via OSS (https://oss.cerberus.ch/swtool/systems/index.html#network). The SLT configuration and transfer software from ACTERNA (Wandel & Goltermann) operates on: Windows 3.11 Windows 95/98 Windows Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 7: Slk-12 Line Test Set W&G
The Data Line Test Set consists of two devices: SLT-12 and SLT-22. They are packed together with the required measuring cable and other accessories in a carrying case. Battery /battery cassettes Power unit Measuring cable Line tester SLT-11 Line tester SLT-22 Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 8: Front View Slt-22 And Slt-11
Test jacks for testing 1 or 2 wire pairs Pass/Fail assessment for total measurement (PASS = Good; FAIL = Bad) Display of measured results Display of test function Keys for operating mode Start / Stop test Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 9: Structure And Function
In general it is a good idea to start measurements from the SLT-22 (Master). This allows you to make use of the extended functions without any restric- tions. The line to be tested is always connected to the Pair1 terminals. Siemens Building Technologies e3180a.doc Cerberus Division... -
Page 10: Interference When Operating On Mains Supply
The devices have a very wide dynamic range to enable even very small signal levels to be measured accurately. To avoid influencing the results by mains-borne interference, the test set-up should be earthed. Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 11: Installation / Commissioning
Set Batt. switch to "Alkaline " If batteries are charged once, only a few measurements are possible. We recommend the devices be oper- ated on the mains or that sufficient spare batteries be provided. Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 12: Power Supply
Batt. switch set to " Recharg." charge the built-in batteries at the same time Device switched on Mains operation without charger operation No battery box fitted or Batt. switch set to "Alkaline " Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 13: Switching On The Device
In the event of faults or if the device malfunctions, it can be reset to a defined state. The reset can be carried out as follows: Switch the device off and then on again or Remove the battery cassette Press keys simultaneously 3.2.4 Poll software status Press keys simultaneously Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 14: Functions And Configurations
Start in the program group ACTERNA (Wandel Goltermann) on the entry "SLT Sub- scriber Line Tester" The "Subscriber Line Tester" window is opened. Transmission of the Cerberus templates Download a Template set ... Edit a Templates set ... Upload Results ... Viewing Results ... Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 15: Operation
Example of a measuring sequence and its assessment Attenuation Impedance [Ohm] [dB] FAIL FAIL PASS PASS FAIL [kHz] [kHz] The cable should be longer than 100 m in order to achieve a valid assessment. Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 16: Select Template (Only Slt-22)
5.1.2 Select template (only SLT-22) Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 17: Set Date And Time (Only Slt-22)
Stored measured results are automatically given a time stamp comprising date and time. When making an assessment this enables simple allocation of the measured re- sults. Date and time are set: after the initial commissioning after long storage without alkaline batteries or rechargeable batteries Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 18: Erasing The Result Memory
The devices are connected using the safety cables and safety clips supplied. Terminals Pair1 are used on both devices. The SLT-22 device is used as actuating device (Master) at the near end and the SLT- 11 device (Slave) at the far end. Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 19: Automatic Measurement
3. Display at the end of measuring through Pass/Fail assessment" Display PASS specified threshold complied with Display FAIL Near specified threshold NOT complied with Display FAIL Far specified threshold NOT complied with Pass/Fail assessment Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 20: Storing Results
5.3.2 Storing results 5.3.3 Calling up results Conclude storage display Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 21: Assessment Of Lower Quality Cable
LED Tone TX lights up green 2. On the receiver side generate a signal tone with the Pair Detect key LED Tone RX lights up green If continuity is positive a signal tone is sounded Siemens Building Technologies e3180a.doc Cerberus Division 12.2000... -
Page 22: Components / Spare Parts
10 x NiMH battery Mignon AA size (UM3), 1,2V/1,1 Ah SLK = Subscriber Line Tester Kit Details for ordering templates Templates are supplied by Siemens Building Technologies, Cerberus Division online in the Intranet (OSS). https://oss.cerberus.ch/swtool/systems/index.html#network Disposal / Protection of the environ-... - Page 23 Slave 14 Erasing the result memory 14 SLK-12 2, 3, 18 SLT-11 4, 5, 8, 10, 18 SLT-22 4, 5, 8, 10, 12, 18 Storing results 16 LON/CerCom 11 Tolerance masks 11 Master 14 Siemens Building Technologies e3180a.doc Cerberus Division 12.2000...
- Page 24 Siemens Building Technologies AG Cerberus Division CH-8708 Männedorf Cerberus Alte Landstrasse 411 Security Tel. +41 1 - 922 61 11 for People Fax +41 1 - 922 64 50 and Assets www.cerberus.ch Siemens Building Technologies Replaces - Doc.no e3180a Cerberus Division Edition: 12.2000...
