Summary of Contents for Samson AirLine 77 AH7

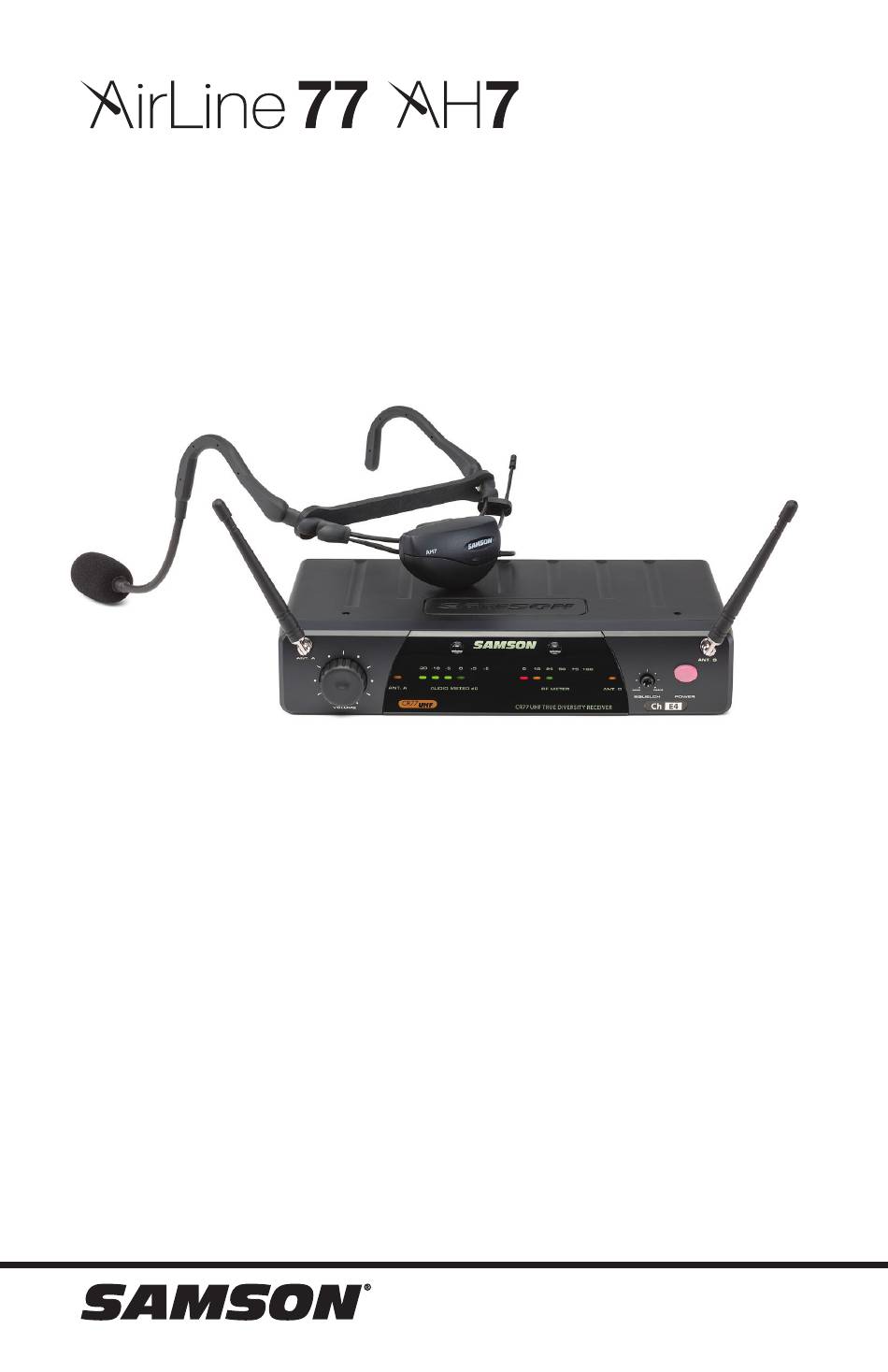

- Page 1 Wireless Systems OWNER'S MANUAL...
-
Page 2: Important Safety Information
By doing so you will ensure that your disposed product undergoes the necessary treatment, re- covery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2018, Samson Technologies Corp. v2.1 Samson Technologies Corp. 278-B Duffy Avenue Hicksville, NY 11801 www.samsontech.com... - Page 3 IS, IT, LV, LT*, LU, MT*, NL, NO*, PL* PT, RO, SK, SI, ES, SE, UK *Subject to license. Please contact your national frequency authority for information on available legal use in your area. Any changes or modifications not expressly approved by Samson Technologies Corp. could void your authority to operate the equipment.
- Page 4 Samson products in the future. Also, be sure to check out our website www.samsontech.com for complete information about our full product line.
-
Page 5: Guided Tour - Cr77 Receiver / Front Panel
Guided Tour - CR77 Receiver / Front Panel ANT. A ANT. B 75 100 ANT. A AUDIO METER dB RF METER ANT. B SQUELCH POWER CR77 UHF TRUE DIVERSITY RECEIVER VOLUME Antennas (A and B) - The antenna mountings allow full rotation for optimum placement. In normal operation, both antennas should be placed in a vertical position. -
Page 6: Guided Tour - Cr77 Receiver / Rear Panel
Guided Tour - CR77 Receiver / Rear Panel DC Input - Connect the supplied power adapter here, using the strain relief as shown in the illustration below. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to the CR77 and will void your warranty. UNBALANCED OUTPUT - Use this unbalanced high impedance (5 kΩ) 1/4”... - Page 7 Guided Tour - AH7 Transmitter Power switch - Press and hold this switch to power on and off the AH7 transmitter (to conserve battery power, be sure to turn the AH7 off when not in use). To eliminate the possibility of an audible pop, mute the audio signal at your external mixer or amplifier before turning the AH7 power on or off.
- Page 8 Wearing the AH7 Headset Microphone As shown in the illustration, the correct way to wear your Qe fitness headset microphone, is over the ears, as you would wear a pair of eyeglasses. Because the Qe microphone is specially designed to be used up close, be sure to position the microphone directly in front of your lips. To avoid feedback problems, take care not to cover the microphone capsule with your hand.
- Page 9 DE10 Headset Fitting the DE10 Headset The DE10 headset can be sized by sliding the Adjust the microphone position by holding ear hooks to fit snug around your head. If the the left ear hook wire and slide the boom DE10 is loose and will not stay in place, slide forward or back.
-
Page 10: Specifications
Audio Output Level Unbalanced: 0 dBv Balanced: -20 dBm (Line), -40 dBm (Mic) Audio Output Impedance Unbalanced: 5 kΩ Balanced: 600 Ω At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice. -
Page 11: Channel Plan
863.625 MHz 492.425 MHz 864.500 MHz 477.525 MHz 864.875 MHz 479.100 MHz 480.475 MHz * Not for use in the USA and Canada. For questions regarding available channels in your area contact your local Samson distributor. AirLine AH7 Wireless System... - Page 12 Having Trouble with your AirLine Wireless System? We can help! CONTACT OUR SUPPORT TEAM: support@samsontech.com Our experts can help you resolve any issues. Follow us: @samson @samsontech @samson_technologies Samson Technologies 278-B Duffy Ave Hicksville, NY 11801 Phone: 1-800-3-SAMSON www.samsontech.com...
