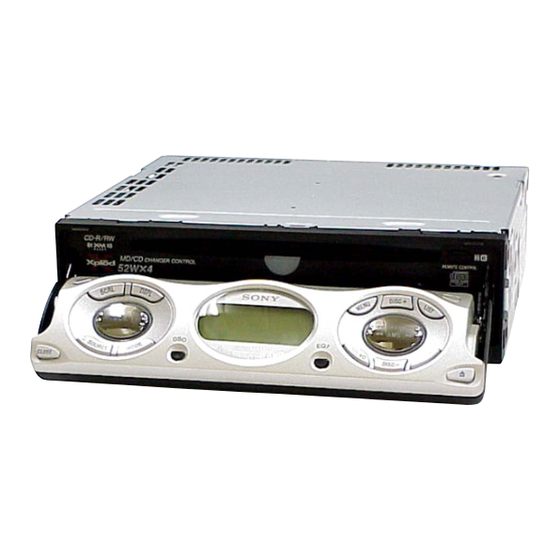

Sony Xplod CDX-M800 Service Manual

Fm/am, fm/mw/lw compact disc player
Hide thumbs Also See for Xplod CDX-M800:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
SERVICE MANUAL
Ver 1.0 2003. 01
• The tuner and CD sections have no adjustments.
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD player section
Signal-to-noise ratio
90 dB
Frequency response
10 – 20,000 Hz
Wow and flutter
Below measurable limit
Tuner section
FM
Tuning range
87.5 – 107.9 MHz (US, Canadian model)
87.5 – 108.0 MHz (AEP, UK, E model)
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity
9 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
67 dB (stereo),
69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
AM (US, Canadian model)
Tuning range
530 – 1,710 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
30 µV
Sony Corporation
9-874-299-01
2003A0400-1
e Vehicle Company
© 2003. 01
Published by Sony Engineering Corporation
CDX-M800
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
MW/LW (AEP, UK, E model)
Tuning range
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
Aerial terminal
External aerial connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
MW: 30 µV
LW: 40 µV
Power amplifier section
Outputs
Speaker outputs (sure seal connectors)
Speaker impedance
4 – 8 ohms
Maximum power output 52 W × 4 (at 4 ohms)
General
Outputs
Audio outputs (front/rear)
Subwoofer output (mono)
Power antenna relay
control terminal (US, Canadian model)
Power aerial relay
control terminal (AEP, UK, E model)
Power amplifier control
terminal
FM/AM COMPACT DISC PLAYER
FM/MW/LW COMPACT DISC PLAYER
US Model
Canadian Model
AEP Model
UK Model
E Model
CDX-L410X/L490X
MG-393XC-121//K
KSS-721A
– Continued on next page –
US, Canadian Model
AEP, UK, E Model
1
