SUMMARY 1 SYSTEM OVERVIEW 2 FUNCTION 3 SAFETY 3.1 Regular use 3.2 Marking of dangers 3.3 Operational safety 3.4 Technical progress 4 MOUNTING AND INSTALLATION 4.1 Scope of delivery 4.2 Necessary auxiliaries 4.3 Mounting of the sensors 4.4 Mounting of the evaluation unit 5 ELECTRICAL CONNECTION 6 COMMISSIONING 7 MENU STRUCTURE... -
Page 3: System Overview

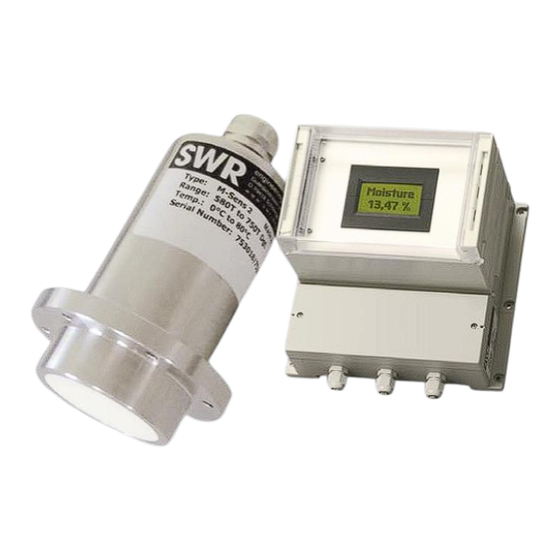

1. System overview A complete M-Sens 2 unit consists of the following components: • Flange (mounting in screw, hopper) • 1 to 3 sensors with 1,8 m connecting cable • Evaluation unit MME 100 resp. MME 300 in a field housing •... -
Page 4: Function
2. Function The M-Sens 2 sensor functionality is based on precise high-frequency measurement and direct digitalization of measured values, wherefrom results a high resolution. As the materials sur- face and capillary moisture influences strongly its specific conductive capacity, the moisture can be measured exactly by a constant averaged bulk density. -
Page 5: Safety
The measuring system must be installed by trained and authorised personnel only. Switch off the supply voltage for all maintenance, cleaning or inspection works on the tubes or on components of the M-Sens 2. Follow the notes of the chapter "mainte- nance". ... -
Page 6: Technical Progress
3.4 Technical progress SWR reserves the right to adapt technical data to the technical progress without particular advance notice. If you have any questions, SWR engineering will be pleased to inform you on possible changes and extensions of the operating instructions. - Page 7 APPLICATIONS – PRACTICAL EXAMPLES • Installation in a screw The installation of a moisture sensor in screw feeders proved to be very advantageous, since the material passes by the sensor window in even intervals and with relatively constant bulk density. •...
- Page 8 Thus, M-Sens 2 avoids that too damp material reaches the next pro- duction level or arrives into the loading.
- Page 9 • Moisture measurement in a mixer M-Sens 2 can be installed, even later on, in all types of mixers. The measuring values logging is done by within the moving material during the mixer procedure. With the measured moisture value of the material in the dryer process parameters like deten- tion time and dosage quantity can be controlled.
-
Page 10: Mounting Of The Evaluation Unit
4.4 Mounting of the evaluation unit The whole electronic equipment can be installed at a maximum distance of 300m from the sensor. The housing is prepared for wall mounting Fig. 10: Field housing for the evaluation unit Fig. 11: Field housing for the C-box The C-box contains fuses and resistances in order to guarantee the communication by the Mod-bus between sensor and evaluation unit. -
Page 11: Electrical Connection
5. Electrical connection Supply voltage according to the version. Fig. 12: Electrical connection of the evaluation unit Fig. 13: Electrical connection of the C-box... -
Page 12: Commissioning
6. Commissioning AT the first commissioning of the M-Sens 2 it is necessary to calibrate the sensor. Please consider: Correct connection between sensor, C-box and evaluation unit Correct installation of the sensor in respect to the wall thickness In case of negative results in spite of consideration of the points as stated above, please con- tact SWR. - Page 13 Analogue outputs The analogue outputs can be defined in menu point 5. They can be adapted to the operator’s requirements (e.g. 0-20mA). Basic points The measurement can be checked for linearity by means of varying moisture values. To improve the accuracy those values have to be determined.
-
Page 14: Menu Structure
7. Menu structure Products 1…4 1 Products 1.1 Measurement range 1.1.1 Product name Choice of material (8 char) 1.1.2 Unity Choice unit text, e.g. % H 1.1.3 Decimal place Decimal place position Range of 0…100 % 1.1.4 Measurement range init Range of 0…100 % 1.1.5 Measurement range end 1.1.6 Filter value... - Page 15 1.4 Calibration Range of 0,1…999,9 s 1.4.1 Calibration filter Range of 2…5 base points 1.4.2 Number of calibration points 1.4.3 Calibration factor for sensor 1 Rating of sensor signal with several sensors used and disconnecting of 1 sensor with 0 1.4.4 Calibration factor for sensor 2 Rating of sensor signal with several sensors used and disconnecting of 1...
- Page 16 6 Digital inputs 6.1 Digital input 1 6.1.1 Function none; measurement stop or product choice 6.1.2 Effect direction direct or inverted Range of 0,1…99,9 s 6.1.3 Filter 6.2 Digital input 2 6.2.1 Function none; measurement stop or product choice 6.2.2 Effect direction direct or inverted Range of 0,1…99,9 s 6.2.3 Filter...
-
Page 17: System Adjustments In Detail
8. System adjustments in detail Measurement range 1.1.1 Product name Measurement range Product name Select the name of medium and location (max. 8 char). Material Choose the characters with and and the each corresponding position (1...8) with and ... - Page 18 1.1.6 Filter value Meas. range Setting of the damping time between (range be- Filter tween 0,1 ... 999,9 s). With C you set the value to 0.0. With the num- bers you input the beginning value and with the input is accepted and you quit the menu level.
- Page 19 1.2.5 Operation modus Alarm 1 Choice of switching contact: Operation modus AST Open current RST Closed current With and you make a choice according to the display. With C you quit the menu point without any change and with the input is accepted and you quit the menu level.
- Page 20 1.4.1 Calibration filter Calibration Damping filter in order to slow down disturbed Filter signals during the calibration (no effect on output and display); Range between 0,1 and 999,9 s. With C you set the value to 0.0. With the num- ...
- Page 21 1.4.10 Calibration point N Choose the measured value in physical unities – beginning and end of measurement range. 1.4.11 Measured value Input value is collected and assigned to the shown measured value. For 2.1 to 2.4 / 3.1 to 3.4 / 4.1 to 4.4 : analogue to point 1 5.
- Page 22 5.5 Alarm value Anal. output Choose the output value for the alarm (sensor error Alarm value or an internal alarm); at the same time the relay 3 drops down. Range of 0 ... 22 mA (Std 3 mA) With C you set the value to 0.0. With the num- bers you input the beginning value and with ...
- Page 23 6.1.1 Function Digital input 1 No function / M-Stop – Start/Stop of the device Function via external control signal. none With and you make a choice according to the display. With C you quit the menu point ...
- Page 24 7.2 Modbus Address System Setting of Mod-bus address between 1 ... 250. Address With C you set the value to 0.0. With the num- bers you input the beginning value and with the input is accepted and you quit the menu level. 7.3 Contrast System Contrast...
-
Page 25: Wiring Example
In case of a defect during the warranty period, defective components are repaired or are re- placed free of charge. Replaced parts turn into the property of SWR. If desired by the cus- tomer that the parts should be repaired or replaced in its factory, then the customer has to take over the costs for the SWR-service staff. -
Page 26: Trouble Shouting
Check the connecting cables for a possible Cable break break of a cable Defective fuse Exchange fuse in the field housing Defective device Contact SWR Measuring system Delete input signal correction, new cali- Incorrect calibration outputs wrong values bration according to section 6... -
Page 27: Technical Data
13. Technical data Sensor Housing Stainless Steel 1.4571 Sensor surface Ceramics Ex protection Zone 22 (dust), zone 2 (gas) Protection category IP 67 according to EN 60529 0 … +80 °C Ambient temperature Working pressure Max. 10 bar Power consumption 0,6 W Response time 0,1 sec...
