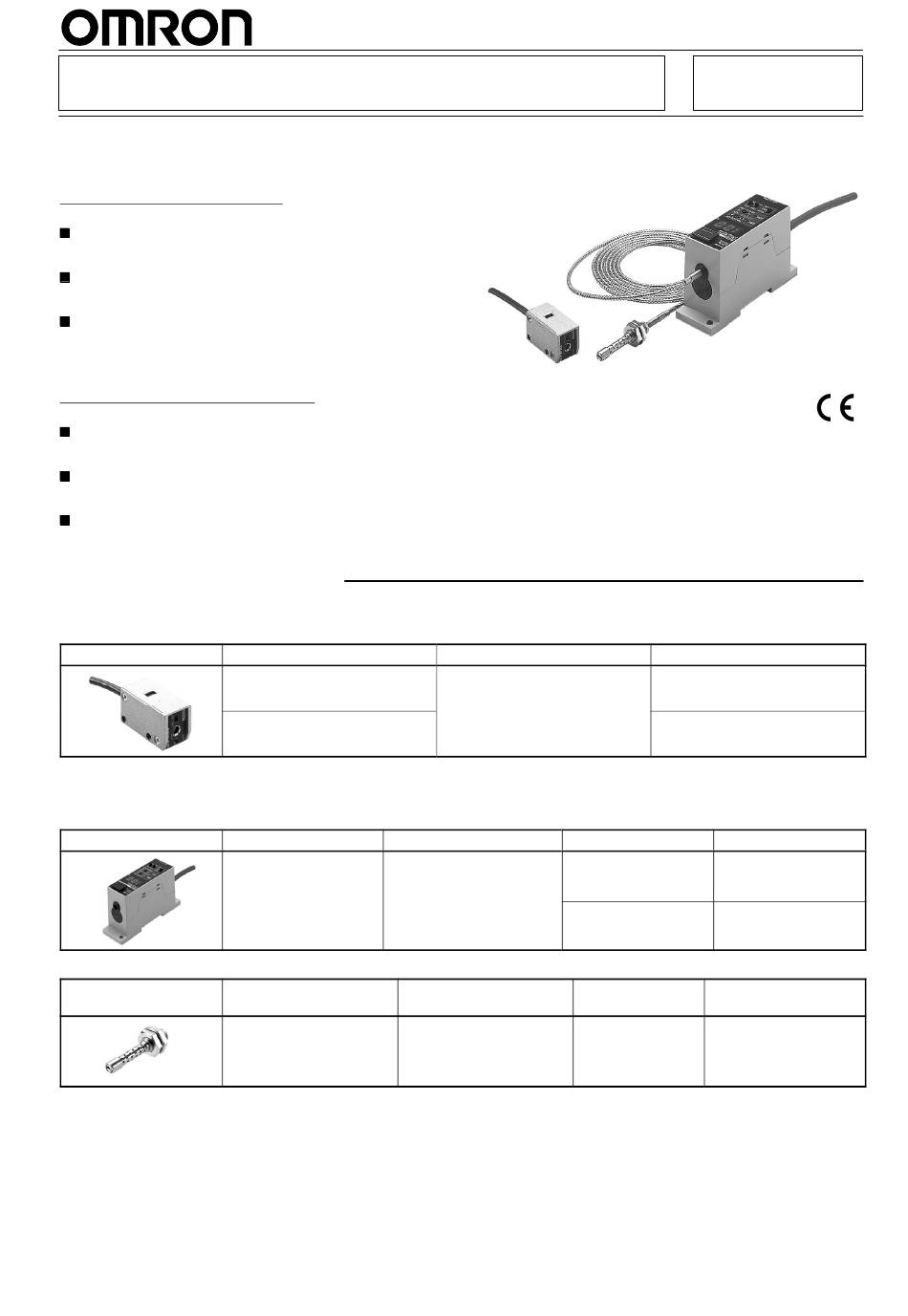

UV Power Monitor
Monitor the Output of a UV Light Source
through an Optical Fiber Cable
Monitors with Optical Fibers
Head Unit withstands temperatures of up to
300°C.
Easy-to-read digital display of measurement
values.
Harmful UV light converted to visible light before
performing measurements. This feature prevents
deterioration of the Amplifier's light receiving
element.
Monitors with Built-in Amplifiers
Deterioration due to UV light prevented by
protective structure.
Confirm the output status of the UV light source
with an operation indicator.
Filtering Cover (reduces light intensity by 1/6.5)
also available.
Ordering Information
Monitors with Built-in Amplifiers
Main Unit
Appearance
Intensity range of incident light
1 to 30 mW/cm
0.2 to 3 mW/cm
Note: Does not function as a sensor.
Monitors with Optical Fibers
Amplifier
Appearance
Pre-wired cable
Head Unit
Appearance
200 to 370 nm
2
2
Connection method
• Judgement output
• Answer-back output
• Analog current or voltage
• Analog current or voltage
output
Wavelength range of
incident light
300_C
(Use at temperatures below
the Fiber Unit's rated
operating temperature.)
Output
Analog voltage output (1 to 5 V)
Outputs
Transistor type
NPN
PNP
Max. temperature
Model number
F3UV-HM
F3UV
Model number
F3UV-A30
F3UV-A03
Model number
F3UV-XW11
F3UV-XW41
Remarks
Includes two M8 nuts
and one mounting plate.
1
Advertisement
Table of Contents
Related Manuals for Omron F3UV-A30
Summary of Contents for Omron F3UV-A30
-
Page 1: Ordering Information
Main Unit Appearance Intensity range of incident light Output Model number 1 to 30 mW/cm Analog voltage output (1 to 5 V) F3UV-A30 0.2 to 3 mW/cm F3UV-A03 Note: Does not function as a sensor. Monitors with Optical Fibers Amplifier Appearance... -
Page 2: Accessories (Sold Separately)
F3UV F3UV Fiber Units Compatible Compatible Appearance Max. Intensity range of Model number Quantity Amplifier Units Head Units temperature incident light (see note) F3UV-XW11, F3UV-HM 300_C 10 to 300 mW/cm F32-300 F3UV-XW41 M4 threads, 2 m 70_C 10 to 300 mW/cm F32-70 M4 threads, 2 m Note: The values given are for a standard UV light source with a central wavelength of 360 nm, measured with a standard illumination meter... -
Page 3: Specifications
F3UV F3UV Specifications Ratings/Characteristics Monitors with Built-in Amplifiers (Main Unit) Item F3UV-A30 F3UV-A03 Incident light power range 1 to 30 mW/cm 0.2 to 3 mW/cm Incident light wavelength range 200 to 370 nm Power indicator Green LED Operation indicator Orange LED (lights with an output between 4 and 5 V) - Page 4 F3UV F3UV Accessories (Sold Separately) Protective Tube (Protects the Cord.) F39-CU1M Item Flexible tube Head connector End cap Ambient temperature –40° to 100°C for operation and storage (Use within the specified operating temperature range for the Monitor.) Ambient humidity Operating: 35% to 85% Storage: 35% to 95% 24 ±...
- Page 5 F3UV F3UV 5. Definition of the luminous energy integral: The physical unit of the luminous energy integral is energy (J: joules) and this value is calculated by multiplying the UV intensity (mV) by the time of exposure (s), but it is dimensionless when this sensor’s analog output value (V) is used for the UV intensity.
- Page 6 5 V for a UV intensity of 3 mW/cm UV intensity (mW/cm UV intensity (mW/cm Angular Characteristics F3UV-A30/-A03 F3UV-A30/-A03 and F39-HU1 Cover (Sold Separately) X-axis relative sensitivity (%) X-axis relative sensitivity (%) Y-axis relative sensitivity (%) Y-axis relative...
- Page 7 F3UV F3UV Nomenclature Monitors with Built-in Amplifiers F3UV-A30/-A03 Functions Name Function Display Power indicator Lit green when power supply functions is ON. Operation indicator Lit orange when the analog output is between 4 and 5 V. Output Analog output Outputs a voltage (1 to 5 V)
- Page 8 F3UV F3UV Functions Name Function • Indicator functions Threshold setting The desired threshold value can be set function (monitor • by pressing the Up and Down buttons. Measurement/ Lit green: Teaching OK mode only) (The digital display will change in 1% teaching increments when the value is set.) indicator...
- Page 9 Black output Controller, etc. Analog GND Internal Shield circuit Answer-back Gray output Judgement White output Load Load Display Blue Monitors with Built-in Amplifiers Analog Indications such as Voltage or Current Signals K3NX-VD2A-T1 – F3UV-A30/-A03 UV Power Monitor Black Brown Blue...
- Page 10 F3UV F3UV Dimensions Note: All units are in millimeters unless otherwise indicated. Monitors with Built-in Amplifiers Main Units F3UV-A30/-A03 Light receiving window Power/Operation indicators Sensitivity adjuster 7.4 dia. 4 dia. Mounting Hole Dimensions Two, M3 9.5 dia. Protective cover screw Mounting holes (3.5 dia.)
-
Page 11: Mounting Bracket
F3UV F3UV Mounting Bracket F39-L9 Optical axis Optical axis Optical axis Material: Stainless steel (SUS304-CP) t = 0.2 Monitors with Optical Fibers Main Units Sensitivity setting/threshold value up button Amplifier Zero-point setting/threshold value up button Monitor/Integral mode switch F3UV-XW11/-XW41 Fiber lock button 7-segment display Current/Voltage output switch RUN/ADJ/TEACH mode switch... - Page 12 F3UV F3UV Lock washer Lock nuts (2) Base Unit Detection surface M8 × 1 15 dia. 6 dia. F3UV-HM 5 dia. Material: Stainless steel (SUS303) Fiber Unit Note: The max. temperature is Hex nuts (2) Flexible tube, 2.8 dia. (Stainless) F32-300 Lock washers (2) 300_C in section A and...
- Page 13 (frame ground) and G (ground) terminals. Output signal noise will be setting the sensitivity. excessive if the power supply is not grounded. Precautions for the F3UV-A30/A03 Installation 4. Rough Adjustment The operation indicator will light if the analog output value is Installation Torque between 4 and 5 V.
-
Page 14: Installation
F3UV F3UV 4. Select an operating mode with the operation mode switch. (Light intensity monitor mode or light intensity integral mode) 5. When using the analog output, select current or voltage output with the output selection switch. 6. Set the processing mode switch to TEACH and perform the teaching operation. - Page 15 F3UV F3UV insert the Fiber Unit completely as shown in the following diagram. Fiber Unit (Example: F32-300) Fiber Unit (Example: F32-70) 5. Fiber Unit Installation/Removal Precautions Install and remove the Fiber Unit only when the ambient temperature is between –40 and 40_C. 6.
- Page 16 To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. E315-E1-1 In the interest of product improvement, specifications are subject to change without notice. OMRON Corporation Industrial Automation Company Industrial Sensors Division Sensing Devices and Components Division H.Q.
