Summary of Contents for Philips PDS-60 Series

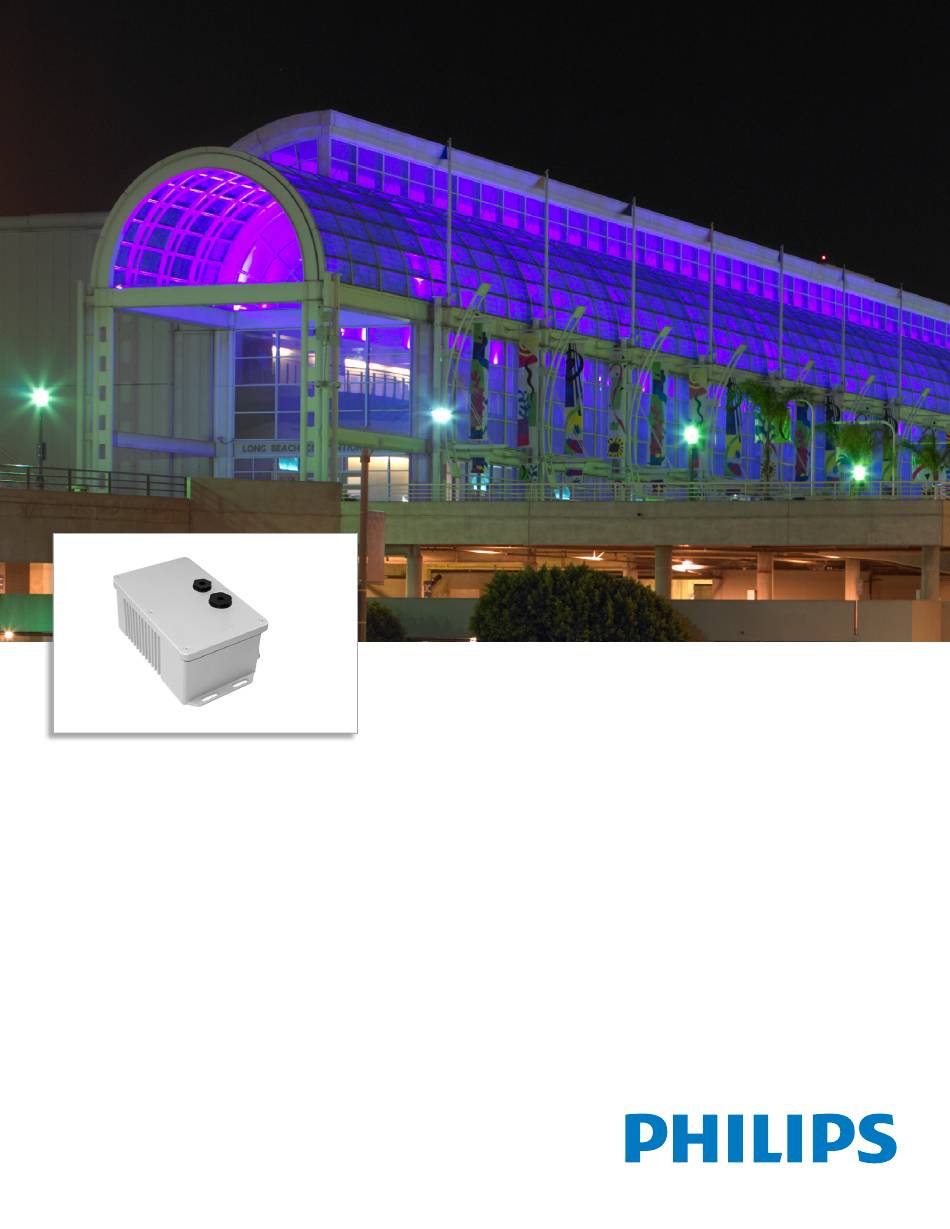

- Page 1 PDS-60 Versatile power/data supply for indoor and outdoor applications...
- Page 2 Versatile power/data supply for indoor and outdoor applications PDS-60 24 V Pre-programmed is a versatile power/data supply designed for indoor and outdoor LED lighting installations using luminaires from Philips Color Kinetics. • PDS-60 24 V accommodates input voltages • Instead of attaching luminaires to a Pre- ranging from 100 VAC to 240 VAC.
-
Page 3: Specifications
24 VDC, 62 W maximum Fuse Rating (2) 4 A, 5 x 20 fast blow fuses Threaded Openings 19 mm (0.75 in), 13 mm (0.5 in) NPT Philips full range of controllers, PDS-60 third-party DMX controllers, or DMX/Ethernet KiNET-compatible* third-party... -
Page 4: Plan The Installation
PDS-60 devices. For additional devices in a network, use additional Ethernet switch ports. In an Ethernet environment, each Philips Color Kinetics power/data supply has a unique IP address. Each luminaire connected to the device is automatically assigned unique identifiers that controllers use to identify and manage each luminaire. - Page 5 Maximum data cable lengths are 100 m (328 ft) between Ethernet devices without a Power/ repeater. Controller Data Supply 100 m (328 ft) Max Light System Ethernet maximum data run length Manager ColorBlast 12 Ethernet Switch Power/ Controller Data Supply 305 m (1,000 ft) Max PDS-60 24 V DMX/Ethernet...
- Page 6 Mount the PDS-60 Make sure that there is adequate space Make sure line power is OFF before mounting and connecting. A power screwdriver is to make all connections to the top and side recommended. of the device. Position the PDS-60 device in its designated mounting location. Make sure the Make sure that the device is securely mounting location is flat, suitable for the mounting hardware, and clear of debris attached and free of excessive vibration.
- Page 7 Prepare Cable Connections Using a Philips screwdriver, loosen the housing cover’s six screws to open the PDS-60 housing. Identify which openings to use for power and data cables, and using an 8 mm hex wrench or adjustable wrench, place the included sealing plugs and rings in the unused openings.
- Page 8 Connect Luminaires to PDS-60 Ground Make sure line power is OFF before connecting luminaires. 1. If necessary, prepare each of the luminaire’s leader cables by cutting the cable jacket to expose the luminaire wire and then stripping the jacket from the wire. 2.
- Page 9 Connect the PDS-60 to Line Power Make sure line power is OFF before connecting it to the PDS-60. The device arrives with line, neutral, and ground wires in the form of flying leads ready for connection in the power connection chamber. You connect line power to the leads by using the included push wire connectors.
- Page 10 Display Light Effects (Pre-Programmed Only) If you have the pre-programmed version of the PDS-60, you are able to display effects on your luminaires without a controller. Pre-programmed devices cannot DMX/ETHERNET receive signals from external controllers, but they can send light show data to other downstream DMX-based power/data supplies via the DMX OUT port.
-
Page 11: Status Indicators
Addressing and Controlling Luminaires PDS-60 devices use DMX addresses to communicate with connected luminaires. Each node receives three sequential DMX addresses, one for the red channel, one for the green channel, and one for the blue channel. When using a PDS-60 device in a DMX or an Ethernet network, you assign luminaires start DMX addresses using controller DMX IN DMX OUT... -
Page 12: Replacing Fuses
Optibin, Powercore and PureGlow are either registered trademarks or Burlington, Massachusetts 01803 USA trademarks of Philips Lighting Holding B.V. in the United States and/or other countries. Tel 888.385.5742 All other brand or product names are trademarks or registered trademarks of their Tel 617.423.9999...
