Appendix A

GPS Antenna System Configuration

A GPS antenna system requiring outdoor installation or longer cable runs is
configured as shown below.
Table 28. GPS Antenna System Configuration
Category
GPS antenna
GPS line amplifier (option)
GPS (lightning) arrestor

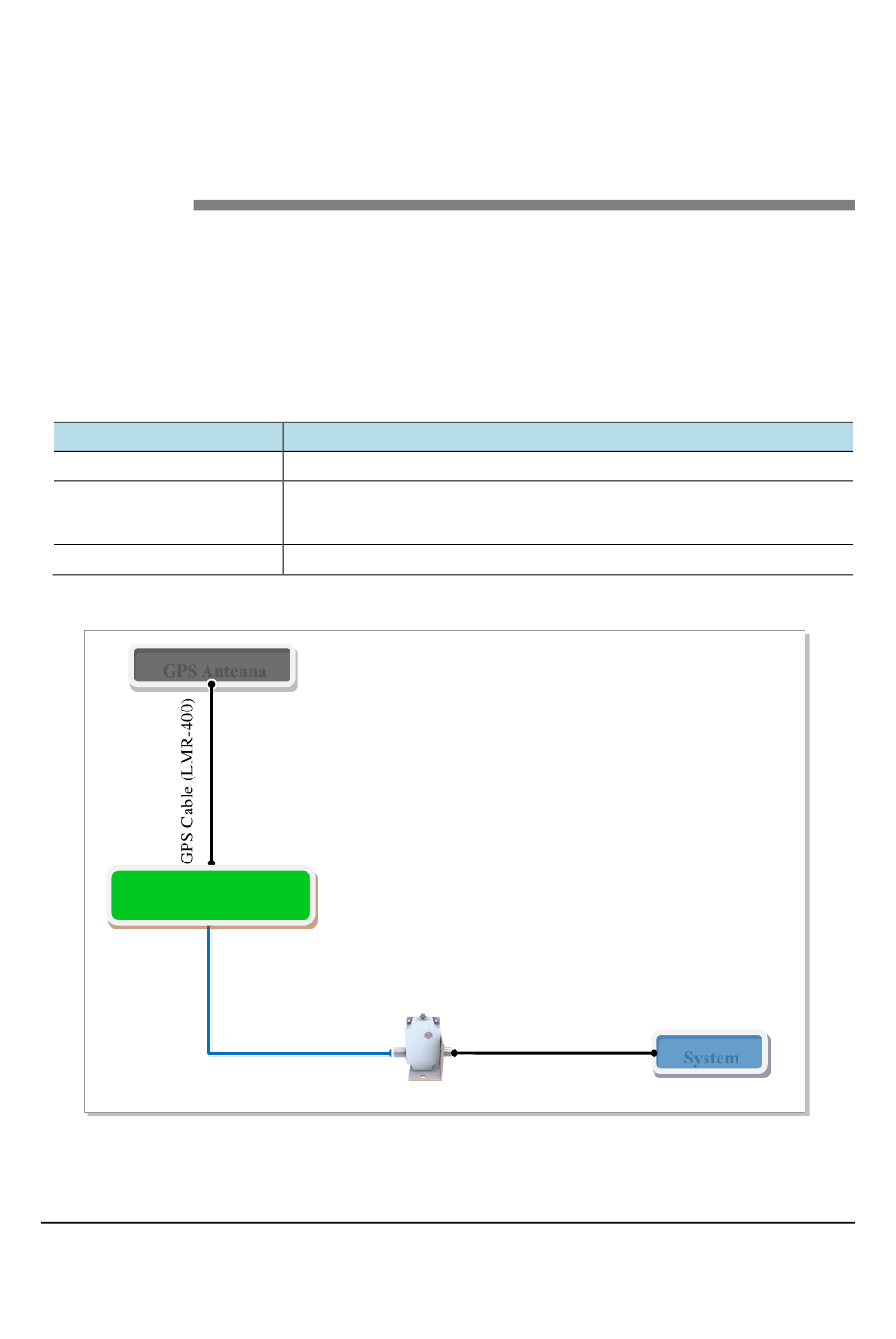

Figure 47. Example of a Common GPS Antenna System Configuration
GPS Antenna
Line Amplifier
To satisfy the GPS specifications and operate the GPS antenna in a stable manner,
the following GPS antenna configuration and installation requirements must be
met.
Verizon 4G LTE Network Extender 2 for Enterprise User Guide v1. 0
Copyright © 2019, All Rights Reserved.
Description
Device receiving a signal from a GPS satellite
Device amplifying the GPS signal received from the GPS antenna (used to
compensate the GPS signal loss caused by GPS antenna, GPS arrestor,
cable and connector)
Device protecting people or system from lightning
GPS Arrestor
GPS Cable (RG-316D)
Outdoor GPS
Antenna
Installation
System
