Dell Precision 3540 Service Manual

Hide thumbs Also See for Precision 3540:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

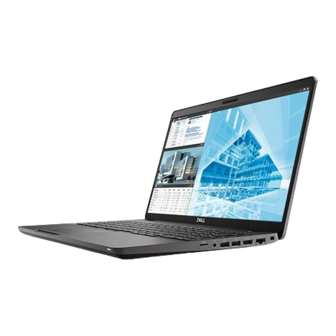

Dell Precision 3540
Service Manual
Regulatory Model: P80F
Regulatory Type: P80F001

Advertisement

Table of Contents
loading

Related Manuals for Dell Precision 3540

Summary of Contents for Dell Precision 3540

  • Page 1 Dell Precision 3540 Service Manual Regulatory Model: P80F Regulatory Type: P80F001...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents 1 Working on your computer..........................6 Safety instructions................................6 Before working inside your computer........................6 Safety precautions............................... 7 Electrostatic discharge—ESD protection......................... 7 ESD field service kit ..............................8 Transporting sensitive components........................... 9 After working inside your computer...........................9 2 Technology and components........................10 USB features..................................
  • Page 4 Installing the memory..............................29 WLAN card..................................30 Removing the wireless card............................30 Installing the wireless card............................31 Solid state drive................................32 Removing the Solid state drive..........................32 Installing the solid state drive........................... 33 Solid state drive bracket..............................34 Removing the solid state drive bracket........................34 Installing the solid state drive bracket........................
  • Page 5 Palmrest assembly................................111 Replacing the palmrest and keyboard assembly....................111 4 Troubleshooting............................113 Enhanced Pre-Boot System Assessment (ePSA) diagnostics.................. 113 Running the ePSA diagnostics..........................113 System diagnostic lights..............................113 WiFi power cycle................................114 5 Getting help..............................116 Contacting Dell................................116 Contents...

  • Page 6: Working On Your Computer

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

  • Page 7: Safety Precautions

    Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.

  • Page 8: Esd Field Service Kit

    It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while performing service and that they use anti-static bags for transporting sensitive components.

  • Page 9: Transporting Sensitive Components

    Transporting sensitive components When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport. Lifting equipment Adhere to the following guidelines when lifting heavy weight equipment: CAUTION: Do not lift greater than 50 pounds.

  • Page 10: Technology And Components

    Technology and components This chapter details the technology and components available in the system. Topics: • USB features • USB Type-C • HDMI 1.4a • Power button LED behavior USB features Universal Serial Bus, or USB, was introduced in 1996. It dramatically simplified the connection between host computers and peripheral devices like mice, keyboards, external drivers, and printers.

  • Page 11: Speed

    Speed Currently, there are 3 speed modes defined by the latest USB 3.0/USB 3.1 Gen 1 specification. They are Super-Speed, Hi-Speed and Full- Speed. The new SuperSpeed mode has a transfer rate of 4.8Gbps. While the specification retains Hi-Speed, and Full-Speed USB mode, commonly known as USB 2.0 and 1.1 respectively, the slower modes still operate at 480Mbps and 12Mbps respectively and are kept to maintain backward compatibility.

  • Page 12: Compatibility

    • USB 3.0/USB 3.1 Gen 1 RAIDs • Optical Media Drives • Multimedia Devices • Networking • USB 3.0/USB 3.1 Gen 1 Adapter Cards & Hubs Compatibility The good news is that USB 3.0/USB 3.1 Gen 1 has been carefully planned from the start to peacefully co-exist with USB 2.0. First of all, while USB 3.0/USB 3.1 Gen 1 specifies new physical connections and thus new cables to take advantage of the higher speed capability of the new protocol, the connector itself remains the same rectangular shape with the four USB 2.0 contacts in the exact same location as before.

  • Page 13: Thunderbolt Over Usb Type-C

    underlying technology could just be USB 2 or USB 3.0. In fact, Nokia's N1 Android tablet uses a USB Type-C connector, but underneath it's all USB 2.0 — not even USB 3.0. However, these technologies are closely related. Thunderbolt over USB Type-C Thunderbolt is a hardware interface that combines data, video, audio, and power in a single connection.

  • Page 14: Thunderbolt Icons

    Thunderbolt Icons Figure 2. Thunderbolt Iconography Variations HDMI 1.4a This topic explains the HDMI 1.4a and its features along with the advantages. HDMI (High-Definition Multimedia Interface) is an industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any compatible digital audio/video source, such as a DVD player, or A/V receiver and a compatible digital audio and/or video monitor, such as a digital TV (DTV).

  • Page 15: Power Button Led Behavior

    Power button LED behavior On certain Dell Latitude systems, the power button LED is used to provide an indication of the system status, and as a result the power button illuminates when pressed. The systems with the optional power button/fingerprint reader will have no LED under the power button and hence will apply the available LED's in the system to provide an indication of the system status.
  • Page 16 Power button with fingerprint reader will have no LED and will leverage the available LED's in the system to provide indication of the system status • Power Adapter LED: – The LED on Power adapter connector illuminates white when power is supplied from electrical outlet. •...

  • Page 17: Disassembly And Reassembly

    Disassembly and reassembly microSD card Removing microSD card Follow the procedure in Before working inside your computer. Press in on the microSD card [1] and remove it from the computer [2]. Installing microSD card Step Slide the SD card into its slot until it clicks into place [1, 2]. Disassembly and reassembly...

  • Page 18: Base Cover

    Next step Follow the procedure in after working inside your computer. Base cover Removing the base cover Prerequisites Follow the procedure in before working inside your computer. Remove the microSD card. Steps Loosen the eight captive screws that secure the base cover to the computer. Disassembly and reassembly...
  • Page 19 Pry the base cover from the edge using a plastic scribe [1, 2]. Disassembly and reassembly...
  • Page 20 NOTE: While removing the base cover, on-site technicians must take care to remove the base cover carefully. There are prying recess points next to the left and right hinges which ease the disassembly procedure. With the help of a plastic scribe, pry open from the top left side of the base cover, continue working your way around the left and right side of the base cover, then remove the base cover from the system.

  • Page 21: Installing The Base Cover

    Installing the base cover Steps Align the base cover on the computer and press the edges of the cover until it clicks into place. Disassembly and reassembly...
  • Page 22 Press down on the edges pf the base cover till clicks in place. Disassembly and reassembly...
  • Page 23 Tighten the eight captive screws to secure the base cover to the computer. Disassembly and reassembly...

  • Page 24: Battery

    If a battery gets stuck in a device as a result of swelling, do not try to free it as puncturing, bending, or crushing a Lithium-ion battery can be dangerous. In such an instance, the entire system should be replaced. Contact https://www.dell.com/support assistance and further instructions. • Always purchase genuine batteries from https://www.dell.com or authorized Dell partners and re-sellers. Disassembly and reassembly...

  • Page 25: Removing The Battery

    Removing the battery Prerequisites Follow the procedure in before working inside your computer Remove the microSD card. Remove the base cover. Steps Disconnect the battery cable from the connector in the system board. Remove the one (M2.0x4.0) screw that secures the battery to the palmrest [1]. Remove the battery from the computer [2].

  • Page 26: Installing The Battery

    Installing the battery Steps Align the battery into the slot on the computer [1] and replace the single (M2.0x4.0) screw to secure the battery to the palmrest [2]. Disassembly and reassembly...
  • Page 27 Reconnect the battery cable to the connector on the system board. Disassembly and reassembly...

  • Page 28: Memory Modules

    Next steps Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Memory modules Removing the memory Prerequisites Follow the procedure in before working inside your computer Remove the microSD card. Remove the base cover.

  • Page 29: Installing The Memory

    Installing the memory Step Align the memory and slide it into the slot on the computer [1] and gently press down on the memory module till it locks into the latches [2]. Disassembly and reassembly...

  • Page 30: Wlan Card

    Next steps Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. WLAN card Removing the wireless card Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.

  • Page 31: Installing The Wireless Card

    Installing the wireless card Steps Slide the wireless card into the slot on the computer [1] and reconnect the wireless antennas to the card [2]. Replace the wireless bracket on the card [3] and secure it with the single screw to the computer [4]. Disassembly and reassembly...

  • Page 32: Solid State Drive

    Next steps Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Solid state drive Removing the Solid state drive Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.

  • Page 33: Installing The Solid State Drive

    Turn the metal bracket over and detach the ssd module from the thermal pad on the metal bracket. Installing the solid state drive Steps Affix the ssd module on the metal bracket [1] and slide the module into the connector on the computer [2]. Replace the two screws to secure the module on the computer [3].

  • Page 34: Solid State Drive Bracket

    Next steps Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Solid state drive bracket Removing the solid state drive bracket Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.

  • Page 35: Installing The Solid State Drive Bracket

    Installing the solid state drive bracket Step Align the bracket and insert it into the slot on the computer [1] and replace the single screw that secures the bracket to the computer [2]. Disassembly and reassembly...

  • Page 36: Palmrest Bracket

    Next steps Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Palmrest bracket Removing the palmrest bracket Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.
  • Page 37 Remove the four (M2x5) and six (M2x3) screws that secure the palmrest bracket to the computer [1,2] and lift the bracket away from the computer [3]. Disassembly and reassembly...

  • Page 38: Installing The Palmrest Bracket

    Installing the palmrest bracket Steps Align and insert the palmrest bracket into the computer [1]. Replace the four (M2x5) screws and six (M2x3) to secure the palmrest bracket to the computer [2,3]. Disassembly and reassembly...
  • Page 39 Re-route the wireless antennas and the speaker cable through the routing clips [1,2]. Reconnect the speaker cable to the system board [3]. Disassembly and reassembly...

  • Page 40: Speaker

    Next steps Install the bracket. Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Speaker Removing the speakers Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.
  • Page 41 Steps Remove the one (M2x2.5) screw that secures the LED board to the computer [1]. Lift and flip the LED board over to access the speaker cables [2]. Un-route the speaker cables from the routing clips on the computer chassis. Disassembly and reassembly...
  • Page 42 Lift the speaker up out of the computer. Disassembly and reassembly...

  • Page 43: Installing The Speakers

    Installing the speakers Steps Align and place the holes on the speaker module with the pins located on the computer chassis. Disassembly and reassembly...
  • Page 44 Re-route the speaker cables through the routing clips on the computer chassis Disassembly and reassembly...
  • Page 45 Reseat the LED board [1]. Replace the one (M2x2.5) to secure the LED board to the computer [2]. Disassembly and reassembly...

  • Page 46: Heat Sink

    Next steps Install the palmrest bracket. Install the bracket. Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Heat sink Removing the Heatsink Prerequisites Follow the procedure in before working inside your computer Remove the microSD...
  • Page 47 Remove the seven (M2x3) screws and the two (M2x5) screws as per the numerical callout on the Heatsink [1]. Lift the Heatsink out of the computer [2]. Disassembly and reassembly...

  • Page 48: Installing The Heatsink

    Installing the Heatsink Steps Align and place the Heatsink over the screw holes on the computer [1]. Replace the seven (M2x3) and (M2x5) screws as per the callouts on the Heatsink [2]. Disassembly and reassembly...
  • Page 49 Re-connect the Heatsink fan cable to the connector on the system board. Disassembly and reassembly...

  • Page 50: System Fan

    Next steps Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. System fan Removing the system fan Prerequisites Follow the procedure in before working inside your computer. Remove the microSD card.
  • Page 51 Remove the two (M2x5) screws that secure the system fan to the palmrest [1]. Lift the system fan away from the computer [2]. Disassembly and reassembly...

  • Page 52: Installing The System Fan

    Installing the system fan Steps Place and align the screw holes on the system fan with the screw holes on to the palmrest [1]. Replace the two (M2x5) screws to secure the system fan to the palmrest [2]. Disassembly and reassembly...
  • Page 53 Connect the system fan cable to the connector on the system board. Disassembly and reassembly...

  • Page 54: Power-Adapter Port

    Next steps Replace the battery. Replace the base cover. Replace the microSD card. Follow the procedure in after working inside your computer. Power-adapter port Removing the DC-in port Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.
  • Page 55 Disconnect the DC-in port cable from the connector on the system board and remove it from the computer [1,2]. Disassembly and reassembly...

  • Page 56: Installing The Dc-In Port

    Installing the DC-in port Steps Insert the DC-in port into the computer [1]. Reconnect the DC-in port cable to the connector on the system board [2]. Disassembly and reassembly...
  • Page 57 Place the Type-C bracket on top of the DC-in port [1]. Replace the two (M2x5) screws to secure the Type-C on the computer [2]. Disassembly and reassembly...

  • Page 58: Led Board

    Next steps Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. LED board Removing the LED board Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.
  • Page 59 Unlock and disconnect the LED board cable from the system board [1]. Un-route the LED board cable from the computer chassis [2]. Disassembly and reassembly...
  • Page 60 Remove the single (M2x2.5) screw and lift the LED board out of the computer [1,2]. Disassembly and reassembly...

  • Page 61: Installing The Led Board

    Installing the LED board Steps Reseat the LED board in its place and secure it with the single (M2x2.5) screw to the computer [1,2]. Disassembly and reassembly...
  • Page 62 Connect the LED board cable to the system board and re-route it on the computer chassis [1,2] Disassembly and reassembly...
  • Page 63 Gently fold the fold the USH cable as shown [1]. Re-connect the USH cable to the palmrest and secure the lock [2]. Disassembly and reassembly...

  • Page 64: Touchpad

    Next steps Install the palmrest bracket. Install the bracket. Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Touchpad Removing the touchpad button Prerequisites Follow the procedure in before working inside your computer Remove the microSD...
  • Page 65 Steps Disconnect the smart card reader cable and unroute the cable [1,2]. Disconnect the touchpad cable from the connector [3]. Remove the two (M2x3) screws and left the touchpad away from the computer [1,2]. Disassembly and reassembly...

  • Page 66: Installing The Touchpad Buttons Board

    Installing the touchpad buttons board Steps Align and place touchpad with the computer chassis [1]. Replace the two (M2x3) screws that secure the touchpad to the computer [2]. Disassembly and reassembly...
  • Page 67 Re-connect the smart card reader cables and press it down to the computer chassis [1,2]. Re-connect the touchpad cable to the palmrest [3]. Disassembly and reassembly...

  • Page 68: System Board

    Next steps Install the palmrest bracket. Install the bracket. Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. System board Removing the system board Prerequisites Follow the procedure in before working inside your computer Remove the microSD...
  • Page 69 Remove the heatsink. Steps Press the lock and release the card slot tray [1,2]. Unlock and disconnect the LED board, USH and the touchpad cables from the connectors on the system board[3,4,5]. Remove the single screw securing the metal bracket to the computer [1] and lift it away from the computer [2]. Disconnect the fingerprint reader cable from the system board connector [3].
  • Page 70 Remove the five (M2x3) screws that secure the system board to the computer [1]. Lift the system board out of the computer [2]. Disassembly and reassembly...

  • Page 71: Installing The System Board

    Installing the system board Steps Align and place the system board on the computer chassis [1]. Replace the five (M2x3) screws to secure the system board to the computer [2]. Disassembly and reassembly...
  • Page 72 Re-connect the display cable [1]. Place the display cable bracket and secure it with the two (M2x2.5) screws [2,3]. Disassembly and reassembly...
  • Page 73 Replace the card slot tray [1]. Re-connect the LED board, USH and touchpad cables to the connector on the system board [2,3,4]. Disassembly and reassembly...

  • Page 74: Coin-Cell Battery

    Next steps Install the heatsink. Install the board. Install the palmrest bracket. Install the bracket. Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Coin-cell battery Removing the coin cell battery Prerequisites Follow the procedure in...

  • Page 75: Installing The Coin Cell Battery

    Remove the microSD card. Remove the base cover. Remove the battery. Step Disconnect the coin cell cable from the connector on the system board [1] and lift it out of the computer [2]. Installing the coin cell battery Step Affix the coin cell battery back on the computer [1] and reconnect the coin cell battery cable to the connector on the system board [2].

  • Page 76: Display Assembly

    Next steps Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Display assembly Removing the LCD assembly Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.
  • Page 77 Open the system to 180 degrees and place the computer on a flat surface, with the display hinges facing up. Disassembly and reassembly...
  • Page 78 Remove the six (M2.5x5.0) display hinge bracket screws that secure the display assembly to the system [1]. Lift the display assembly away from the system [2]. Disassembly and reassembly...

  • Page 79: Installing The Lcd Assembly

    Installing the LCD assembly Steps Place the chassis on a plane surface. Align the display assembly with the screw holders on the system [1]. Replace the six (M2.5x5.0) display hinge screws that secure the display assembly to the system [2]. Disassembly and reassembly...
  • Page 80 Carefully close the LCD screen. Disassembly and reassembly...
  • Page 81 Re-route the wireless antennas [1]. Re-connect the display cable to the connector on the system board [2]. Place the display cable bracket and secure it with the two (M2x3) screws [3,4]. Disassembly and reassembly...

  • Page 82: Keyboard Lattice And Keyboard

    Next steps Install theWLAN card. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Keyboard lattice and Keyboard Removing the keyboard Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.
  • Page 83 Remove the WLAN card. Remove the system board. Steps Disconnect the backlit cable and the keyboard cable from the touchpad. Remove the nineteen (M2x2) screws that secure the keyboard [1]. Lift the keyboard away from the computer [2]. Disassembly and reassembly...

  • Page 84: Installing The Keyboard

    Installing the keyboard Steps Align and place the keyboard on the computer chassis [1]. Replace the nineteen (M2x2) screws to secure the keyboard to the computer [2]. Disassembly and reassembly...
  • Page 85 Reconnect the backlit cable and the keyboard cable to the touchpad. Disassembly and reassembly...

  • Page 86: Keyboard Bracket

    Next steps Install the system board. Install theWLAN card. Install the Dc-in. Install thememory module. Install the heatsink. Install the palmrest bracket. Install the bracket. Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer.
  • Page 87 Remove the battery. Remove the ssd. Remove the bracket. Remove the palmrest bracket. Remove the board. Remove the speaker. Remove the heatsink. Remove the memory module. Remove the DC-in Remove the WLAN card. Remove the system board. Remove the coin cell battery.

  • Page 88: Installing The Keyboard Bracket

    Installing the keyboard bracket Steps Align and place the keyboard on the keyboard bracket [1]. Replace the 12 (M2x2) screws to secure the keyboard on the keyboard bracket [2]. Next steps Install the SmartCard reader board. Install the keyboard. Install the coin cell battery.

  • Page 89: Smart Card Reader Board

    Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Smart card reader board Removing the smart card reader Prerequisites Follow the procedure in before working inside your computer Remove the microSD card.

  • Page 90: Installing The Smart Card Reader

    Installing the smart card reader Steps Align and place the smart card reader module into the computer chassis [1]. Replace the four (M2x2.5) screws to secure the smart card reader module to the computer [2]. Disassembly and reassembly...
  • Page 91 Re-connect the smart card reader cable to the system board and secure the cable to the computer [1,2]. Disassembly and reassembly...

  • Page 92: Display Bezel

    Next steps Install the palmrest bracket. Install the bracket. Install the ssd. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Display bezel Removing the display bezel Prerequisites Follow the procedure in before working inside your computer Remove the microSD...
  • Page 93 Steps NOTE: Display bezel cannot be reused after being removed. Use a plastic scribe to carefully pry open the recesses near the left and right hinges on the bottom edge of the display bezel [1]. Carefully pry open the inside edge of the display bezel and then pry open the inside edge of the left and right sides of the display bezel [2].

  • Page 94: Installing The Display Bezel

    Installing the display bezel Steps Align and place the display bezel on the display assembly. Disassembly and reassembly...
  • Page 95 Gently snap the display bezel into place. Disassembly and reassembly...

  • Page 96: Hinge Caps

    Next steps Install the display assembly. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Hinge caps Removing hinge caps Prerequisites Follow the procedure in before working inside your computer.

  • Page 97: Installing Hinge Caps

    Installing hinge caps Steps Place the hinge caps and slide outward on the display hinges [1]. Replace the two (M2x2.5) screws to secure the hinge caps to the display hinge [2]. Disassembly and reassembly...

  • Page 98: Display Hinges

    Next steps Install the display bezel. Install the display assembly. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Display hinges Removing display hinge Prerequisites Follow the procedure in before working inside your computer.

  • Page 99: Installing Display Hinge

    Remove the hinge caps. Steps Remove the four (M2.5x3.5) screws that secure the display hinge to the display assembly [1]. Remove the display hinges from the display back cover [2]. Installing display hinge Steps Align and place the display hinge on the display assembly. Replace the four (M2.5x3.5) screws to secure the display hinge to the display assembly.

  • Page 100: Display Panel

    Next steps Install the hinge caps. Install the display bezel. Install the display assembly. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Display panel Removing display panel Prerequisites Follow the procedure in before working inside your computer.
  • Page 101 Remove the display bezel. Remove the hinge caps. Remove the display hinges. Steps Remove the four (M2x2) screws that secure the display panel to the display assembly [1] and lift to turn over the display panel to access the display cable [2]. Peel the conductive tape [1] on the display cable connector.
  • Page 102 Disassembly and reassembly...

  • Page 103: Installing Display Panel

    Installing display panel Steps Connect the display cable to the connector and close the latch [1, 2]. Adhere the adhesive strip to secure the display cable connector [3]. Adhere the conductive tape to secure the display cable connector [4]. Disassembly and reassembly...
  • Page 104 Replace the four (M2x2) screws that secure the display panel to the display assembly. Disassembly and reassembly...

  • Page 105: Camera

    Next steps Install the display hinges. Install the hinge caps. Install the display bezel. Install the display assembly. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer. Camera Removing camera Prerequisites Follow the procedure in before working inside your...

  • Page 106: Installing The Camera

    Remove the display assembly Remove the display bezel. Remove the hinge caps. Remove the display hinges. Remove the display panel. Steps Peel the two conductive tape that secures the camera in place [1]. Using a plastic scribe carefully pry and lift the camera module from the display back cover [2]. Disconnect the camera cable from the connector on the camera module [3].

  • Page 107: Display (Edp) Cable

    Next steps Install the display panel. Install the display hinges. Install the hinge caps. Install the display bezel. Install the display assembly. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer.

  • Page 108: Installing Display Cable

    Remove the battery. Remove the display assembly Remove the display bezel. Remove the hinge caps. Remove the display hinges. Remove the display panel. Remove the camera. Step Peel the conductive tape and unroute the display cable to release it from the adhesive and lift the display cable from the display back cover.

  • Page 109: Display Back Cover Assembly

    Next steps Install the camera. Install the display panel. Install the display hinges. Install the hinge caps. Install the display bezel. Install the display assembly. Install the battery. Install the base cover. Install the microSD card. Follow the procedure in after working inside your computer.
  • Page 110 Remove the hinge caps. Remove the display hinges. Remove the display panel. Remove the camera. Remove the display cable. About this task After performing the preceding steps, you are left with the display back cover. Next steps Install the display cable.

  • Page 111: Palmrest Assembly

    Palmrest assembly Replacing the palmrest and keyboard assembly Prerequisites Follow the procedure in before working inside your computer. Remove the microSD card. Remove the base cover. Remove the battery. Remove the ssd. Remove the bracket. Remove the palmrest bracket. Remove the board.
  • Page 112 Next steps Install the SmartCard reader board. Install the keyboard. Install the coin cell battery. Install the system board. Install theWLAN card. Install the Dc-in. Install thememory module. Install the heatsink. Install the speaker. Install the board. Install the palmrest bracket.

  • Page 113: Troubleshooting

    Running the ePSA diagnostics Turn on your computer. As the computer boots, press the F12 key as the Dell logo appears. On the boot menu screen, select the Diagnostics option. Click the arrow at the bottom left corner.

  • Page 114: Wifi Power Cycle

    • Computer is running on battery and the battery has more than 5 percent charge. • Computer is in sleep state, hibernation, or turned off. The power and battery-status light blinks amber along with beep codes indicating failures. For example, the power and battery-status light blinks amber two times followed by a pause, and then blinks white three times followed by a pause.
  • Page 115 Turn on the modem. Turn on your computer. Troubleshooting...

  • Page 116: Getting Help

    About this task Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Steps Go to Dell.com/support.
