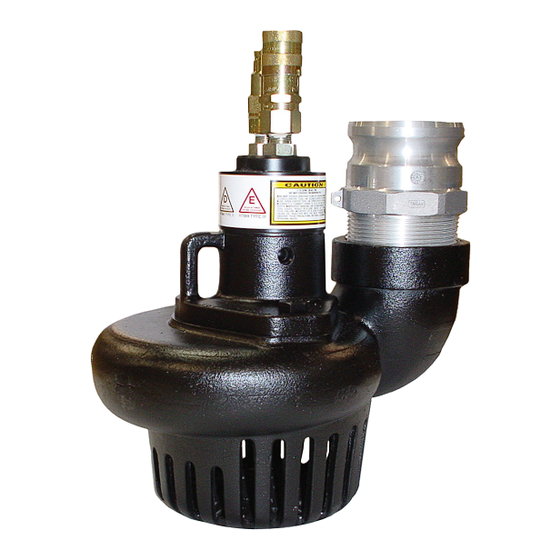

- Page 1 SM50 HYDRAULIC SUMP PUMP USER MANUAL Safety, Operation and Maintenance © 2014 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 52724 4/2019 Ver. 11...
- Page 2 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. SM50 User Manual ◄ 3... -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► SM50 User Manual... -
Page 5: Safety Precautions
140 ° F/60 ° C. Operation at higher oil temperatures space provided in this manual. can cause operator discomfort and may cause The models SM50 Hydraulic Pump will provide safe and damage to the tool. dependable service if operated in accordance with the •... -
Page 6: Tool Stickers & Tags
OPERATION MANUAL. OPERATION MANUAL. TAG TO BE REMOVED ONLY BY TAG TO BE REMOVED ONLY BY TOOL OPERATOR. TOOL OPERATOR. SEE OTHER SIDE SEE OTHER SIDE SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► SM50 User Manual... -
Page 7: Hose Types
This hose is not certifi ed non-conductive and must never be used near electrical conductors. HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► SM50 User Manual... -
Page 9: Htma / Ehtma Requirements
2000 psi 2000 psi (At the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) Note: These are general hydraulic system requirements. See tool specifi cation page for tool specifi c requirements. SM50 User Manual ◄ 9... -
Page 10: Operation
5. When pumping is complete, set the hy draulic control 1. Observe all safety precautions. valve to the “OFF” posi tion. Lift the pump from the Note: The SM50 is not designed for use with a suction work area. pipe inlet. The diameter of the suction screen at... - Page 11 4. Assemble the motor and impeller to the volute. Clean the capscrews and lubricate the threads with underwater grease before installation. 5. Remove all debris from the hose. Otherwise, solids will backfill the pump. SM50 User Manual ◄ 11...
-
Page 12: Tool Protection & Care
This can cause damage to internal seals. not intended. • Always replace hoses, couplings and other parts with replacement parts recommended by STANLEY. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar. 12 ► SM50 User Manual... - Page 13 Poor pump performance Too many solids in the water. Reduce solids content. Increase pump with excessive wear. Water speed out of the hose may speed. be too slow, therefore hose and pump load up with solids. SM50 User Manual ◄ 13...
-
Page 14: Accessories
ACCESSORIES Description Part No. Adapter, 3 in. NPT/3 in. Camlock Male......................52720 Lay-Flat Discharge Hose, 3 in. × 25 ft with Camlock Fittings ................56761 Adapter, 3 in. Female Camlock × Male Fire Hose (nh) Thread .................15248 14 ► SM50 User Manual... -
Page 15: Sm50 Parts Illustration
15-17 Ft. Lbs. (20-23 Nm) 65132 MOTOR ASSEM- BLY USED ON SUMP PUMPS WITH SERIAL NUMBERS 600 AND ABOVE, THIS MOTOR CAN ONLY BE PUR- CHASED AS AN ASSEM- BLY. INDIVIDUAL PARTS ARE NOT AVAILABLE. SM50 User Manual ◄ 15... -
Page 16: Sm50 Parts List
SEAL KIT FOR 65132 MOTOR ASSEMBLY(SERIAL # 600 AND ABOVE) Note: all SM50 pumps with a serial number of 600 and above, come shipped with p/n 65132 motor assembly installed. A separate seal kit 66398 is available for this motor. If you have a SM50 with serial # 599 and below contact STANLEY Customer Service for parts. -
