Removal of Drain Plug (Right / Left Replacement)

6. Removal of Drain Plug (Right / Left Replacement)
Procedure
Step
1 Disconnect the drain
hose.
Pull out the drain plug
2
from the left hole on the
drain pan by hand.
3 Insert the drain hose.
Push the drain plug into
4
the right hole.
16
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.

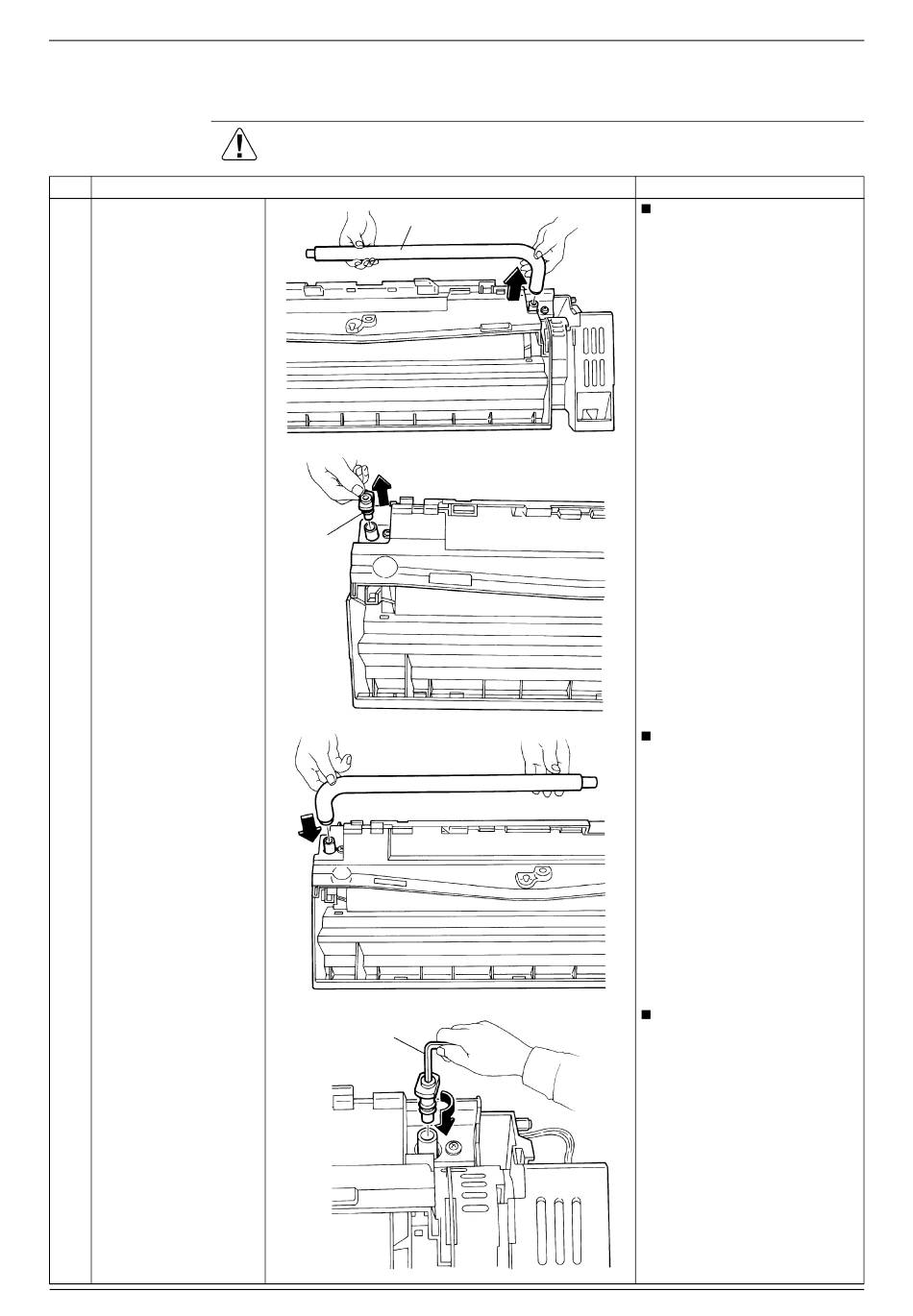

Procedure
Drain hose
Drain
plug
Hexagonal wrench (4 mm)
Points
The drain pan is integrated
with the bottom plate.
(R2552)
(R2553)
Push it into the inner part
firmly.
(R2554)
Push it into the inner part
firmly.
(R18522)
