INSTALLING THE HOUSING ASSEMBLY:
Be sure the bracket is properly and securely
!
mounted to a supporting structure capable of rigidly
holding the weight of the entire unit.
NOTE: This unit is designed for operation in an
upright position. Installing the product upside
down may cause damage to the internal
equipment, and will void the warranty.
1. This unit includes a 1½" NPT housing for a standard 1½"
NPT pipe. The housing can be used with other brackets
designed with 1½" male pipe threads, such as the 25736
wall mount brackets.

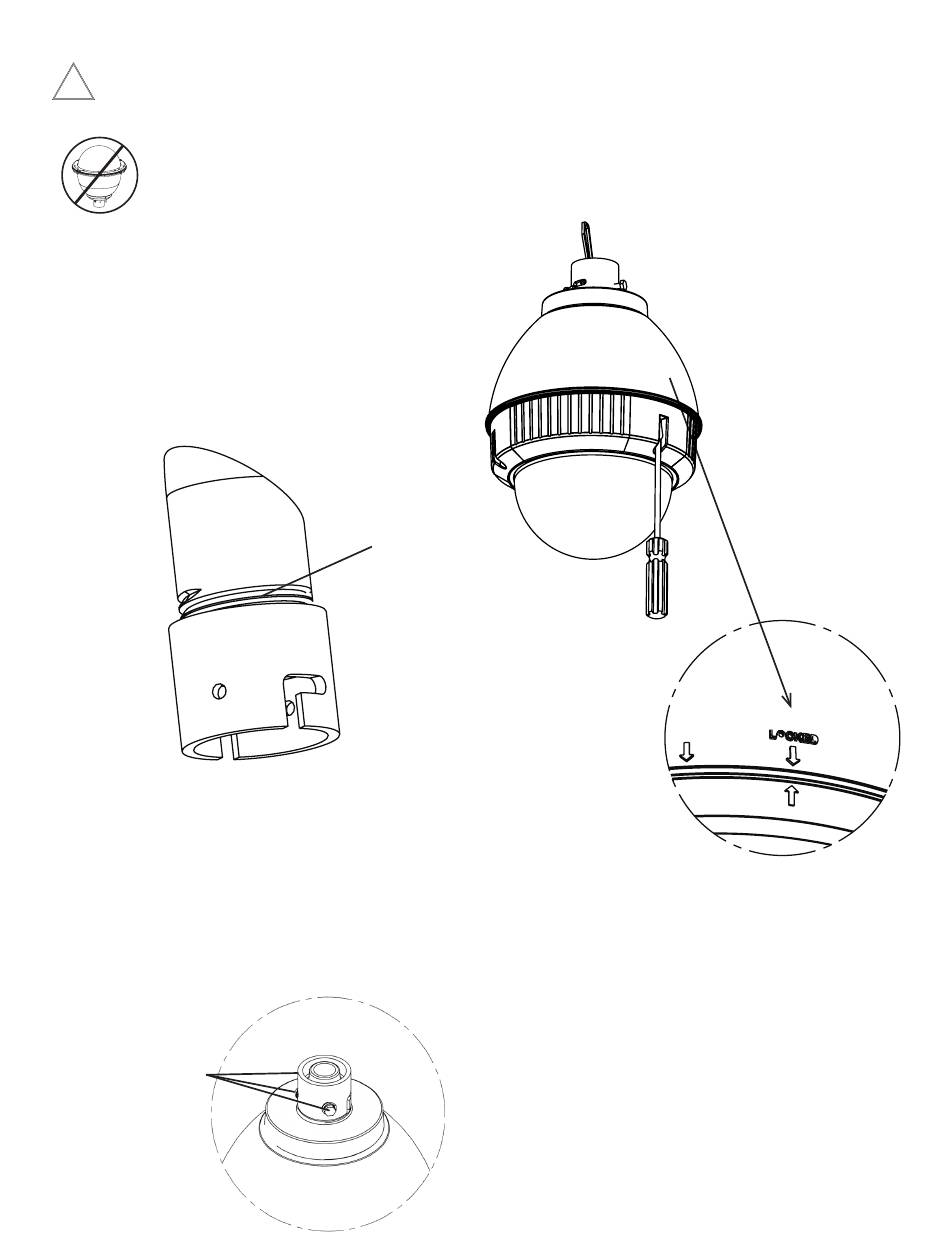

2. Attach the housing coupling (Figure 3).
NOTE: Pipe threads should be clean and rust free.
Use the Teflon
™
the housing on the threads.
Figure 3
3. Mount the housing assembly to the mounting bracket
and housing coupling. A safety cable is included with
the housing to temporarily hold it while making wiring
connections. Loop the safety cable over one of the set
screws on the housing coupling and make the appropriate
connections using the (2) screw-down connectors supplied.
2. Undo the safety cable and twist the housing onto the
housing coupling. Secure all (3) setscrews provided on the
housing coupling (Figure 4).
Set screws
Figure 4
tape included with
Add thread
sealing tape
REMOVING AND ATTACHING THE DOME ASSEMBLY:
1. Attach the dome assembly to the housing top by lining up
the arrow on the dome assembly with the left arrow on the
housing top. Insert the dome assembly into the housing and
then rotate the dome assembly clockwise until the dome
assembly's arrow lines up with the arrow that has the word
locked above it. Then tighten the (3) screws on the front of
the dome assembly.
2. Remove the protective film from the dome.
3. Clean the outside of the dome.
- 1 -
