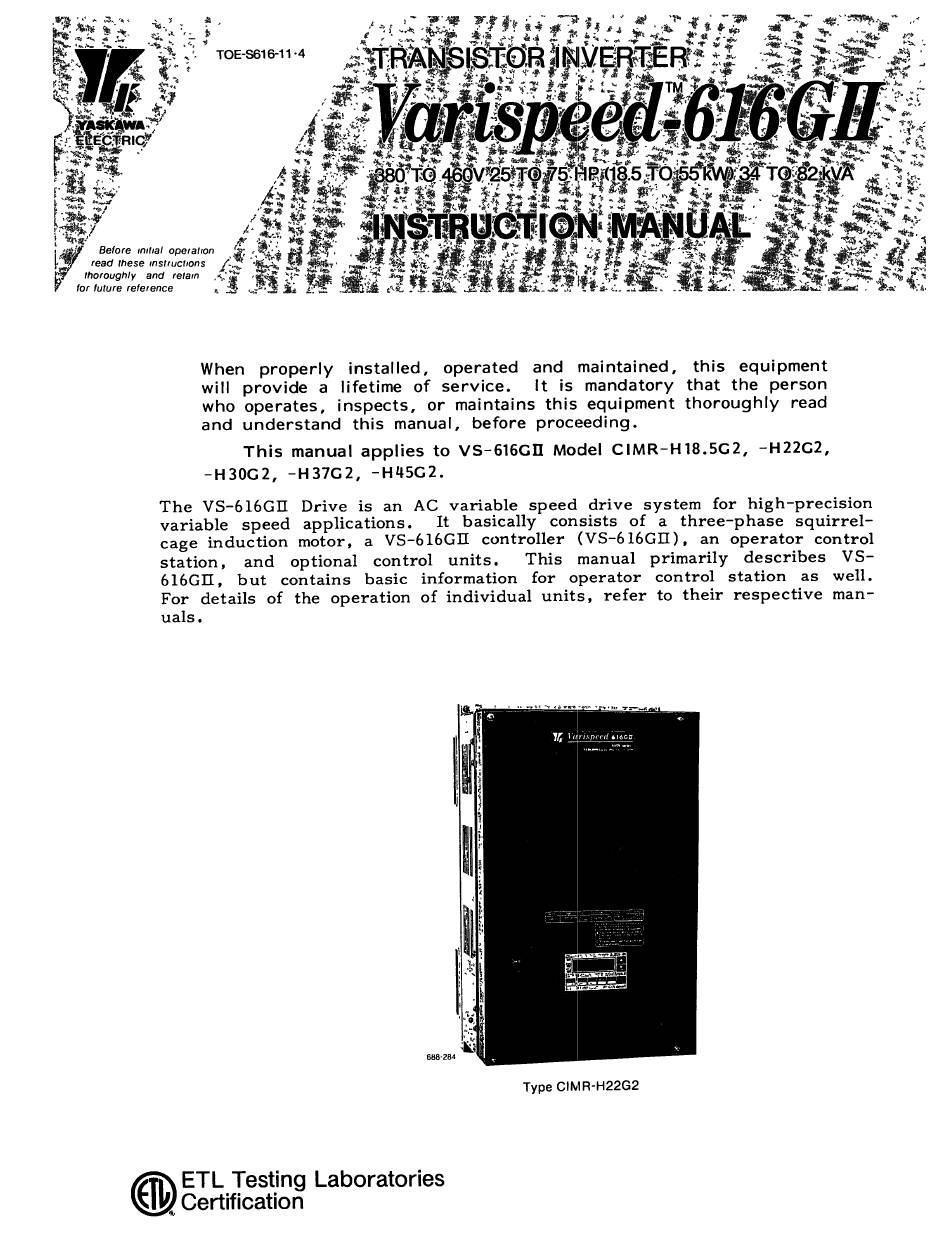

YASKAWA Varispeed-616GII Instruction Manual

< " Before initial operation
rte;
read these instructions
s'
thoroughly and retain
for future reference
688-284
ETL Testing Laboratories
Certification
When properly installed, operated and maintained, this equipment
will provide a lifetime of service .
It is mandatory that the person
who operates, inspects, or maintains this equipment thoroughly read
and understand this manual, before proceeding .
This manual applies to VS-616GII Model CIMR-H18 .5G2, -H22G2,
-H30G2, -H37G2, -H45G2 .
The VS-616GII Drive is an AC variable speed drive system for high-precision
variable speed applications .
It basically consists of a three-phase squirrel-
cage induction motor, a VS-616GII controller (VS-616GII), an operator control
station,
and optional
control units . This
manual primarily describes VS-
616GII, but contains basic information for operator control station as well .
For details of the operation of individual units, refer to their respective man-
uals .
il -1 <-'r' ' -- .RaY
Tr r"~rc : ' P-r

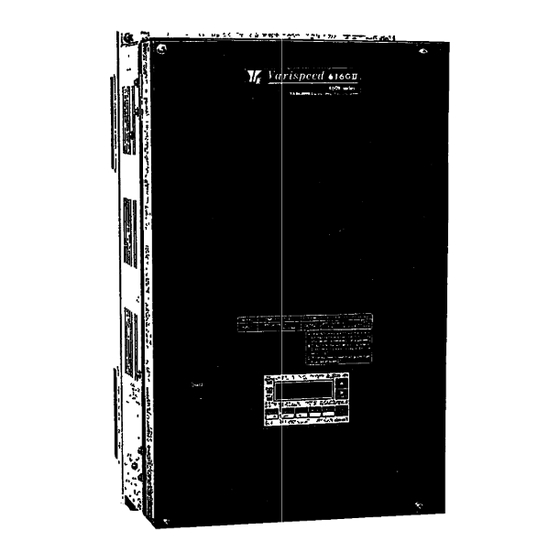

" 16GII
Type CINIR-H22G2
