Denon CDRW-1500 Service Bulletin

_____________________________________________________________
Model:
CDRW-1500
Subject:
Change in the CDRW-1500 Mechanism
Symptom:

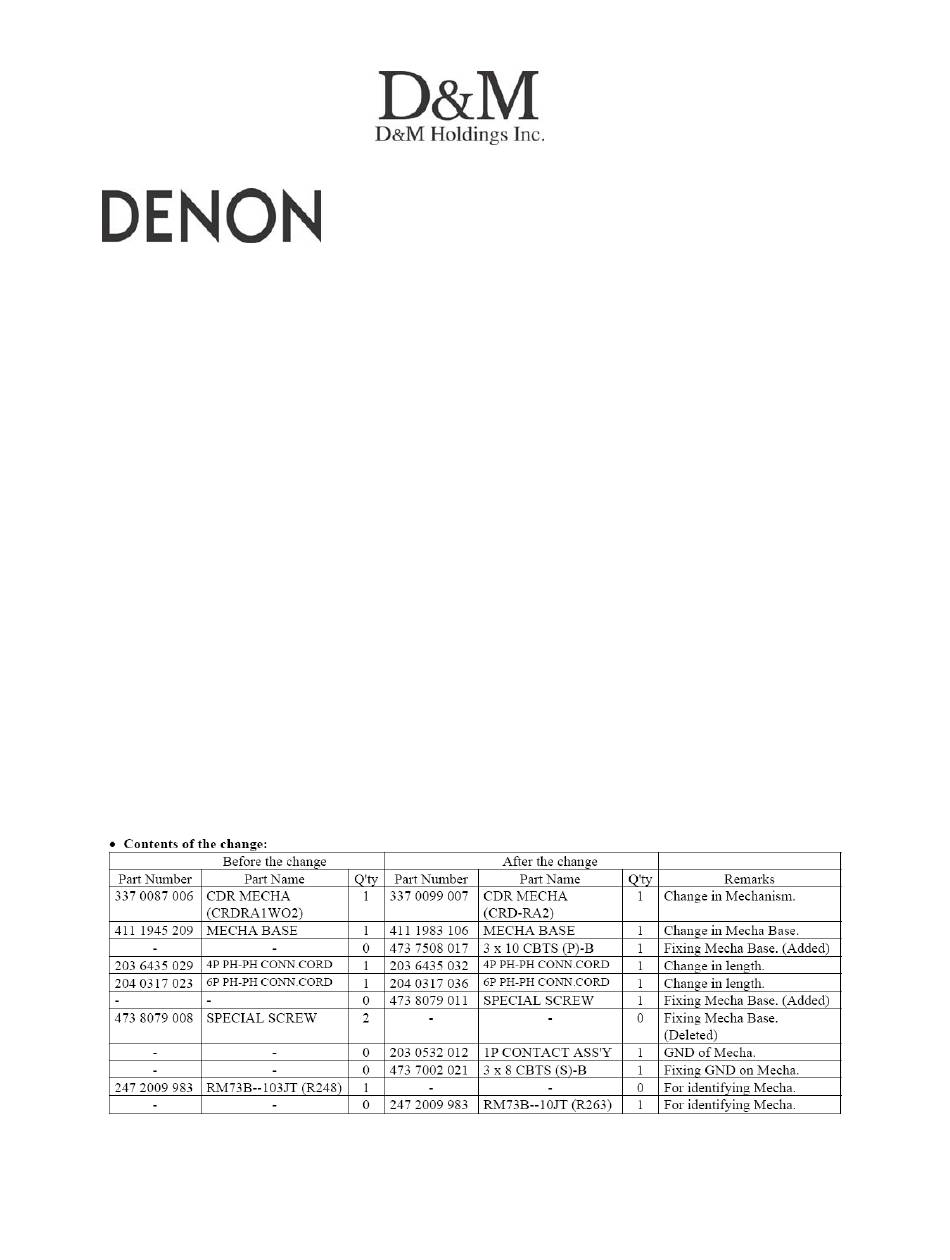

The **CDR Mechanism used for the model CDRW-1500 has been
changed. Other parts will be changed at the same time as shown in the attached
sheets, in accordance with the change in the Mechanism.
** At the right side from the front: CDR MECHA (Ex: CRDRA1WO2)
Solution:
• Please be sure to use the same mechanism and/or parts as the currently
installed ones on the unit you are performing maintenance service on.
• When replacing the P. W. B. Unit, please note that the locations of R248 and
R263 on the P. W. B. Unit (1U-3312-2) they will differ depending on the
production time.
______________________________________________________________________________________
The information contained in this document is intended for the exclusive use by DENON Authorized Service Centers and their
employees. This document may contain information that is privileged, confidential and may be protected from disclosure under
applicable laws and terms of the DENON Service Agreement. Any distribution, disclosure, dissemination or copying of this
document and the information it contains is prohibited. No responsibility will be accepted by DENON for any damage, injury or loss
resulting from the misuse of the information contained in this document.
100 Corporate Drive Mahwah, NJ 07430
CONFIDENTIALITY NOTICE:
Service Bulletin
No. : OST-673
Date:
April 9, 2007
