Canon iR1210 Service Bulletin

Hide thumbs Also See for iR1210:
Table of Contents

Advertisement

Quick Links

MODEL:
LOCATION:
SUBJECT:
Reason :
Measure for noise
Outline :
The gear pulley overlapping the idler gear has a depression on the flange due to
molding. If the shaft leans, and consequently the idler gear is lifted, the idler gear
might come into contact with the depression on the flange, resulting in noise. As
a measure for it, round ribs are added to the top and under surfaces of the 45T
gear (FU3-0076) and to the under surface of the 37T pulley/16T gear
(FU3-0075).

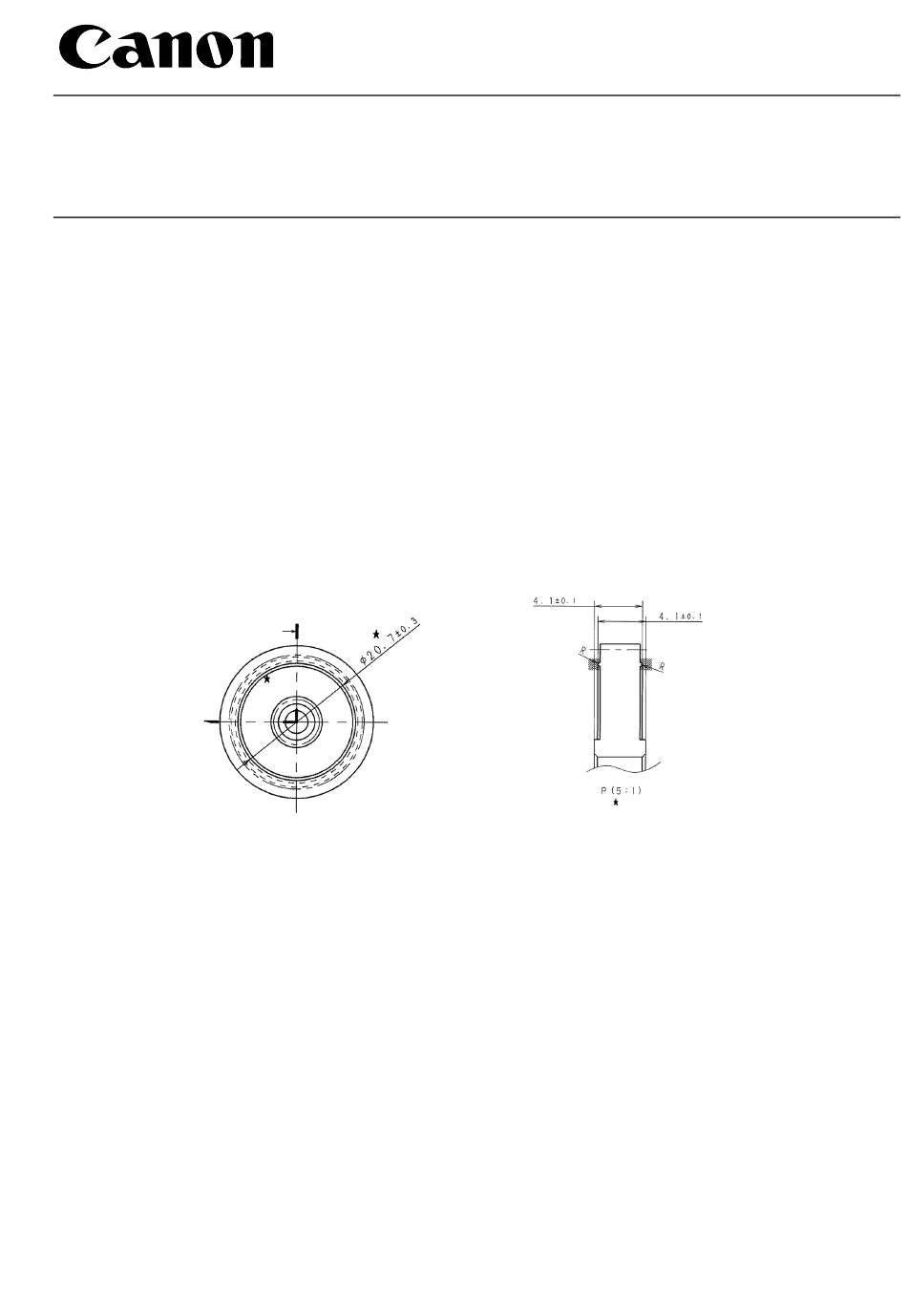

Rib of FU3-0075-020
Be sure to replace the 45T gear (FU3-0076) and the 37T pulley/16T gear
(FU3-0075) at the same time. Upon replacement of these member parts, if you
find the countermeasure mylar, which was a temporary measure, be sure to
remove it.
SERVICE BULLETIN
Issued by Canon Europa N.V.
iR1210, iR1230, iR1270F
READER DRIVE ASSEMBLY
CHANGE OF SHAPES OF MEMBER PARTS
No.:
Date: 27.09.02
Ribs of FU3-0076-020
COPIER
iR1200S-001
(FF-T01-L6-000043-01)
