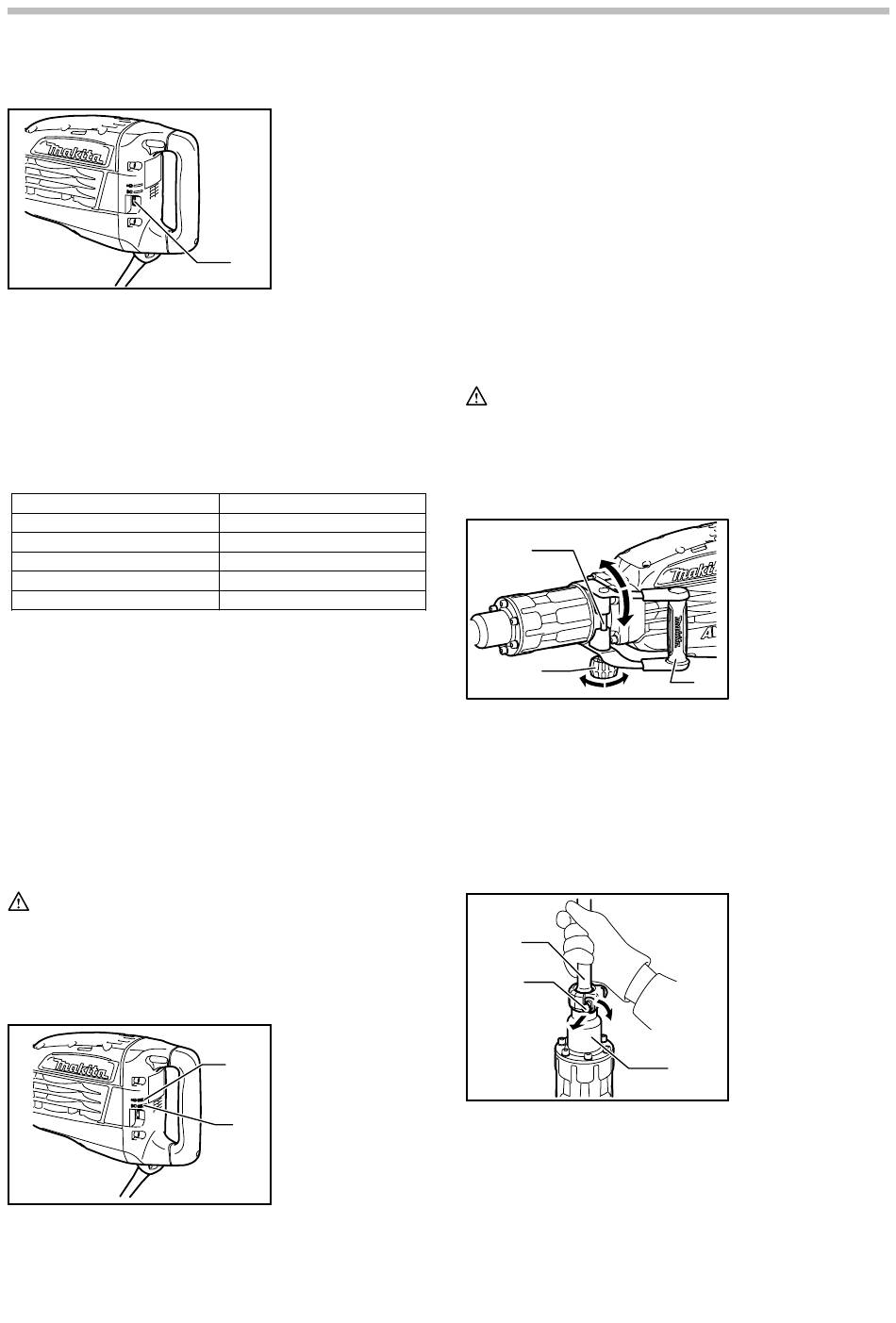

Speed change

010284
The blows per minute can be adjusted just by turning the
adjusting dial. This can be done even while the tool is
running. The dial is marked 1 (lowest speed) to 5 (full
speed).
Refer to the table below for the relationship between the
number settings on the adjusting dial and the blows per
minute.
Number on adjusting dial
5
4
3
2
1
010281
For model HM1317C,HM1317CB only
NOTE:
Blows at no load per minute becomes smaller than
•
those on load in order to reduce vibration under no
load, but this does not show trouble. Once
operation starts with a bit against concrete, blows
per minute increase and get to the numbers as
shown in the table. When temperature is low and
there is less fluidity in grease, the tool may not
have this function even with the motor rotating.
CAUTION:
The adjusting dial can be turned only as far as 5
•
and back to 1. Do not force it past 5 or 1, or the
speed adjusting function may no longer work.

Indicator lamp

010285
1. Adjusting dial
1
Blows per minute
1450
1350
1150
800
730
1. Power-ON
indicator lamp
1
(green)
2. Service indicator
lamp (red)
2
The green power-ON indicator lamp lights up when the
tool is plugged. If the indicator lamp does not light up,
the mains cord or the controller may be malfunction. The
indicator lamp is lit but the tool does not start even if the
tool is switched on, the carbon brushes may be worn out,
or the controller, the motor or the ON/OFF switch may be
malfunction.
The red service indicator lamp flickers up when the
carbon brushes are nearly worn out to indicate that the
tool needs servicing. After approx. 8 hours of use, the
motor will automatically be shut off.
ASSEMBLY
CAUTION:
Always be sure that the tool is switched off and
•
unplugged before carrying out any work on the
tool.
Side handle (auxiliary handle)
1
2
010286
The side handle can be swung 360° on the vertical and
secured at any desired position. Just loosen the clamp
nut to swing the side handle to a desired position. Then
tighten the clamp nut securely.
Installing or removing the bit
For Model HM1307C,HM1317C only
1
2
010287
With the notched portion on the shank of the bit facing
toward the tool retainer, insert the bit into the tool holder
as far as it will go. Then pull out and turn the tool retainer
180° to secure the bit. After installing, always make sure
that the bit is securely held in place by trying to pull it
out.
6
1. Set bolt
2. Nut
3. Side handle
3
1. Bit
2. Tool retainer
3. Tool holder
3
