IKEA Kulinarisk User Manual

IKEA Kulinarisk User Manual

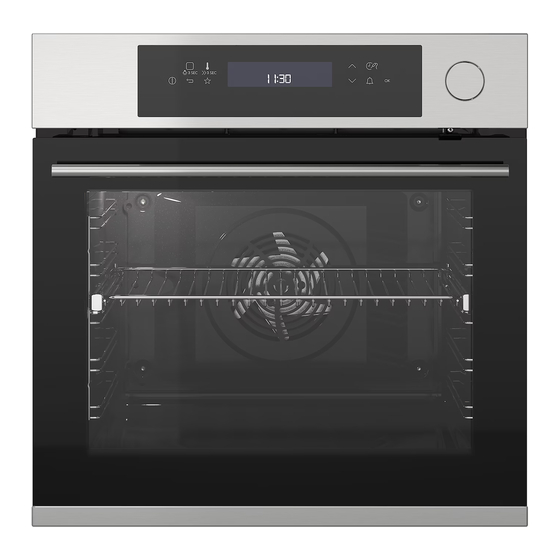

Oven with steam feature
Hide thumbs Also See for Kulinarisk:
Table of Contents

Advertisement

Quick Links

See also: Recipe Book , Instruction Manual
AU
KULINARISK

Advertisement

Table of Contents
loading

Related Manuals for IKEA Kulinarisk

Summary of Contents for IKEA Kulinarisk

  • Page 1 KULINARISK...
  • Page 2 ENGLISH Please refer to the chapter IKEA GUARANTEE for contact details of the after sales customer service centre.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Before first use Energy efficiency Daily use Environmental concerns Clock functions IKEA guarantee Automatic programmes Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages.

  • Page 5: Conditions Of Use

    ENGLISH Keep children and pets away from the appliance when it • operates or when it cools down. Accessible parts are hot. If the appliance has a child safety device, it should be • activated. Children shall not carry out cleaning and user maintenance of •...

  • Page 6: Safety Instructions

    ENGLISH • By clients in serviced apartments, holiday apartments and other residential type environments. Safety instructions • Do not let mains cables touch or come Installation near the appliance door, especially Warning! Only a qualified when the door is hot. person must install this •...
  • Page 7 ENGLISH • Do not operate the appliance with wet damage to the appliance, the housing hands or when it has contact with water. unit or the floor. Do not close the • Do not apply pressure on the open door. furniture panel until the appliance has •...

  • Page 8: Installation

    ENGLISH • Cut off the mains electrical cable close to Service the appliance and dispose of it. • To repair the appliance contact an • Remove the door to prevent children and Authorised Service Centre. pets to get closed in the appliance. •...

  • Page 9: Product Description

    ENGLISH Product description General overview Control panel Electronic programmer Water drawer Socket for the core temperature sensor Grill Lamp Rating plate Steam generator with cover Shelf support, removable Shelf positions For absorbing the remaining water from Accessories the steam generator. •...
  • Page 10 ENGLISH Symbol Function Comment Heating Functions Press once to enter to the Heating Functions Menu. or Assisted Cook- Press again to switch to Assisted Cooking. To turn on or off the light, press for 3 seconds. Back key To go back one level in the menu. To show the main menu, press the symbol for 3 seconds.

  • Page 11: Before First Use

    ENGLISH Other indicators of the display: Symbol Function Minute Minder The function works. Time of day The display shows the current time. Duration The display shows the necessary time for cooking. End Time The display shows when the cooking time is complete. Temperature The display shows the temperature.

  • Page 12: Daily Use

    ENGLISH 1. Set the function: Conventional Cooking (Top/Bottom Heat) and the maximum temperature. 2. Let the oven operate for 1 hour. 3. Set the function: True Fan Cooking and the maximum temperature. 4. Let the oven operate for 15 minutes. Accessories can become hotter than usual.
  • Page 13 ENGLISH Symbol / Menu Application Symbol / Menu Description item item Contains a list of addi- Activates and deacti- tional heating func- vates the tone of the Specials Key Tones tions. touch fields. It is not possible to deactivate Submenu for: Basic Settings the tone of the ON / OFF touch field.
  • Page 14 ENGLISH Heating function Application Heating function Application Food reheating with This function is de- steam prevents surface signed to save energy drying. Heat is distrib- during cooking. For the Steam Regener- Moist Fan Baking uted in a gentle and cooking instructions re- ating even way, which al- fer to "Hints and tips"...
  • Page 15 ENGLISH Heating function Application Heating function Application To grill flat food and to To keep food warm. toast bread. Grill Keep Warm To grill flat food in To defrost food (vege- large quantities and to tables and fruit). The toast bread. defrosting time de- Fast Grilling Defrost...

  • Page 16: Clock Functions

    ENGLISH 3. Push the water drawer to its initial with the sponge. If necessary, clean the position. steam generator with some vinegar. 4. Turn on the oven. 5. Set a steam heating function and the Heat-up indicator temperature. When you turn on a heating function, the 6.

  • Page 17: Automatic Programmes

    ENGLISH • The set temperature is more than 80 °C. If you use the clock functions: • The function: Duration is set. Duration, End Time, the oven turns off the heating elements The function: Heat + Hold keeps prepared after 90 % of the set time. The food warm at 80 °C for 30 minutes.

  • Page 18: Using The Accessories

    3. Select the category and dish. Press for this oven on the website to confirm. www.ikea.com. To find the 4. Select a recipe. Press to confirm. proper Recipe Book check the article number on the rating plate on the front frame of the oven cavity.
  • Page 19 ENGLISH 3. Turn on the oven. Small indentation at the top The display shows the core temperature increase safety. The indentations sensor symbol. are also anti-tip devices. The 4. Press in less than 5 seconds to set high rim around the shelf the core temperature.

  • Page 20: Additional Functions

    ENGLISH Additional functions Favourites Using the Child Lock You can save your favourite settings, such When the Child Lock is on, the oven cannot as duration, temperature or heating be turned on accidentally. function. They are available in the menu: 1.

  • Page 21: Hints And Tips

    ENGLISH Brightness of the display Press any symbol (except for ) to start the function: Set + Go. The set heating function There are two modes of display brightness: starts. • Night brightness - when the oven is When the heating function ends, a signal turned off, the brightness of the display is sounds.
  • Page 22 ENGLISH If you use two baking trays at the same To prevent too much smoke in the oven time, keep one empty level between them. during roasting, add some water into the deep pan. To prevent the smoke Cooking meat and fish condensation, add water each time after it Leave the meat for approximately 15 dries up.

  • Page 23: Care And Cleaning

    For additional cooking tables please refer Preheat the empty oven for 3 minutes. to the Recipe Book which you can find on the website www.ikea.com. To find the Grill with the maximum temperature setting. proper Recipe Book check the article Use the third shelf position.
  • Page 24 ENGLISH 2. Pull the front end of the shelf support If you have nonstick accessories, do not away from the side wall. clean them using aggressive agents, sharp- 3. Pull the supports out of the rear catch. edged objects or a dishwasher. It can cause Install the shelf supports in the opposite damage to the nonstick coating.
  • Page 25 ENGLISH generator. Wait for approximately 10 minutes. 2. Remove the water and vinegar with the sponge. 3. Put clean water (100 - 200 ml) into the water drawer to flush the steam generation system. 4. Remove the water from the steam generator with the sponge and rub it 7.

  • Page 26: Troubleshooting

    ENGLISH 3. Turn the lamp glass cover Warning! Danger of counterclockwise to remove it. electrocution! Disconnect the fuse 4. Clean the glass cover. before you replace the lamp. 5. Replace the oven light bulb with a 40 The lamp and the lamp glass W, 220 - 240 V (50 Hz), 350 °C heat cover can be hot.

  • Page 27: Technical Data

    ENGLISH Problem Possible cause Remedy • Turn off the oven with the The display shows an error There is an electrical fault. house fuse or the safety code that is not in this table. switch in the fuse box and turn it on again.

  • Page 28: Energy Efficiency

    Frequency 50 Hz Number of functions Energy efficiency Product information according to EU 66/2014 Model identification KULINARISK 504.168.22 Energy Efficiency Index 94.5 Energy consumption with a standard load, conven- 0.93 kWh/cycle tional mode Energy consumption with a standard load, fan-forced 0.69 kWh/cycle...

  • Page 29: Environmental Concerns

    Do not IKEA guarantee How long is the IKEA guarantee valid? This guarantee is valid for 5 years from the original date of purchase of Your appliance at IKEA Pty Ltd, ABN 84006270757 or at...
  • Page 30 Contact - IKEA Customer Service at Australia. www.IKEA.com.au What will IKEA do to correct the problem? For Western Australian and South IKEA appointed service provider will exam- Australian customers please contact: ine the product and decide, at its sole dis- cretion, if it is covered under this guarantee.
  • Page 31 To make a claim under the guarantee transports the product to their home or contact IKEA after sales customer service other address, IKEA is not liable for any center at the above address, the IKEA damage that may occur during transport.
  • Page 32 IKEA appliance in the dedicated IKEA kitchen furniture. 3. Ask for clarification on user manual con- tents and specifications of the IKEA ap- pliance. To ensure that we provide you with the best assistance, please read carefully the As- sembly Instructions and/or the User Manual section of this booklet before contacting us.
  • Page 33 ENGLISH...
  • Page 34 ENGLISH...
  • Page 35 ENGLISH...
  • Page 36 21552 © Inter IKEA Systems B.V. 2018 AA-2048872-1...

This manual is also suitable for:

Kulinarisk504.168.22
