Summary of Contents for Ryobi R4SDC

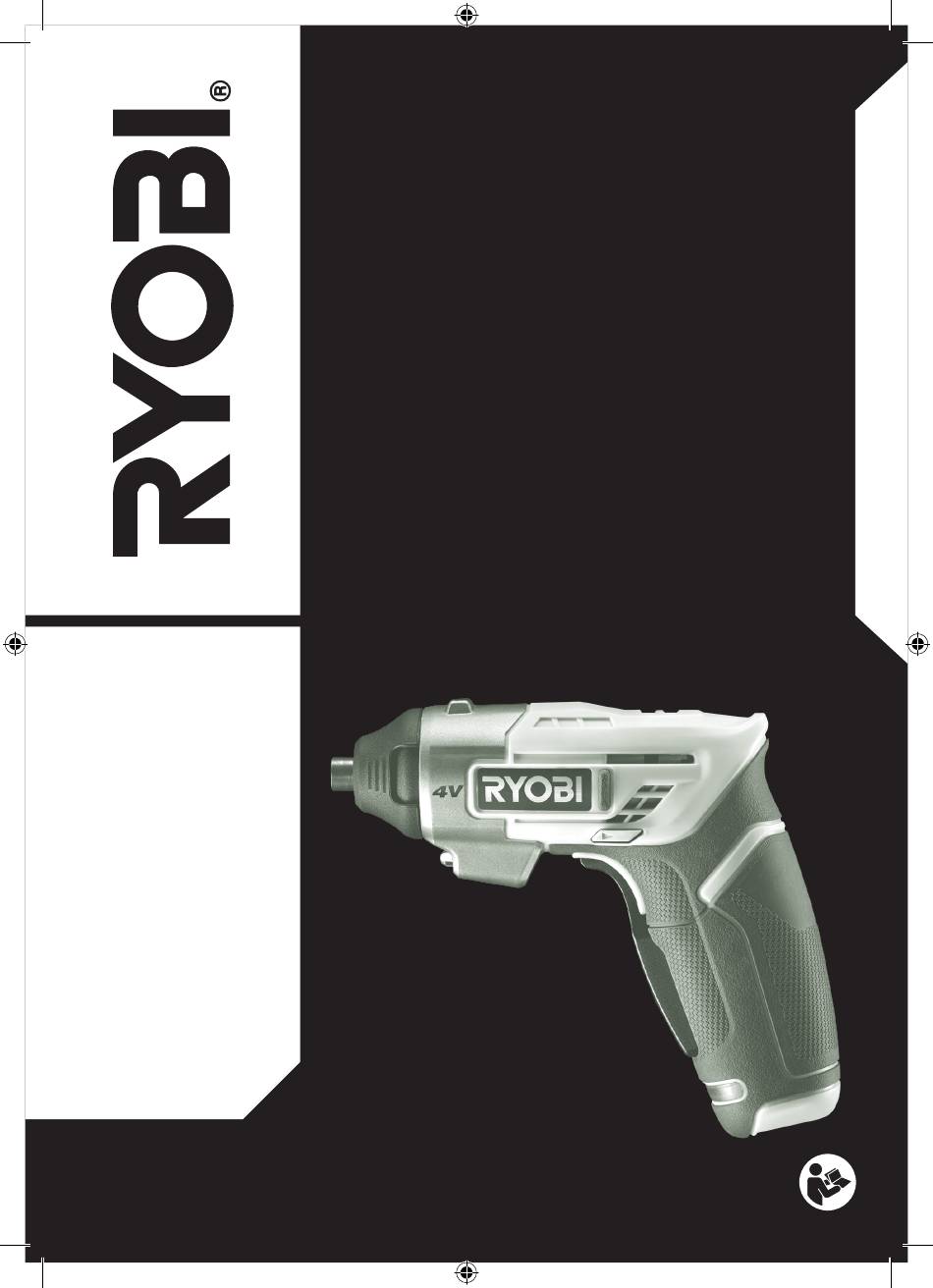

- Page 1 ORIGINAL INSTRUCTIONS 4V Screwdriver R4SDC...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
- Page 3 Safety, performance, and dependability ■ Keep children and bystanders have been given top priority in the design away while operating a power of your screwdriver. tool. Distractions can cause you to lose control. INTENDED USE ELECTRICAL SAFETY The product is intended to be used only by ■...
- Page 4 ■ If devices are provided for the PERSONAL SAFETY connection of dust extraction and ■ Stay alert, watch what you are collection facilities, ensure these doing and use common sense are connected and properly used. when operating a power tool. Do Use of dust collection can reduce not use a power tool while you dust-related hazards.
- Page 5 moving parts, breakage of parts keys, nails, screws or other small and any other condition that may metal objects, that can make a affect the power tool’s operation. connection from one terminal If damaged, have the power to another. Shorting the battery tool repaired before use.
-
Page 6: Screwdriver Safety Warnings
manufacturer or authorized service damaged cords immediately. providers. ■ Make sure cord is located so that it will not be stepped on, tripped over, SCREWDRIVER SAFETY WARNINGS come in contact with sharp edges or ■ Hold the power tool by insulated moving parts or otherwise subjected gripping surfaces, when performing to damage or stress. -
Page 7: Battery Safety Warnings
rechargeable). ADDITIONAL SAFETY WARNINGS ■ recommended ambient temperature range for the charging WARNING system during charging is between The product is not intended for use 10°C and 38°C. by persons (including children) with reduced physical, sensory or mental BATTERY SAFETY WARNINGS capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction... -
Page 8: Risk Reduction
Limit exposure. Follow the instructions WARNING in Risk Reduction. Injuries may be caused, or aggravated, ■ Electric shock caused by contact with by prolonged use of a tool. When using hidden wires any tool for prolonged periods, ensure Hold the product only by insulated you take regular breaks. - Page 9 LUBRICATION Waste electrical products All of the bearings in the product are should not be disposed lubricated with a sufficient amount of of with household waste. high grade lubricant for the life span Please recycle where of the product under normal operating facilities exist.
-
Page 11: Know Your Product
KNOW YOUR PRODUCT 1. Adapter cover 7. Handle, insulated gripping surface 2. Bit holder 8. Charger adapter 3. LED light 9. USB port 4. Screwdriver bit 10. Charger cable 5. Forward/reverse selector 11. Input jack 6. Switch trigger... -
Page 15: Product Specifications
50 Hz 0.2 A Screw driving <2.5 m/s Output 500 mA Uncertainty K 1.5 m/s Battery Replacement parts Battery type Lithium Ion R4SDC Right Angle 5133003692 Battery capacity 1.5Ah R4SDC Offset 5133003691 Number of cell R4SDC Clutch 5133003690 VIBRATION LEVEL WARNING The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. - Page 16 Imported by: Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited 2 Landing Drive, Mangere Auckland, 2022, New Zealand 961075452-01...
