ASSEMBLY INSTRUCTIONS
OPERATOR'S MANUAL
PARTS LIST

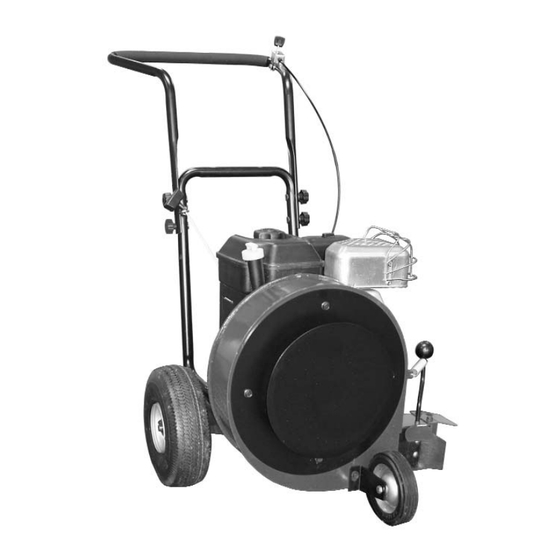

Actual product may differ slightly from product pictured above
Manual No. 7043322 (I.R. - 02/08/05)
European
Walk-Behind
Leaf Blower
Series 2
Models Covered:
ELBC6152BV
(Part # 7085926)

Advertisement

Table of Contents
loading

Summary of Contents for Snapper ELBC6152BV

  • Page 1 ASSEMBLY INSTRUCTIONS OPERATOR’S MANUAL PARTS LIST Actual product may differ slightly from product pictured above Manual No. 7043322 (I.R. - 02/08/05) European Walk-Behind Leaf Blower Series 2 Models Covered: ELBC6152BV (Part # 7085926)
  • Page 2: Model Number

    preliminaries Congratulations! You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for, your new blower will provide years of dependable service. Please read and follow this instruction manual carefully in order to get the most out of your new equipment.
  • Page 3: Slope Operation

    safety rules regarding outdoor power equipment IMPORTANT! READ CAREFULLY THE FOLLOWING SAFETY RULES BEFORE ASSEMBLING OR OPERATING UNIT. TRAINING • Read, understand, and follow all instructions in the manu- al and on the unit before starting. If the operator(s) or mechanic(s) can not read English it is the owner’s responsi- bility to explain this material to them.
  • Page 4: Maintenance And Storage

    safety rules regarding outdoor power equipment (cont.) CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and its activity. Never assume that children will remain where you last saw them. •...
  • Page 5: Front Wheel Assembly

    unit assembly Note: Please refer to Parts List for correct part identification and placement. FRONT WHEEL ASSEMBLY • Attach left and right caster brackets to caster wheel using 3/8-18 x 2-1/4 bolt and lock nut. Insert bolt through hole in bracket. Place caster wheel onto bolt. Place other caster bracket onto bolt.
  • Page 6: Starting The Engine

    unit operation STARTING THE ENGINE IMPORTANT NOTE: The procedures outlined within this section are general guidelines, and are in no way meant to replace or supercede engine manufacturer’s operating instructions. In order to obtain optimum performance from your engine, refer to your engine manual.
  • Page 7: Blower Operation

    unit operation (cont.) STARTING THE ENGINE (cont.) • Bracing unit with one hand on the upper handle and a foot on the right rear tire, firmly grasp recoil handle and pull briskly. You may have to pull several times before engine starts.
  • Page 8 unit operation (cont.) GENERAL RULES TO OBSERVE BEFORE AND DURING OPERATION: • Inspect your unit before each and every use. Check for worn, bent or broken components, loose fasteners, low or flat tires, etc., and repair or replace prior to operation. DO NOT OPERATE A MACHINE THAT IS WORN OR DAMAGED –...
  • Page 9 maintenance BEFORE MAKING ANY ADJUSTMENTS, STOP ENGINE AND DISCONNECT SPARK PLUG WIRE TO PREVENT INADVERTENT STARTING OF UNIT. GENERAL: • Follow implicitly the engine manufacturer’s recommendations for maintenance. • Always keep your machine clean – especially the engine. Check all adjustments periodically. Also, periodically check that all fasteners are secure.
  • Page 10: Troubleshooting

    maintenance (cont.) BEFORE MAKING ANY ADJUSTMENTS, STOP ENGINE AND DISCONNECT SPARK PLUG WIRE TO PREVENT INADVERTENT STARTING OF UNIT. TROUBLESHOOTING: • UNIT WILL NOT START: • Check fuel and oil levels. • Check to make sure choke is set when engine is cold, off when hot. •...
  • Page 11 ELBC6152BV...
  • Page 12 illustrated parts list (cont.) Item Part No. Description 7043239 WELDMENT, Base & Housing 52 Classic 7043287 WELDMENT, Impeller Steel 4 Blade 15.00 O.D. 90167 SCREW, 3/8-24 x 2” Hex Head Cap, GR5 3020234 WELDMENT, Intake Baffle 91525 BOLT, 5/16-18 x 1/2” Hex Flange 91318 SCREW, 5/16-18 x 3/4”...
  • Page 13: Decal Identification

    illustrated parts list (cont.) Item Part No. Description 90391 WASHER, 5/16” Internal Tooth Lock 3071776 KNOB, Folding Handle 46465 GUIDE, Rope 90372 NUT, 1/4-20 Hex Center Lock, GR5 or B 3071800 THROTTLE CONTROL, B&S 90505 SCREW, 1/4-20 x 2” Hex Head Cap, GR5 76978 NUT, 1/4-20 Hex Nyloc 1717312...
  • Page 14 1722551 - SIMPLICITY LOGO - LOCATED ON INTAKE BAFFLE (ON APPLICABLE MODELS) 7011279 - MODEL YEAR 2005 - LOCATED ON REAR OF BLOWER HOUSING 27255 - SNAPPER LOGO - LOCATED ON INTAKE BAFFLE (ON APPLICABLE MODELS) EUROPEAN PERFORMANCE: Maximum level of vibration measured...
  • Page 15 notes...
  • Page 16 ASSEMBLY INSTRUCTIONS OPERATOR’S MANUAL PARTS LIST European Walk-Behind Leaf Blower Series 2 McDonough, GA 30253 USA Manual No. 7043322 (I.R. - 02/08/05)
