Installation
Instructions
19
Used on single point pick-up
mowers only. See Figures 2 & 3
Kit Contents:
Ref
Part No.
Qty.
Description
1
1725959A
1
ROD & TUBE ASSEMBLY
2
1960033
1
CLIP, Hair Pin
3
1723124
1
BUTTON, Red
4
1713995
1
GRIP, Soft, Black
5
1960674
1
PUSH NUT, 1/4
6
1723321
1
SPRING, Compression
7
1725958
1
ROD, Latch
8
1721999A
1
LATCH, Lift Lever
9
1960126
1
PUSH NUT, 1/4
10
1727441A
1
LEVER ASSEMBLY
11
1927609
1
PIN, 3/8 x 1
12
1931277
6
NUT, Hex, Flange Whiz Lock, 5/16-18
13
1708298
2
PIN, Round Head, Drilled, 3/8 x 1

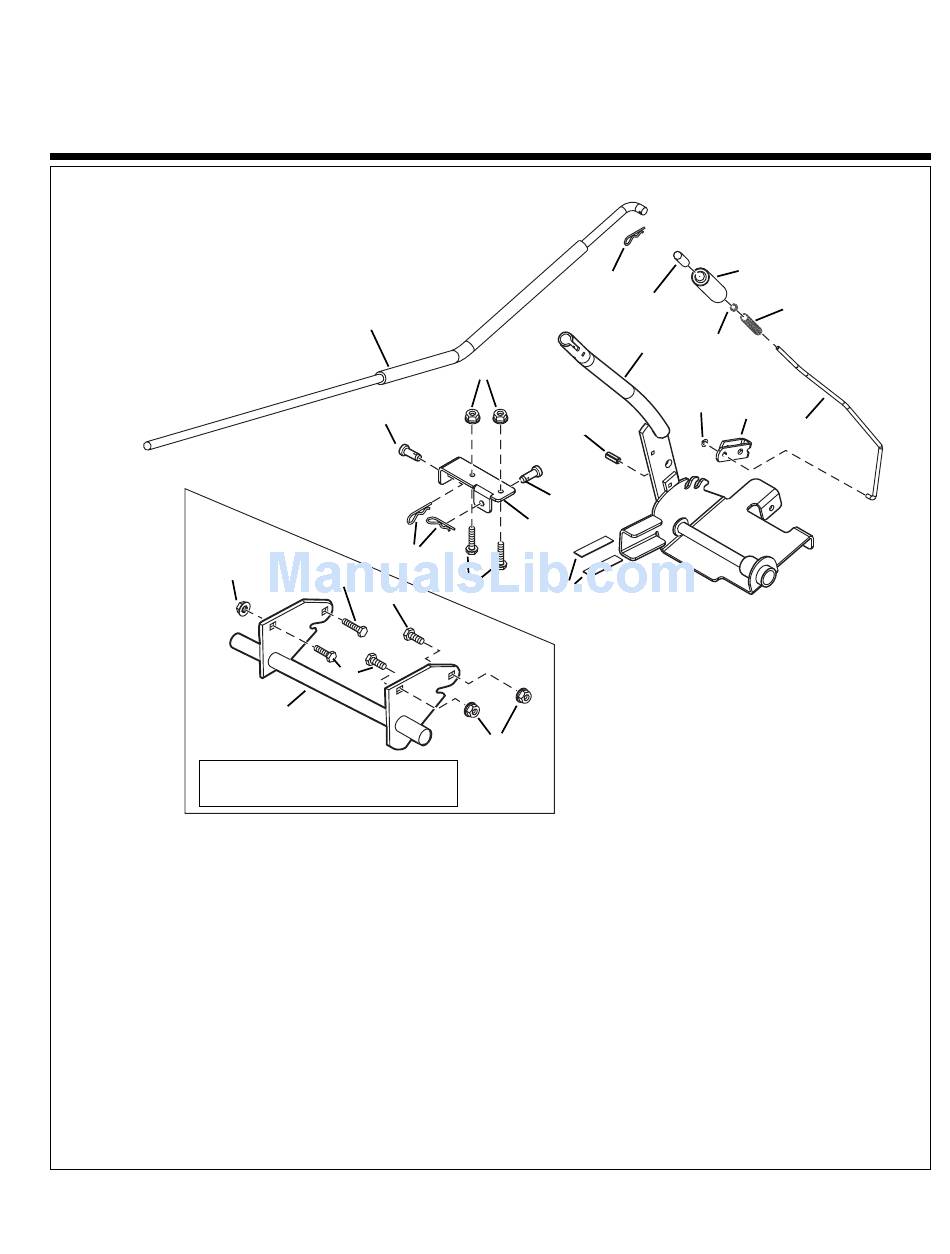

Figure 1. Contents
1
13
15
21
18
18
20
For Broadmoor / 200 / 1600 / 2600 Series
2
10
12
11
13
14
16
17
19
14
1725705A
1
15
1960074
2
16
1960585
2
17
1725957
2
18
2826149
3
19
1960636
3
20
1731381A
1
21
1921221
1
1
Lift Lever Kit
Mfg. No. 1694947
4
3
6
5
9
8
7
BRACKET, Mounting
CLIP, Hair Pin
CAPSCREW, Hex Head,
5/16-18 x 1-3/4
PAD, Rubber
CAPSCREW, Hex Head,
5/16-18 x 1
NUT, Hex, KEPS, 5/16-18
SHAFT ASSEMBLY
CAPSCREW, Hex Head,
5/16-18 x 1-1/2
Advertisement
Related Manuals for Snapper 1694947
Summary of Contents for Snapper 1694947
- Page 1 1960074 1960585 1725957 2826149 1960636 1731381A 1921221 Lift Lever Kit Mfg. No. 1694947 For Broadmoor / 200 / 1600 / 2600 Series BRACKET, Mounting CLIP, Hair Pin CAPSCREW, Hex Head, 5/16-18 x 1-3/4 PAD, Rubber CAPSCREW, Hex Head, 5/16-18 x 1...
- Page 2 Installation Instructions Figure 2. Typical Dual Point Pick-Up A. Lift Shaft Assembly C. Lift Lever B. Lift Rod Note: Dual point pick-up mowers have the lift attached at two points on the mower deck. See Figure 2. Lift shaft assembly (A) is already installed on these tractors. Do not replace with lift shaft assembly provided in kit.
- Page 3 Lift Lever Kit Install Lift Shaft Assembly SINGLE POINT PICK-UP MODELS ONLY 1. Remove and retain spacer (E, Figure 6), bell crank assembly (F), washer (G), and nut (H). You may find installation easier to remove rod (C) and one cotter pin (A) and washer (B).
- Page 4 Installation Instructions Install Front Attachment Lift Lever & Rod ALL MODELS 1. Slide the lift lever assembly (A, Figure 8) on to the end of the shaft assembly and on to the edge of the tractor. 2. Secure to mounting bracket (D) using clevis pins (B) and hair pin (C).
