- Page 1 © Nedap N.V., AGRI P.O. Box 104 NL-7140 AC GROENLO The Netherlands VP1002-200PM-00 ISO Booster...

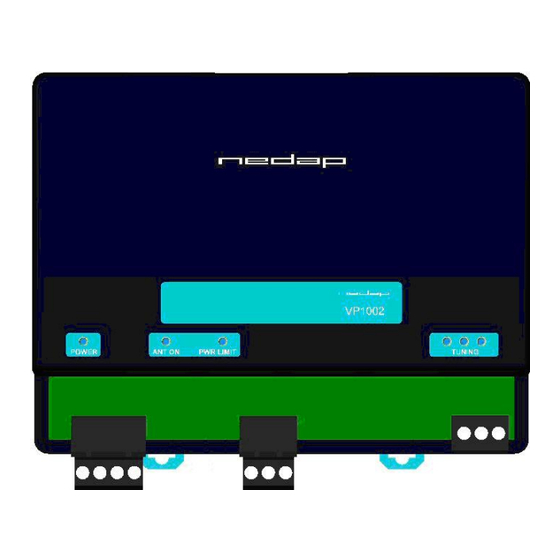

- Page 2 ISO-Booster General The ISO Booster or VP1002 is used for improving reading distance of antennas specially in case of using small (ear) tags. The ISO Booster must be connected to a V-pack with identification. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Led Indicators
If power level is set to high at the connected V-pack the power limiter will be activated. The led PWR LIMIT will be on. After a delay of approximately five seconds ithe VP1002 restarts. If nothing has changed the safety circuit is triggered again until the transmitted powerlevel is lowered. - Page 4 Coax RG58. Max. Length depending on antenna type. Always use NEDAP power supply The Nedap guarantee-regulations are only valid when is installed as indicated in this manual. Install data cables at a safe distance from (high) powered cables More information For more detailed information contact your local Nedap supplier or check the internet site.
-
Page 5: Technical Manual
© Nedap N.V., AGRI P.O. Box 104 NL-7140 AC GROENLO The Netherlands VP1006-200PM-00-OEM ISO Reader... -
Page 6: Installation Steps
Following antenna types can be used : V-sense antennas EWA transformer with stainless steel antenna strip HDPE antenna with HDPE antenna tuner A booster (VP1002) can be used to amplify the antenna field for high performance identification Reference manuals : PS0000-200PM-00 Velos general overview VP1002-200PM-00 ISO-Booster... - Page 7 Connections Figure above : motor, output and input is an example. Configuration is depending on the used behaviour components. Use display menu and push button to check and configure. Power Minus RS232 / 485 RxD / A Data receive TxD / B Data send Minus of RS232 / 485 SYNC...
- Page 8 LED indicators VP1006 display push button POWER Green on Power on No power STATUS Blue Slow blinking Operating ok Very fast blinking Service mode activ Fast blinking Downloading or error during download 1 short flash V-pack not coupled 2 short flashes Firmware present but not activ 3 short flashes No firmware present...
-
Page 9: Display Menu
Display menu DISPLAY ADDRESS Shows the actual address SET ADDRESS Change the address ADJUST ANTENNA Antenna tuning will be shown by output 6 (lamp) ANTENNA POWER Min/max 10 / 99. Normally set to 99. Possibility to set a lower value. ANTENNA SENSITIVITY SQUELCH Min/max 9 / 0. - Page 10 CP-menu communication possibilities RS232 with Nedap extened protocol RS232 Nedap extened protocol 2400 Baud Nedap extened protocol 9600 Baud Nedap extened protocol 19200 Baud Nedap extened protocol 38400 Baud RS485 with Nedap extened protocol RS485 Bias off - no. of breaks 0...
-
Page 11: Antenna Power
Antenna adjustments Antenna tuning After first time power up the antenna tuning must be checked. Check the TUNING led, green is OK and means the antenna is correctly tuned. When the green led is not ON the antenna must be tuned. Antenna tuning : Turn Lt on the antenna till the green led is ON (use a plastic screw driver) Green on... - Page 12 Antenna squelch Antenna squelch is a possibility to set a threshold for the ID level of a tag. It means the antenna power is still the same, but the software will not transfer weak received tag numbers. Default the antenna squelch is set to minimum (-0). This means no threshold. Maximum is -9. Check the antenna squelch level The antenna squelch level is shown on the display in the service menu at HF, option AS (Adjust Squelch)
- Page 13 Twisted pair minimum 2x0.24mm . Total max. 500m Always use a NEDAP power supply The Nedap guarantee-regulations are only valid when is installed as indicated in this manual. Install data cables at a safe distance from (high) powered cables More information For more detailed information contact your local Nedap supplier or check the internet site.
- Page 14 © Nedap N.V., AGRI P.O. Box 104 NL-7140 AC GROENLO The Netherlands VP6001-200PM-00 V-sense...
- Page 15 VP6001 V-sense antenna General The VP6001 is used as antenna in Velos system and connected to a V-pack with identification. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
