2. Mount the device in the rack, using four rack-mounting
screws and nuts (not provided).

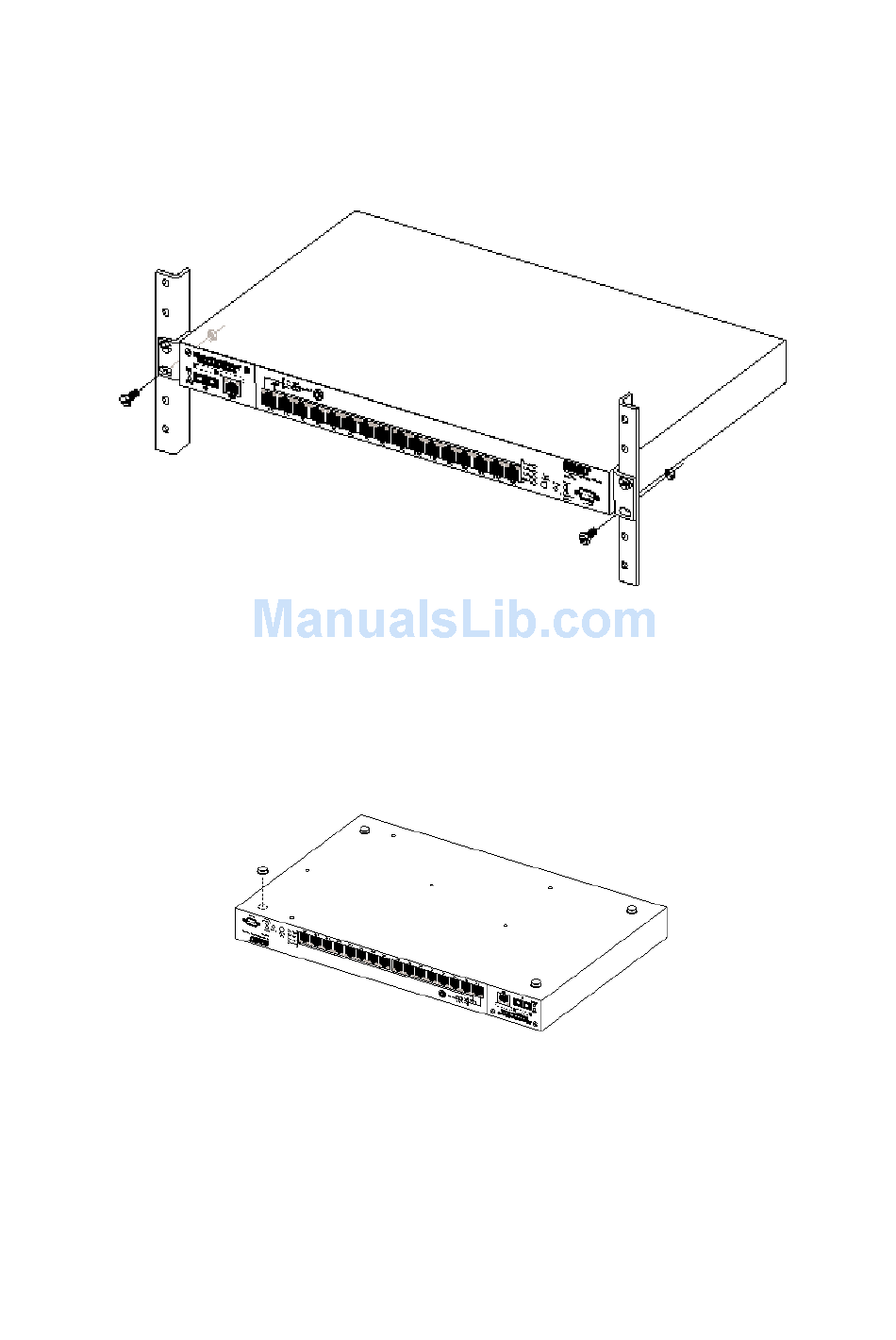

Figure 4-2. Installing the Switch in a Rack

3. Turn to the section, "Connecting to the Console Port."

Desktop or Shelf Mounting

1. Attach the four adhesive feet to the bottom of the switch.

Figure 4-3. Attaching the Adhesive Feet

2. Set the switch on a flat surface near an AC power source,
making sure there are at least two inches of space on all
sides for proper air flow.
3. Turn to the next section, "Connecting to the Console Port."
I
NSTALLING
4-5
