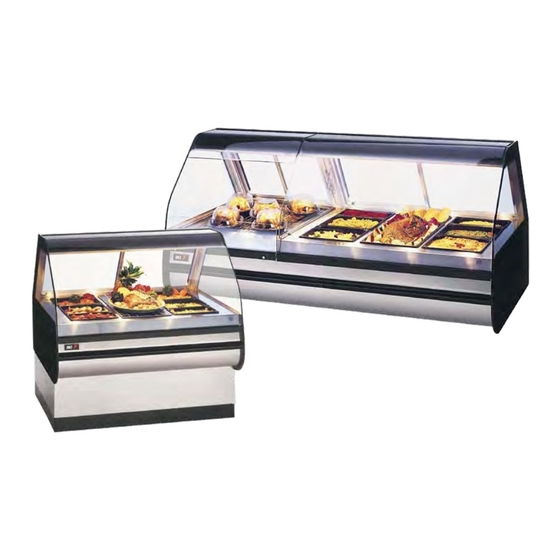

BKI WDCG Series Operation Manual

Hot case series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Hot Case Series
Series: WDCG
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for BKI WDCG Series

Summary of Contents for BKI WDCG Series

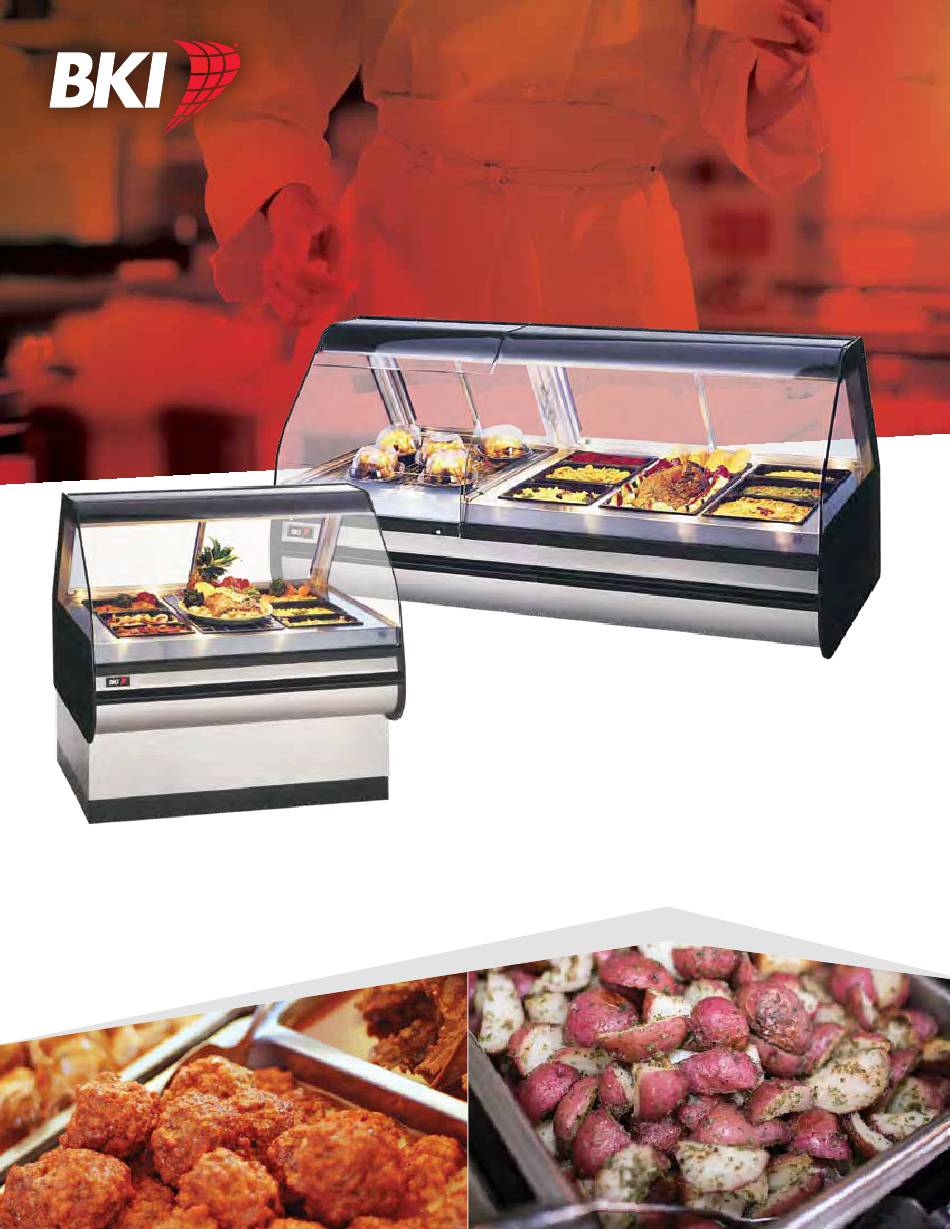

  • Page 1 Hot Case Series Series: WDCG Operation Manual...
  • Page 2 Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. BKI shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit.

  • Page 3: Table Of Contents

    Case Joining Trim ..........................15 Case Divider Glass ..........................16 Maintenance .............................. 17 Scheduled Maintenance ......................... 17 Well Numbering Convention ........................18 Troubleshooting ............................. 18 Wiring Diagrams ............................20 Notes................................1 BKI Worldwide is a wholly owned subsidiary of Standex International Corporation.

  • Page 4: Introduction

    Introduction PLEASE READ THIS ENTIRE MANUAL BEFORE SERVICING THE UNIT. If you have any questions, contact the BKI Technical Service Department, toll free: 1-800-927-6887. Outside the U.S., call 1-864-963-3471. This unit is to be sealed to the floor after installation to conform to NSF requirements.
  • Page 5 These sparks could cause serious injury, damage, or fire. BKI provides an Equipotential ground terminal for the connection of a bonding conductor after the installation of the appliance per lEC60417-1. This terminal is located on the inside of the Power Entry Supply box near the Earth connection and is marked with this symbol.
  • Page 6 Safety Labels Must be Clean and in Good Condition Make sure all safety labels are in place, clean and in good condition. Replace any damaged or missing safety labels. If you need new safety labels, contact: Technical Services Department 2812 Grandview Drive Simpsonville, S.C.

  • Page 7: Operation

    Operation Controls and Indicators The deli case controls are shown in the figure below. The pushbutton switches turn the power supply to the case on and off. The touchscreen interface is used to operate the case and display temperatures. WHEN LIT WATER WHEN LIT WATER...
  • Page 8 Default Screen If the display does not change from “Warming” to “Ready” after 45 minutes there is a problem with the unit. A qualified BKI Lower Right service representative should be contacted. Lower Left...
  • Page 9 Controller Menu Button There is a unique set of touches to enter the programming mode. This prevents the case settings from being inadvertently changed. Ready Enter the programming mode from the Default Screen by touching the lower left of the touchscreen, then the lower right and then the Menu Button [M] in that order.

  • Page 10: Preheating

    Preheating You should allow the equipment to preheat at the programmed temperature settings for a minimum of 30 minutes before loading it with product. For initial start up, program the controller for each well heater to a setting of 7 and each upper heater to a setting of 5. If equipped with the optional humidity water pan, fill the pan with 6 quarts (5 1/2 liters) of water before preheating the equipment.

  • Page 11: Installation

    Installation Serious injury, equipment damage or death could result if attempting to install this unit yourself. Ensure that an authorized BKI service agent installs the unit. Unpacking and Handling The company taking delivery of this equipment is responsible for filling all freight claims with the delivering truck line.
  • Page 12 Figure 1. Floor Models - Leveling Kick Plate Mounting A black vinyl-covered kick plate is provided for the front, back and ends of each case. 1. In order to install the Kick Plates it will be necessary to remove the End Trim Panels (see Figure 2).
  • Page 13 End Panel Mounting Attach the End Panels to the ends of the case(s) as shown in Figure 2 using the shoulder screws provided. For Glass End Panels only, slide the plastic bushings provided over the shoulder screws before inserting the screw into the glass panel. Be careful that the screws do not bind in the holes in the glass panel.

  • Page 14: Pedestal Model

    Pedestal Model Leveling Deli cases must be installed level to insure proper operation and alignment to adjoining equipment. Use a carpenter’s level and begin leveling from the highest point of the store floor. 1. Level the case using the leg levelers at the corners of the pedestals (see Figure 3). 2.

  • Page 15: Counter Model

    3. Place the Rear Trim in position on the back of each Pedestal. The Pedestal Wraps fit inside of the side flanges of the Rear Trim. Thread the Rear Trim retaining screws into the J nuts on the Pedestal. Make certain the Rear Trim is flush with the floor and tighten the retaining screws. The Pedestals are to be sealed to the floor if required by local health codes.

  • Page 16: Wiring

    Wiring A wiring diagram for the specific model is shipped with the deli case. The wiring diagram provides electrical specifications, an electrical schematic and a parts list. Refer to this wiring diagram and the deli case serial number plate for electrical information. Field wiring must be sized for the components amperes printed on the serial number plate.

  • Page 17: Case Joining Trim

    Case Joining Trim 1. After leveling the cases and bolting the bases together, bolt the canopies together as shown in Fig. 6 with a ¼”-20 x ¾” Hex Head Screw and Keps Nut. 2. Mount the Upper Front & Base Front Joint Trims by holding them in place and marking the hole locations on the case.

  • Page 18: Case Divider Glass

    Case Divider Glass A Divider Glass is typically installed between a self-service case with reach-in front glass and a full service case with full front glass. The Divider Glass is installed on the full service case side of the joint. 1.

  • Page 19: Maintenance

    Maintenance Failure to comply with the maintenance below could result in a serious accident. Electrocution, equipment failure or property damage could result if an unlicensed electrician performs electrical repair. Ensure that a licensed electrician perform electrical repair. Scheduled Maintenance Use the following table to help manage scheduled maintenance activities. Frequency Performed By Part...

  • Page 20: Well Numbering Convention

    Well Numbering Convention Facing the case from the Customer side, Well 1 is on the far right-hand end of the case. The well number increase sequentially from right to left. Troubleshooting Refer to the table below for troubleshooting information. Disconnect the case power supply by turning OFF the circuit breaker in the power supply service panel before performing any diagnostic testing.
  • Page 21 Touch Screen Display Not Damaged communication Replaced damaged cable. Functioning (Properly) cable. Failed Control Touch Screen Replace failed Control Touch Display. Screen Display. Failed Control I/O Board. Replace failed Control I/O Board. Light Bulb(s) Do Not Illuminate Failed Light Bulb(s) Replace failed Light Bulb(s) when Power is turned On Fuse(s) Blown...

  • Page 22: Wiring Diagrams

    Wiring Diagrams...

  • Page 38: Notes

    Notes 2812 Grandview Drive, Simpsonville, S.C. 29680, USA http://www.bkideas.com Made and printed in the U.S.A. SM-OM-012.03 Revised 09/25/18...
  • Page 39 REVISION HISTORY REVISION DATE REVISED BY DESCRIPTION 2/26/13 Initial Release-Supersedes all previous releases. 1/05/17 Add Glass Adjustment Instructions 09/25/18 Added P65 Warning and note that BKI is a subsidiary of Standex Int’l Corp.

This manual is also suitable for:

Wdcg-5Wdcg-6Wdcg-7Wdcg-3Wdcg-4
