Summary of Contents for D-Link DIR-505
Page 1

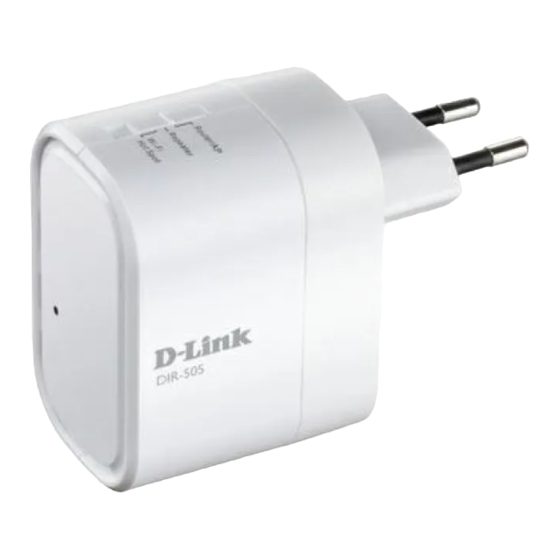

Technical Support Setup Procedure FAQ : How To Configure Repeater Mode on DIR-505 via Installation Wizard Release date : 24/07/2012 Model Support : DIR-505 H/W:A1 S/W:1.03 FAQ : How To Configure Repeater Mode on DIR-505 via Installation Wizard - Version 1.00...
Page 7
Note: SharePort Function is not available when DIR-505 is in Repeater Mode Step 1: Make sure the hardware switch on the DIR-505 is under ‘Repeater’ mode. Wait for the LED light to turn green before accessing the router. Switch to Repeater mode Green LED FAQ : How To Configure Repeater Mode on DIR-505 via Installation Wizard - Version 1.00...
Page 8
Step 2: Please connect your PC to DIR-505 via Ethernet cable. Configure manual ip address in your PC in order to access DIR-505 in Repeater mode. Note: The default IP Address of DIR-505 is 192.168.0.1. Step 3: Open web browser on your PC, type in the ip address of DIR-505 - http://192.168.0.1...
Page 9
Step 4: Go to SETUP>SETUP WIZARD. Click on ‘Launch Wireless Setup Wizard’ button. Step 5: Click Next. Step 6: Select ‘Manual’, Click Next. Note: You may choose ‘WPS’ only if your main router supports WPS function. FAQ : How To Configure Repeater Mode on DIR-505 via Installation Wizard - Version 1.00...
Page 10
Step 7: Select your main router wireless network name and click Connect. Step 8: Please type in the pre-shared key / wireless password of your main router. Click Next. FAQ : How To Configure Repeater Mode on DIR-505 via Installation Wizard - Version 1.00...
Page 11
1. Back to Step 2. Remove the ip address that you have configured on Step 2. 2. Unplug the Ethernet cable from your PC to DIR-505 and place it at the location that you need to extend the wireless coverage.
Page 12
ภาษาอั ง กฤษ : เสาร์ , อาทิ ต ย์ , วั น หยุ ด นขั ต ฤกษ์ และ วั น ธรรมดา หลั ง 18.00 น. English : Sat – Sun , Public Holiday and after 18.00 weekday. Website : www.dlink.co.th email: support@dlink.com.sg Facebook : http://www.facebook.com/DLinkThailandFans FAQ : How To Configure Repeater Mode on DIR-505 via Installation Wizard - Version 1.00...
Page 13
-13- Nationwide D-Link Service Centres FAQ : How To Configure Repeater Mode on DIR-505 via Installation Wizard - Version 1.00...
