CLI – This example configures VLAN 5 as a primary VLAN, and VLAN
6 as a community VLAN and VLAN 7 as an isolated VLAN.
Console(config)#vlan database
Console(config-vlan)#private-vlan 5 primary
Console(config-vlan)#private-vlan 6 community
Console(config-vlan)#private-vlan 7 isolated
Console(config-vlan)#

Associating VLANs

Each community VLAN must be associated with a primary VLAN.
Command Attributes
• Primary VLAN ID – ID of primary VLAN (1-4094).
• Association – Community VLANs associated with the selected
primary VLAN.
• Non-Association – Community VLANs not associated with the
selected VLAN.
Web – Click VLAN, Private VLAN, Association. Select the required
primary VLAN from the scroll-down box, highlight one or more
community VLANs in the Non-Association list box, and click Add to
associate these entries with the selected primary VLAN. (A community
VLAN can only be associated with one primary VLAN.)
3-164
S
WITCH

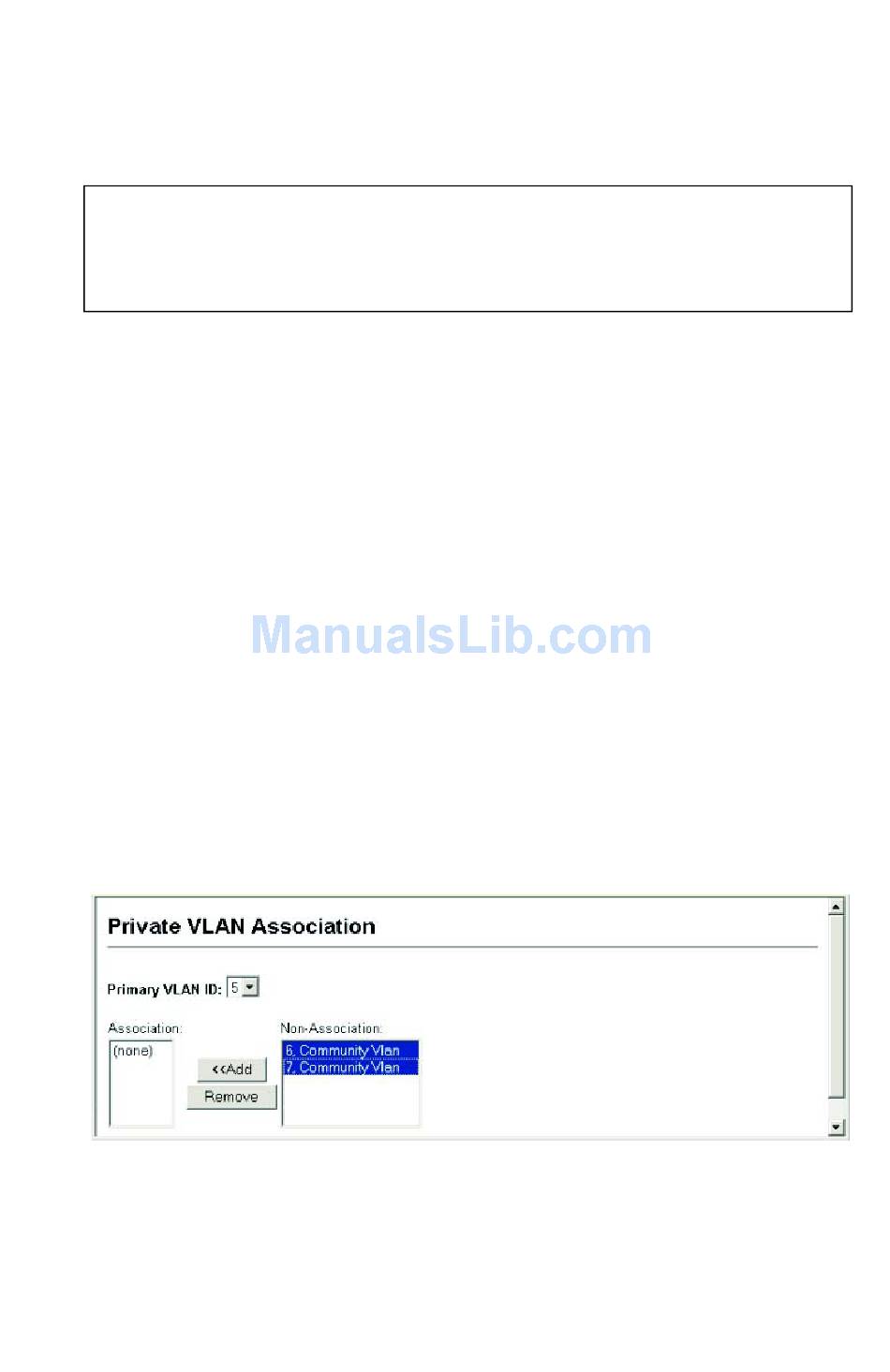

Figure 3-69 Private VLAN Association

4-195
4-208
