Functional Layout

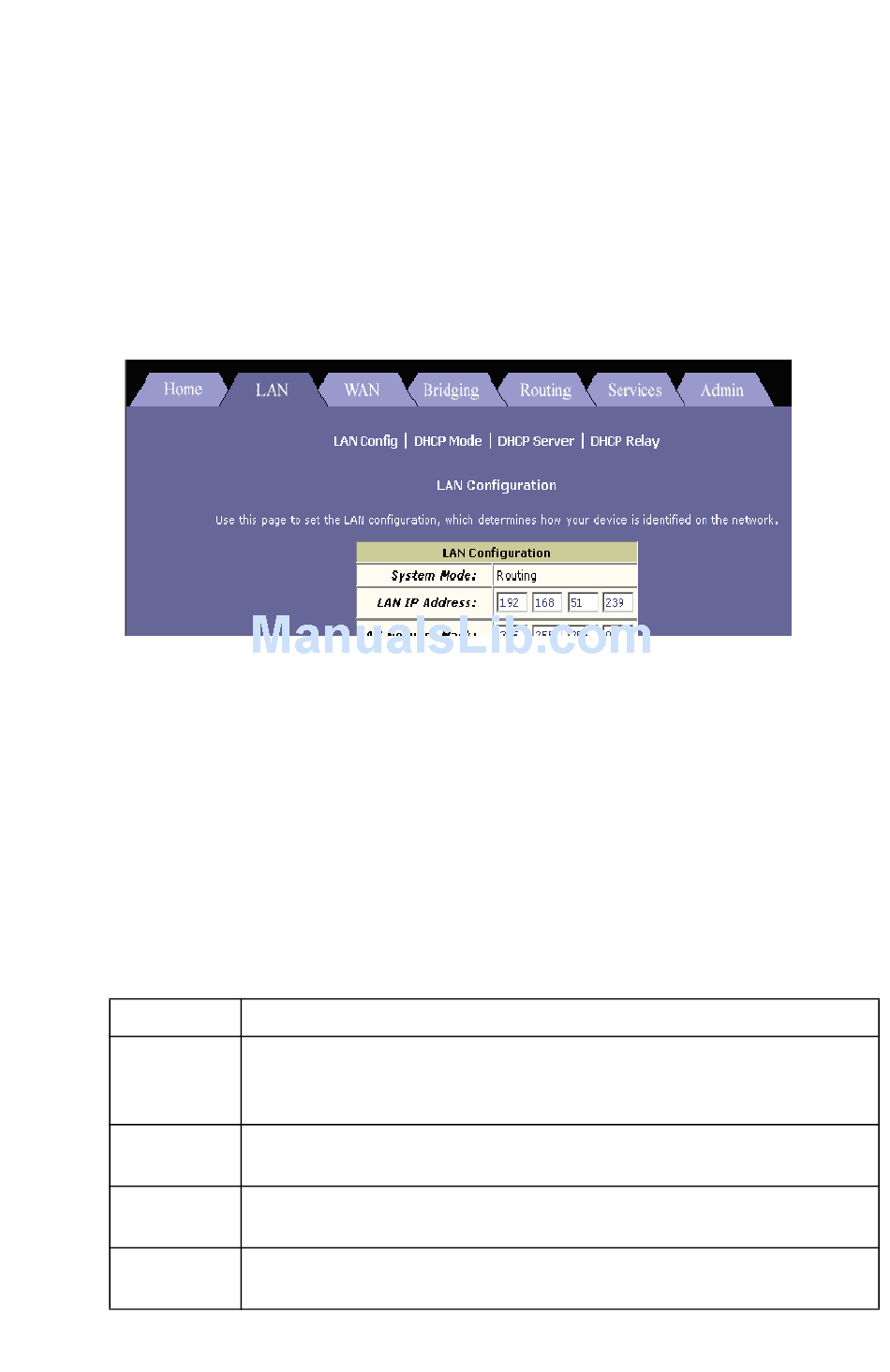

Configuration Manager tasks are grouped into several categories,
which can be accessed by clicking the tabs at the top of each page.
Each tab displays the available tasks in a horizontal menu at the
top of the page. You can click on these menu items and display
the specific configuration options.
A separate page appears for each task in the task bar. The left-most
task appears by default when you click on a new tab. The same
task may appear in more than one tab, when appropriate. For
example, the [Lan Config] task appears in both the [LAN]
tab and the [Routing] tab.

Commonly used buttons

The following buttons are used throughout the application.
Button
Submit
Refresh
Clear
Help
This button stores in the temporary system memory any changes
you have made on the current page. See Committing your changes
on page 30 for instructions on how to store changes permanently.
This button displays the current page with updated statistics
or settings.
On pages that display accumulated statistics, this button resets
the statistics to their initial values.
This button launches the online help for the current topic in a separate
browser window. Help is available from any main topic page.
