Wireless PC Mirroring Adapter (or KINO KIT)*
VG-SWD1000
User Manual
Overview
The Wireless PC Mirroring Adapter (or KINO KIT, VG-SWD1000)* feature
allows you to display the screen of a laptop computer in extended or
duplicated screen mode on your Samsung TV. The VG-SWD1000 is a
device designed to connect a laptop to a Samsung TV over a wireless
network. You can connect the device to an HDMI port on a laptop and
display the laptop screen on your Samsung TV. This easy-to-use device
automatically starts Wireless PC Mirroring Adapter as soon as it is
connected to a laptop using a USB cable. You do not need to install any
software on the laptop or TV.
Refer to the table below for Samsung TV models with Wireless PC Mirroring
Adapter available that are compatible with VG-SWD1000.(Wireless PC
Mirroring Adapter is only available on laptop computers and Samsung TVs.)
TV models
JU6790, JU6690, JU6490, J6590, J6390, J5590
in 2015
* Wireless PC Mirroring / KINO TV / KINO KIT use same technology,
and naming may vary by region.
* This device is optimized for video content mirroring, and it isn't recommended
to be used for other usages, i.e. game and/or document files.
[VG-SWD1000-CIS-IB]Rev1.2L04.indb 1

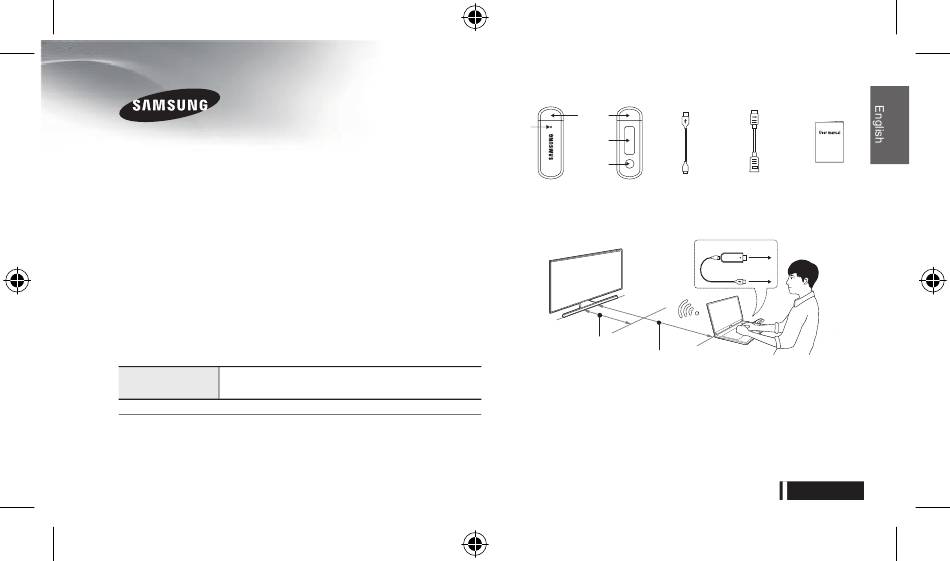

Part names / Components
Cap
LED
Label
Button
Front
Back
USB cable
How to Connect the Device
Samsung TV
1m when pairing
Recommended clearance 5m
Connect the USB cable that came with the package to the VG-
SWD1000, as shown in the diagram. Next, connect the device connected
with the USB cable to the HDMI and USB ports on the laptop.
If there is more than one Samsung TV in the vicinity, place the
laptop closer to the TV you want to pair with (recommended pairing
clearance: less than 1m). Turning off the TV you do not want to pair
with is recommended.
HDMI
User manual
extension cable
VG-SWD1000
HDMI Port
USB Port
Laptop
English-1
