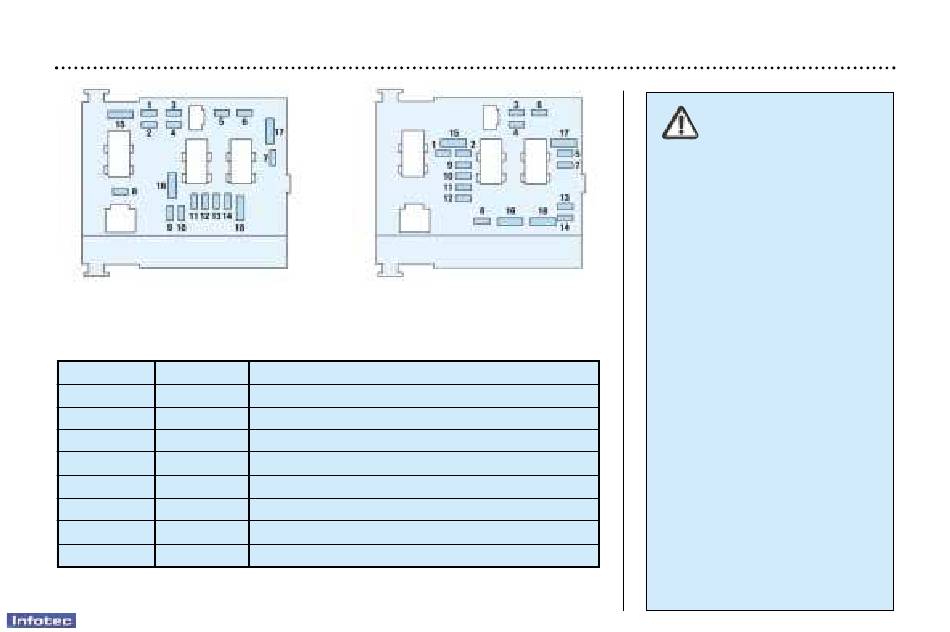

Engine compartment fuse box

To gain access to the box in the engine compartment (next to the battery), unclip
the cover.
After carrying out work, close the cover very carefully.
Fuse N° Rating
1* 20 A
2* 60 A
3* 30 A
4* 70 A
5* 70 A
6*
7* 30 A
8*
* The maxi fuses provide additional protection for the electrical systems. Any
work on these fuses must be carried out by a PEUGEOT dealer.
26-05-2003
PRACTICAL INFORMATION
or
Fan unit
ABS/ESP
ABS/ESP
Built-in systems interface supply
Built-in systems interface supply
– Not used
Ignition switch supply
– Not used
Functions
The electrical circuit of
your vehicle is designed
to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, consult a PEUGEOT deal-
er.
Some electrical accessories or the
way in which they are fitted may
have an adverse effect on the oper-
ation of your vehicle (its electronic
control circuits, the audio circuit and
the electrical charging circuit).
PEUGEOT declines any responsi-
bility for expenses incurred by the
repair of your vehicle or for any
malfunctions resulting from the
installation of auxiliary accessories,
not supplied and not recommended
by PEUGEOT and not installed in
accordance with PEUGEOT's
instructions, in particular for any
equipment the power consumption
of which exceeds 10 milliamps.
