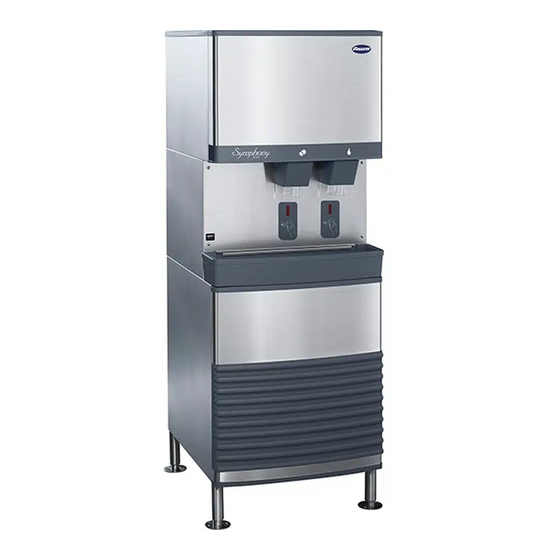

Follett Symphony Plus 110 Series Installation Manual
Ice and water dispenser
Hide thumbs
Also See for Symphony Plus 110 Series:
- Manual (6 pages) ,
- Installation, operation and service manual (40 pages) ,
- Operation and service manual (36 pages)
Table of Contents
Advertisement

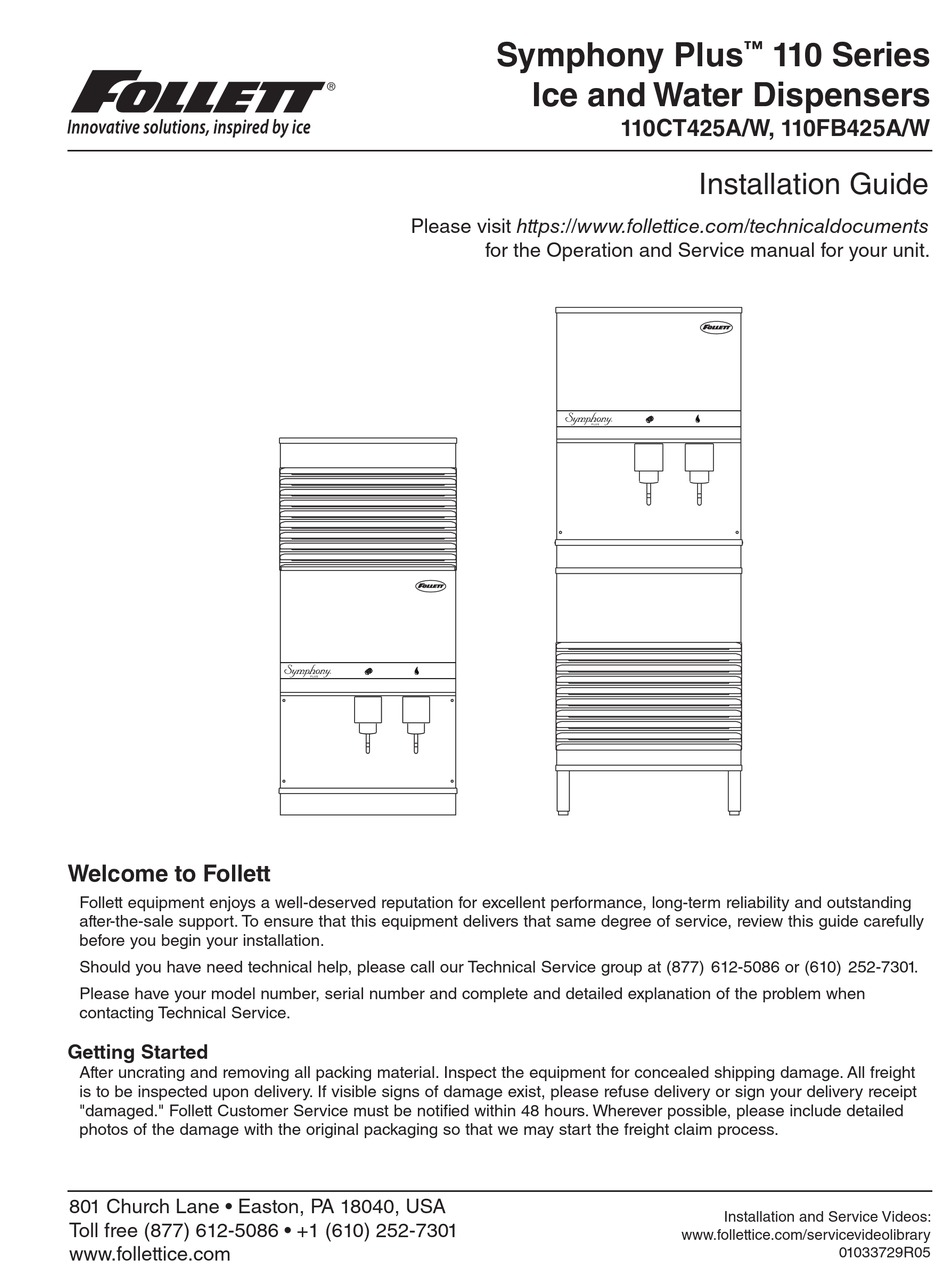

110CT425A/W
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide carefully
before you begin your installation.
Should you have need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material. Inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Symphony Plus
Please visit https://www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
110CR425A/W
110CT425A/W
Ice and Water Dispensers
110CT425A/W, 110FB425A/W
Installation Guide
110CR425A/W
110FB425A/W
www.follettice.com/servicevideolibrary
110 Series
™
110FB425A/W
Installation and Service Videos:
01033729R05
Advertisement
Table of Contents
Related Manuals for Follett Symphony Plus 110 Series
Summary of Contents for Follett Symphony Plus 110 Series
- Page 1 If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
- Page 2 § Follett recommends a Follett water filter system be installed in the ice machine inlet water line (standard capacity #00130229, high capacity #00978957, carbonless high capacity #01050442).
-
Page 3: Specifications
Specifications Electrical § Freestanding and countertop models (110FB425A/W, 110CT425A/W) require a dedicated circuit. Total system Max. circuit Basic electrical: 115 V/60 Hz/1 phase 11.0A § Dispensers and ice machines are supplied with 7-foot power cord with NEMA 5-15 hospital-grade plug. Connect to a dedicated 15A circuit. -
Page 4: Installation
Installation Before you begin § All dispensers must be installed level in both directions to ensure proper operation. § All countertop dispensers provide the option of taking utilities out the bottom or back of the dispenser. See counter cut-out (Fig. 2) for bottom exiting utilities on units with and without drain pans. For installations where utilities will exit through back of dispenser, refer to back view drawings. - Page 5 Fig. 1 – Rear connections, freestanding models power cord NEMA 5-15 access panel 3/4" MPT drain 12.25 " (31.2 cm) 4.75 " (11.9 cm) 3/8" FPT condenser inlet location 3/8" FPT (water-cooled only) water inlet 3/8" FPT condenser outlet location 4.5 "...
- Page 6 (4) 3/8" holes in counter to anchor dispenser to counter (Fig. 2). Note: Follett countertop dispensers can have any or all utilities run directly through counter or out rear of dispenser. For dispensers with any utilities exiting through counter, make counter cut-out (Fig.
- Page 7 Fig. 4 – Rear connections, countertop models CONDENSER INLET 3/8" NPT FEMALE WATER COOLED ONLY 8.22" (201 cm) CONDENSER OUTLET 3/8" NPT FEMALE 6.06" (15.5 cm) WATER COOLED ONLY POTABLE WATER INLET 3/8" NPT FEMALE DRAIN 3/4" NPT MALE 44.97" (114 cm) 41.97"...
-
Page 8: Installing Top Mount Ice Machines
Installing top mount ice machines Models 110CT425A/W CAUTION! Dispensers with top mount ice machines cannot be mounted on legs. They must be bolted to counter. Use gloves when lifting ice machine to protect hands from sheet metal edges. 1. Remove dispenser top front cover by removing two screws at bottom corners of cover, lifting cover slightly and pulling forward. - Page 9 VENT 8. Connect molded drain tube to evaporator drain pan, purge solenoid and rear drain fitting. CLEANING CUP RESERVOIR FILL SOLENOID NOZZLE WATER SUPPLY WATER 3/8" FPT, 45-90 F (7-32 C) RESERVOIR 10-70 PSI (69-483 KPA) DRAIN PAN TO DRAIN CUP ➊...
-
Page 10: Cleaning And Sanitizing
Follett recommends sanitizing the pressurized water lines prior to cleaning the ice machine/dispenser. Follett offers two kits: order P/N 01089572 when a Follett filter system with a pre-filter bowl is present, or P/N 01089580 when a Follett filter system is not present. Follow the instructions provided with the respective kits to sanitize the pressurized water lines immediately before cleaning the ice machine/dispenser. -
Page 11: Semi-Annually (More Often If Conditions Dictate)
SafeCLEAN Plus Solution: Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. [OPTIONAL] No-rinse Sanitizing Solution: Follow the directions on the Nu-Calgon IMS-III packaging to mix 1 gal. - Page 12 Finish cleaning – SafeCLEAN Plus only 10. If the dispenser is not equipped with a Chilled Water Accessory, skip to Step 11. a. Remove four screws securing splash panel. b. Disconnect 3/4" (19 mm) drain line from bottom of chilled water canister. c.
- Page 13 [OPTIONAL] Finish cleaning – No-rinse sanitizing with Nu-Calgon IMS-III 10. Press CLEAN switch. The MAINTENANCE light will turn on and the machine will drain. Wait for the LOW WATER light to turn on. 11. Remove lid from cleaning cup and fill (about 1 quart) until sanitizing solution completely fills the reservoir. Place lid back on cup.
-
Page 14: Dispenser Troubleshooting
Dispenser troubleshooting CAUTION! § Disconnect power to unit before putting hands or arms in storage area or attempting any repair or service to equipment. Before calling for service 1. Check that no ice is in the dispenser bin area. 2. Check that congealed ice is not causing a jam. 3. - Page 15 SensorSAFE model troubleshooting guide SensorSAFE Board LED Status ICE/ Problem Action Corrective Action Does not Check Check circuit breakers and power switch. dispense ice LEDs on the Restore power or replace defective switch. and/or water. SensorSAFE Press clean switch on lower left side of electrical control board.
- Page 16 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett ® equipment. Our goal is to deliver high value products and services that earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support.
