Neutral Adjustment; Return-To-Neutral Adjustment - Simplicity Cobalt Series Operator's Manual

Regular Maintenance

Neutral Adjustment

If the tractor "creeps" while the ground speed control levers
are locked in NEUTRAL, then it may be necessary to adjust
the linkage rod.
1. Park the machine on a hard, level surface such as a
concrete floor. Disengage the PTO, engage the parking
brake, and turn off the engine.
CAUTION
This adjustment should not be performed while the
machine is running.
2. The locking nuts (D, Figure 35) are to be used together
to turn the rod. Loosen the jam nut that locks against
the ball joint (B) and turn the linkage rod (A) to adjust:
• If the machine creeps forward, turn the rod clockwise
(while standing at the rear of the machine, facing
forward);
• If the machine creeps backward, turn the rod counter-
clockwise (while standing at the rear of hte machine,
facing foward).
3. Lock the jam nut (B) against the ball joint (C) when
neutral is achieved.
4. Start the engine.
5. Disengage the parking brake and lock the ground speed
control levers in the neutral position.
6. If the machine still "creeps," repeat the Neutral
Adjustment procedure. It may take several attempts to
achieve neutral, depending on how much the machine
creeps.

Return-to-Neutral Adjustment

Checking the Adjustment:
To determine if it is necessary to adjust the neutral return,
perform the following steps.
1. Disengage the PTO, engage the parking brake and turn
off the engine.
2. Move the ground speed control levers into the operating
position, pull levers rearward and release.
3. Move the ground speed control levers out towards the
neutral position. If the levers do not align with the
notches in the neutral lock plate, it is necessary to adjust
the neutral return rod.
34
B
D
A

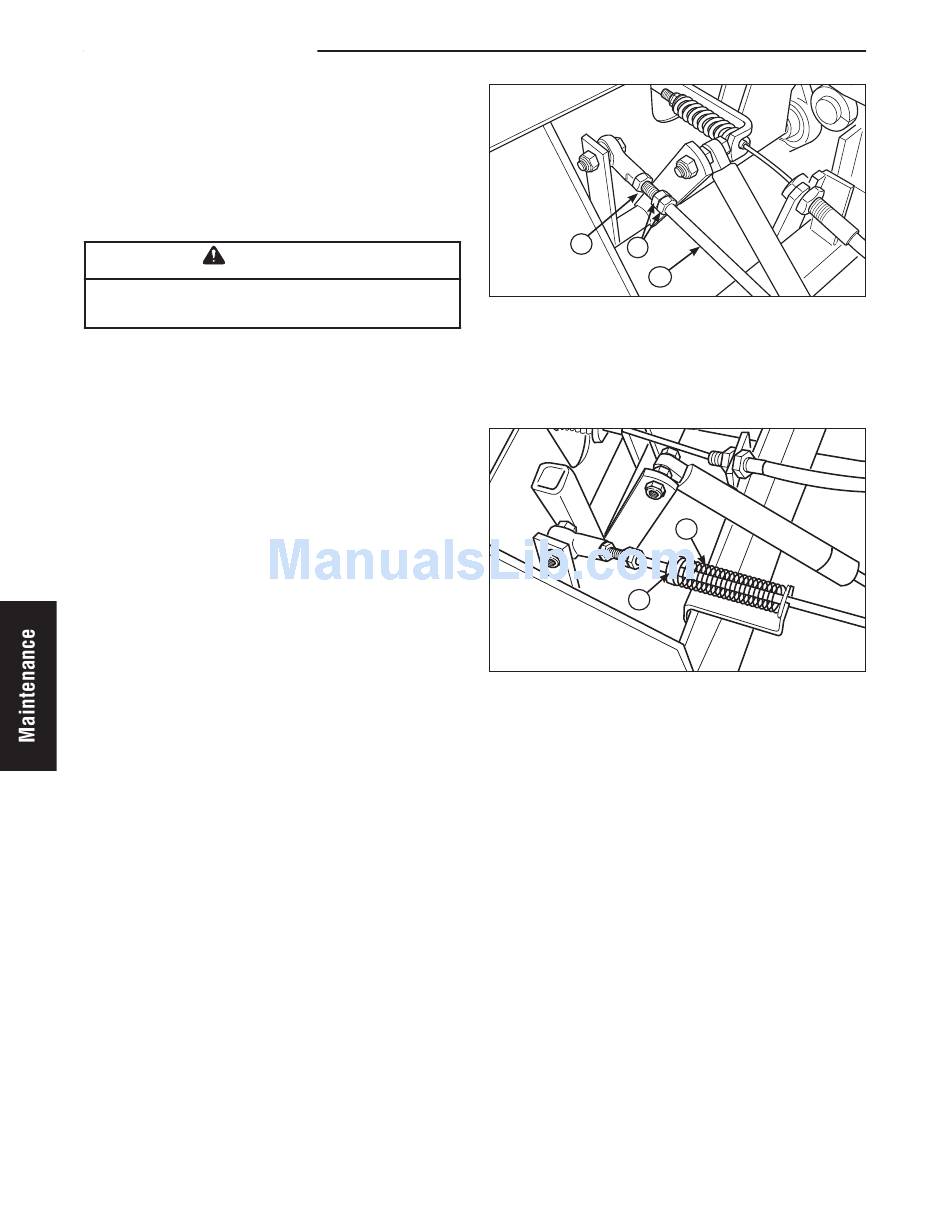

Figure 35. Neutral Adjustment (RH side shown)
A. Adjustment Linkage Rod
B. Jam Nut
C. Ball Joint
D. Locking Nuts
B
Figure 36. Return to Neutral Adjustment
A. Return Spring
B. Set Collar
Adjustment:
1. Loosen the set collar (B, Figure 36) locked against the
return spring (A).
2. Lock the ground speed control levers in neutral.
3. Tighten set collar snug against the return spring.
4. Pull lever rearward and release to check that the lever
stops aligned with notch in the neutral lock plate.
It is important to note that after every adjustment of the
neutral return spring, the lever must be returned to locked
position to properly check the neutral position.
