Summary of Contents for Bose ArenaMatch Utility AMU105

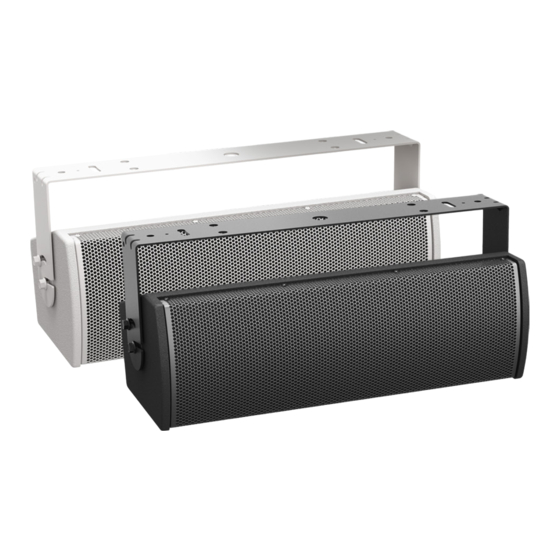

- Page 1 AMU105 AMU108 AMU208 AMU206 ArenaMatch Utility Small-format Foreground/Fill Loudspeakers AMU105 AMU108 AMU206 AMU208 Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding...
- Page 2 If you are not sure about installing the bracket, contact a Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de qualified professional installer. Ensure the bracket is installed according to local building codes.
- Page 3 Use solamente con el carro, el soporte de piso, el trípode, el soporte o la mesa Importador para México: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, especificados por el fabricante o vendidos con el dispositivo. Cuando se usa un carro, tenga precaución al moverlo con el dispositivo para evitar lesiones...
- Page 4 Importateur pour l’UE : Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Pays-Bas l’installation. Importateur pour le Mexique : Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, 6. Utilisez uniquement les accessoires spécifiés par le fabricant.
- Page 5 Importeur aus der EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Niederlande nur in Übereinstimmung mit den Herstelleranweisungen auf. Importeur aus Mexiko: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas 6. Verwenden Sie nur Zubehör-/Anbauteile, die vom Hersteller zugelassen sind.
- Page 6 Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi Utilizzare solo carrelli, supporti, treppiedi, staffe o tavoli specificati dal Importatore per il Messico: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, produttore o venduti insieme all'apparecchio. Quando si utilizza un carrello, Lomas de Chapultepec, 11000 México, D.F.
- Page 7 Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland instructies van de fabrikant. Importeur in Mexico: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de 6. Gebruik uitsluitend aansluitstukken/accessoires die door de fabrikant worden gespecificeerd.
-
Page 8: Table Of Contents
Package Contents .................................... 10 Optional Accessories ..................................10 Inspection & Maintenance ..................................11 Maintaining Weather Resistance ..............................11 Recommended Tools ....................................11 Product Dimensions ....................................12 ArenaMatch Utility AMU105................................12 ArenaMatch Utility AMU108 .................................13 ArenaMatch Utility AMU206 ............................... 14 ArenaMatch Utility AMU208 ................................15 Installation Input Panel ........................................16 Securing the Wiring ....................................16... -
Page 9: Overview
PRO.BOSE.COM Overview Built for zone-fill coverage or high-SPL foreground music, Bose ArenaMatch Utility loudspeakers feature similar tonal balance to ArenaMatch array modules but in compact designs. With an IP55 weather rating and the same EMB2S compression driver as ArenaMatch arrays, ArenaMatch Utility loudspeakers ensure consistent and intelligible high-level sound for any outdoor venue. -
Page 10: Arenamatch Utility Loudspeakers
Overview PRO.BOSE.COM ArenaMatch Utility Loudspeakers AMU105 AMU108 AMU206 AMU208 Package Contents Each ArenaMatch Utility loudspeaker carton includes the following: AMU105 AMU108 AMU206 AMU208 Loudspeaker U-bracket M8 screws M4 screws Input cover Rubber washers T3 square drive Optional Accessories ArenaMatch Utility loudspeakers are compatible with the RMU pan-and-tilt bracket (WBPWR-50) and various third-party pole-mount kits. -
Page 11: Inspection & Maintenance
Overview PRO.BOSE.COM Inspection & Maintenance WARNING: The loudspeaker and all mounting components must be inspected annually by a qualified professional who is trained and certified in suspending loudspeaker systems. All rigging parts and components used in the suspension of the loudspeaker system should be visually inspected for signs of cracking, bending, water damage, corrosion, de-lamination, or any other condition that could comprise the system's integrity and create a dangerous falling hazard. -
Page 12: Product Dimensions
Overview PRO.BOSE.COM Product Dimensions ArenaMatch Utility AMU105 Product net weight: 6.5 kg (14.4 lb) / 7.5 kg (16.5 lb) with U-bracket Top View Side View 332 mm 13.1 in 190 mm 56 mm 7.5 in 2.2 in Front View Rear View... -
Page 13: Arenamatch Utility Amu108
Overview PRO.BOSE.COM ArenaMatch Utility AMU108 Product net weight: 10.6 kg (23.3 lb) / 12.6 kg (27.7 lb) with U-bracket Top View Side View 498 mm 19.6 in 262 mm 54 mm 10.3 in 2.1 in Front View Rear View No Bracket 470 mm 18.5 in... -
Page 14: Arenamatch Utility Amu206
Overview PRO.BOSE.COM ArenaMatch Utility AMU206 Product net weight: 12.2 kg (26.8 lb) / 13.8 kg (30.5 lb) with U-bracket Top View Side View 234 mm 55 mm 580 mm 9.2 in 2.2 in 22.8 in Front View Rear View No Bracket 552 mm 21.8 in... -
Page 15: Arenamatch Utility Amu208
Overview PRO.BOSE.COM ArenaMatch Utility AMU208 Product net weight: 17.0 kg (37.5 lb) / 19.5 kg (43.0 lb) with U-bracket Top View Side View 262 mm 54 mm 713 mm 10.3 in 2.1 in 28.1 in Front View Rear View No Bracket 686 mm 27.0 in... -
Page 16: Installation
Installation PRO.BOSE.COM Installation Input Panel The input panel for all models are identical. They include a single screw-terminal barrier strip. Each terminal accepts a wire gauge of 10 AWG to 18 AWG. 100V Tap switch: Rotate to adjust tap setting. Use a flathead screwdriver. -
Page 17: Attaching The Input Panel Cover
Installation PRO.BOSE.COM Attaching the Input Panel Cover ArenaMatch Utility loudspeakers are shipped with the rear input panel cover not installed. Once you've made input wiring connections, secure the cover over the input panel with the included M4 screws. Loudspeaker Pitch Angles... -
Page 18: Mounting Amu Loudspeakers With The U-Bracket
Installation PRO.BOSE.COM Mounting AMU Loudspeakers with the U-bracket CAUTION: Before installation, determine the location and position of your AMU loudspeaker. Only remove the plastic inserts that are necessary for your installation. The plastic inserts are factory sealed to prevent water damage. If any insert is left unsealed after installation, the weather-resistant integrity of your loudspeaker could be compromised. -
Page 19: Rotating The High-Frequency Waveguides
Installation PRO.BOSE.COM Rotating the High-frequency Waveguides The high-frequency waveguide in the AMU108, AMU206, and AMU208 loudspeakers can be rotated to provide the desired coverage pattern for horizontal or vertical loudspeaker mounting. These loudspeakers are assembled in the factory for horizontal mounting. To rotate the waveguide for vertical mounting, do the following. -
Page 20: Recommended Amplifier Power
Digital signal processing (DSP) equipment is required for infrasonic protection, equalization, and voltage limiting protection. Recommended loudspeaker DSP presets are available in Bose ControlSpace Designer software and are designed for use with Bose PowerMatch configurable professional amplifiers and ControlSpace ESP and EX processor hardware (sold separately). Painting the Enclosure The loudspeaker enclosure for all ArenaMatch loudspeaker modules can be painted. -
Page 21: Technical Specifications
Footnotes Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration. AES standard 2-hour duration with IEC system noise. Sensitivity measured in anechoic environment with recommended bandpass and EQ. -
Page 22: Amu108
Footnotes Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration. AES standard 2-hour duration with IEC system noise. Sensitivity measured in anechoic environment with recommended bandpass and EQ. -
Page 23: Amu206
Footnotes Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration. AES standard 2-hour duration with IEC system noise. Sensitivity measured in anechoic environment with recommended bandpass and EQ. -
Page 24: Amu208
Footnotes Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration. AES standard 2-hour duration with IEC system noise. Sensitivity measured in anechoic environment with recommended bandpass and EQ. - Page 28 ©2018 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM830462 Rev. 00 December 2018...
