Instruction Manual
D103664X012
August 2018
BM6X Series Slam-Shut Valve
SUMMARY
Introduction ........................................................................ 1
PED Categories and Fluid Group ...................................... 2
Characteristics ................................................................... 2
Labelling ............................................................................ 2
Overpressure Protection .................................................... 2
Transport and Handling ..................................................... 3
Atex Requirements ............................................................ 3
Slam-Shut Controller ......................................................... 4
Dimensions and Weights ................................................... 5
Operation ........................................................................... 6
Installation ......................................................................... 7
Startup ............................................................................... 8
Slam-Shut Controller Adjustment ...................................... 9
Shutdown ........................................................................... 9
Maintenance ...................................................................... 9
Slam-Shut Controller Maintenance .................................... 10
Spare Parts ........................................................................ 12
Troubleshooting ................................................................. 12
Parts Lists .......................................................................... 13
Schematic Assemblies ....................................................... 14
INTRODUCTION
Scope of the Manual
This manual provides instructions for installation, startup,
maintenance and spare parts ordering for the BM6X
Series slam-shut valves. It also contains information for the
OS/80X-R Series slam-shut controller.

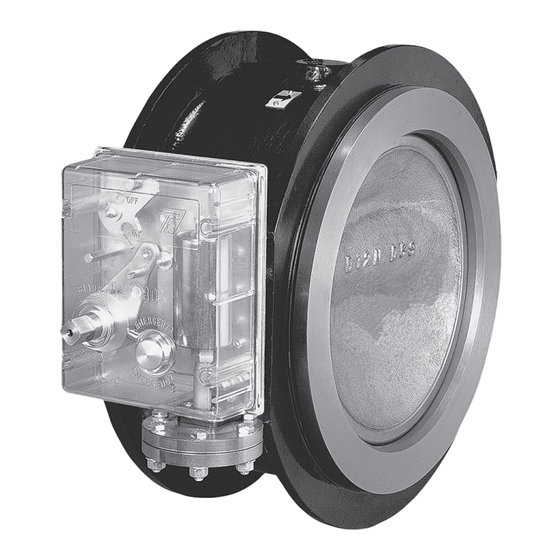

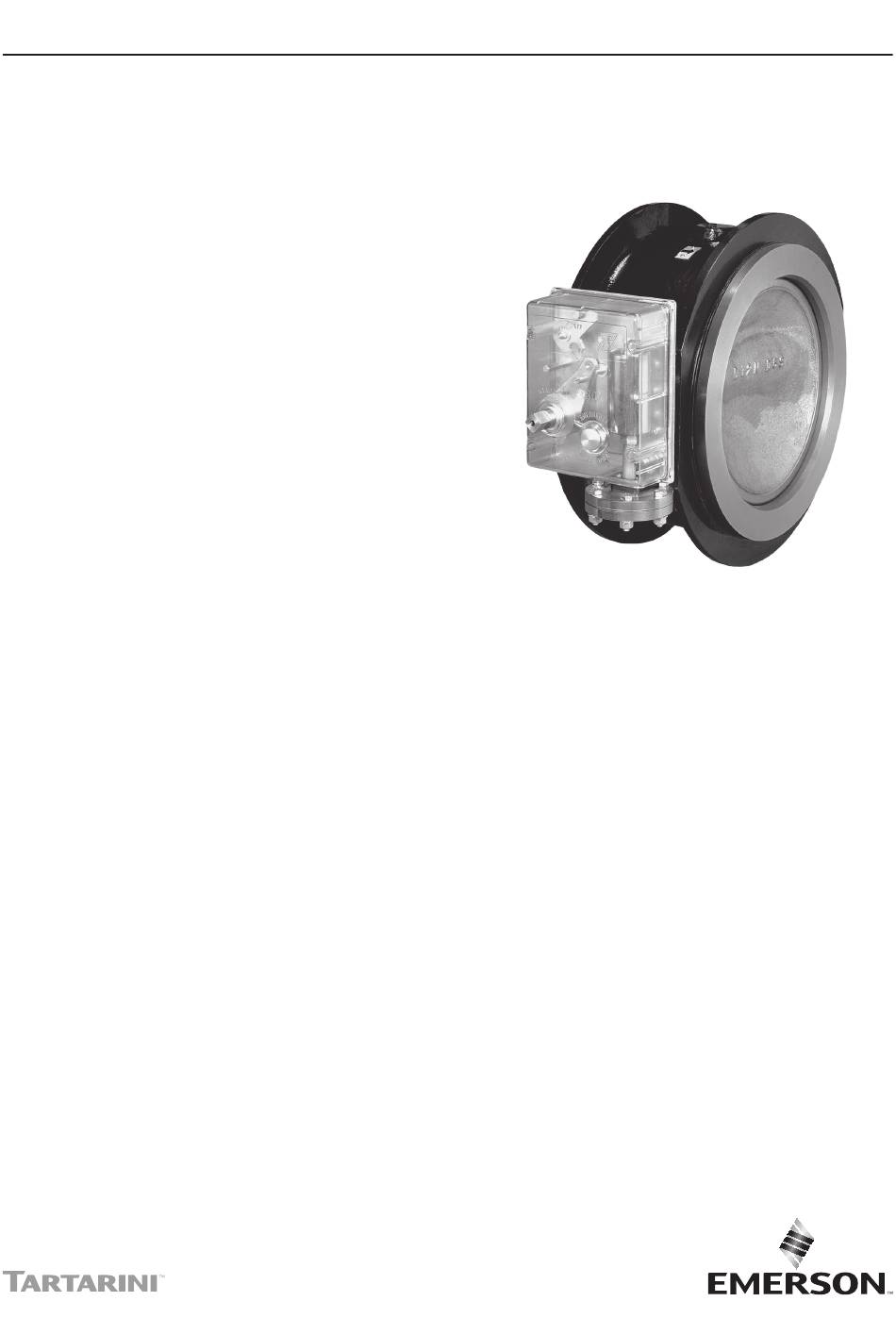

Figure 1. BM6X Series Slam-Shut Valve
Product Description
The BM6X Series slam-shut valves are axial flow type and
are used in natural gas reduction, distribution and
transfer stations.
This product has been designed to be used with fuel gases
of 1
and 2
family according to EN 437, and with other non
st
nd
aggressive and non fuel gases. For any other gases, other
than natural gas, please contact your local sales agent.
The standard gas pressure devices (safety shut-off
devices - SSD slam-shut type) are those used in the
assemblies dealt with into EN 12186 and EN 12279 and
their use has to be under the provisions into
ENs 12186 & 12279.
In the safety slam-shut valves manufactured by Emerson
shall be used additional pressure accessories (e.g. controller
or filters) manufactured and labeled by Emerson.
Emerson will not be responsible for any possible inefficiency
due to installation of non Emerson production additional
pressure accessories.
When pressure containing parts of safety slam-shut device
(SSD) valve and controller have different maximum allowable
pressures (PS), the SSD is the differential strength type.
BM6X Series
Advertisement
Table of Contents
Related Manuals for Emerson Tartarini BM6X Series
Summary of Contents for Emerson Tartarini BM6X Series
-
Page 1: Table Of Contents
In the safety slam-shut valves manufactured by Emerson shall be used additional pressure accessories (e.g. controller INTRODUCTION or filters) manufactured and labeled by Emerson. Emerson will not be responsible for any possible inefficiency Scope of the Manual due to installation of non Emerson production additional pressure accessories. -
Page 2: Ped Categories And Fluid Group
BM6X Series PED CATEGORIES AND FLUID GROUP Functional Features Accuracy Class AG : ± 1% According to EN 14382, only in integral strength type and Response Time : ≤ 1 second Class A configuration (when both over and under pressure protections are set up), this slam-shut valve can be classified like a safety accessory according to Pressure Equipment Temperature... -
Page 3: Transport And Handling
BM6X Series Downstream side pressure after slam-shut valve’s the equipment(s) / electrical circuit is connected to intervention shall stay within the actual maximum operating a suitable and certified intrinsically safe apparatus set-up range to avoid anomalous back pressures that can (suitable zener barrier) damage the SSD’s controller. -
Page 4: Slam-Shut Controller
BM6X Series SLAM-SHUT CONTROLLER The BM6X Series slam-shut valves are equipped with the Type OS/80X-R or OS/80X-R-PN slam-shut reinforced version controller. The controllers are supplied in different models according to set ranges required. Table 3. Characteristics for Type OS/80X-R Spring Loaded Pneumatic Slam-Shut Controller OVERPRESSURE SET RANGE UNDERPRESSURE SET RANGE SERVOMOTOR... -
Page 5: Dimensions And Weights
BM6X Series DIMENSIONS AND WEIGHTS Figure 5. BM6X Series Dimensions Table 5. BM6X Series Dimensions (mm) TYPE DN 80 DN 100 DN 150 DN 200 DN 250 DN 300 ANSI 150 ANSI 300 ANSI 600 N.B. The B dimensions are indicative and refer to the models with larger dimensions. The threaded opening for the connection of the control line is 1/4”... -
Page 6: Operation
BM6X Series OPERATION Lip seal Spring Type IT/2V by-pass valve Controller Off-center butterfly shutter Controlled pressure Reset shaft Figure 6. BM6X Series Operational Schematic Slam-shut Valve The BM6X Series slam-shut valve consists of a “wafer” type The slam-shut valve can only be opened if the upstream and valve body, an pilot and a by-pass valve. -
Page 7: Installation
BM6X Series INSTALLATION Type Type PS/79-1 PS/79-1 Type BM6X OS-80X Monitor Regulator SLAM-SHUT VALVE WITH TYPE OS/80X-R CONTROLLER - INSTALLATION IN A LOW PRESSURE REGULATING LINE Type Type PS/79 PS/79 Type BM6X OS-80X Monitor Regulator (1 mm) Type Type PRX/182-PN PRX/181-PN SLAM-SHUT VALVE WITH TYPE OS/80X-R-PN CONTROLLER - OVERPRESSURE AND UNDERPRESSURE CONTROL DOWNSTREAM OF REGULATORS LEGEND:... -
Page 8: Startup
BM6X Series INSTALLATION (CONTINUED) All means for venting have to be provided in the assemblies where the pressure equipment are installed (ENs 12186 & 12279). • Ensure that the data found on the slam-shut valve label are compatible with usage requirements. All means for draining have to be provided in •... -
Page 9: Slam-Shut Controller Adjustment
BM6X Series The frequency of inspection/checks and replacement CAUTION depends upon the severity of service conditions and according to applicable National or Industry codes, In case you note an excessive resistance standards and regulations/recommendations. in the opening operation, possible ΔP In accordance with applicable National or Industry codes, upstream/downstream can be the root cause: standards and regulations/recommendations, all hazards... -
Page 10: Slam-Shut Controller Maintenance
BM6X Series In addition: d. After the reassembly completion, check the proper functioning of all parts. Check the valve with soapy water, a. Complete reassembly and make sure to tighten all making sure there are no leaks. screws uniformly. e. Remount valve on the line and reestablish all connections. b. - Page 11 BM6X Series b. Through the pressure control connection, use a small b. Replace O-ring (key 67) and lip seal (key 66). pump or other appropriate means, to raise the pressure to normal operating level. Reset slam-shut controller after c. Reassemble by reversing the above procedures. cut-off in step a.
-
Page 12: Spare Parts
BM6X Series c. Now remount lever assembly (keys 17 and 2), rollers f. Use minimum adjusting screw (key 49) to load spring (key 10), keeping them in their seat with grease, and stem (key 54) slowly until pilot is triggered. (key 6), which is to be turned so the rollers enter their g. -
Page 13: Parts Lists
BM6X Series PARTS LISTS BM6X Series OS/80X-R Series Slam-Shut Valve Slam-Shut Controller (See Figures 9 and 10) (See Figure 11) Description Description Description Eyebolt Plate Screw Shaft Minimum pressure adjusting screw Releasing bushing O-ring Screw Maximum pressure adjusting nut Antiextrusion ring Pipe assembly Gasket O-ring... -
Page 14: Schematic Assemblies
