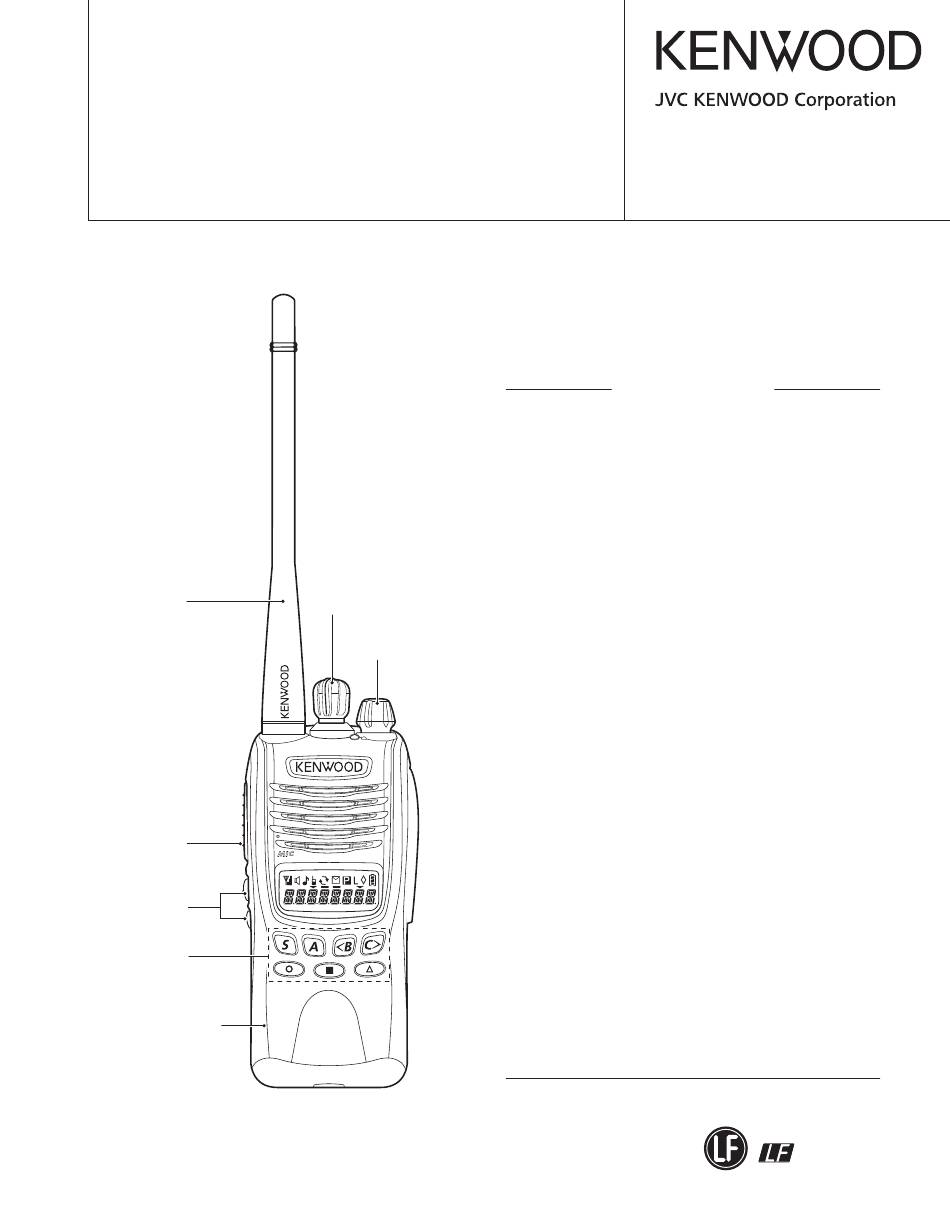

UHF FM TRANSCEIVER
TK-3310
SERVICE MANUAL
Whip antenna
(T90-1039-25)
Button knob (PTT)
(K29-9425-03)
Button knob
(SIDE1/SIDE2)
(K29-9426-03)
Key top (7key)
(K29-9463-12)
Plastic cabinet assy
(A02-4188-03)
This product complies with the RoHS directive for the European market.
Knob (Selector)
(K29-9427-03)
Knob (Volume)
(K29-9309-13)
© 2012-2 PRINTED IN JA PAN
B53-7013-00 ( Y ) 30
CONTENTS
GENERAL ....................................................2
SYSTEM SET-UP .........................................3
REALIGNMENT ...........................................3
DISASSEMBLY FOR REPAIR ...................10
CIRCUIT DESCRIPTION ...........................13
SEMICONDUCTOR DATA .........................18
COMPONENTS DESCRIPTION ................19
PARTS LIST ...............................................20
EXPLODED VIEW ......................................27
PACKING ...................................................28
ADJUSTMENT ...........................................29
TX-RX UNIT (X57-7890-71) ....................34
SCHEMATIC DIAGRAM ............................38
BLOCK DIAGRAM .....................................44
LEVEL DIAGRAM ......................................46
SPECIFICATIONS .................. BACK COVER
This product uses Lead Free solder.
