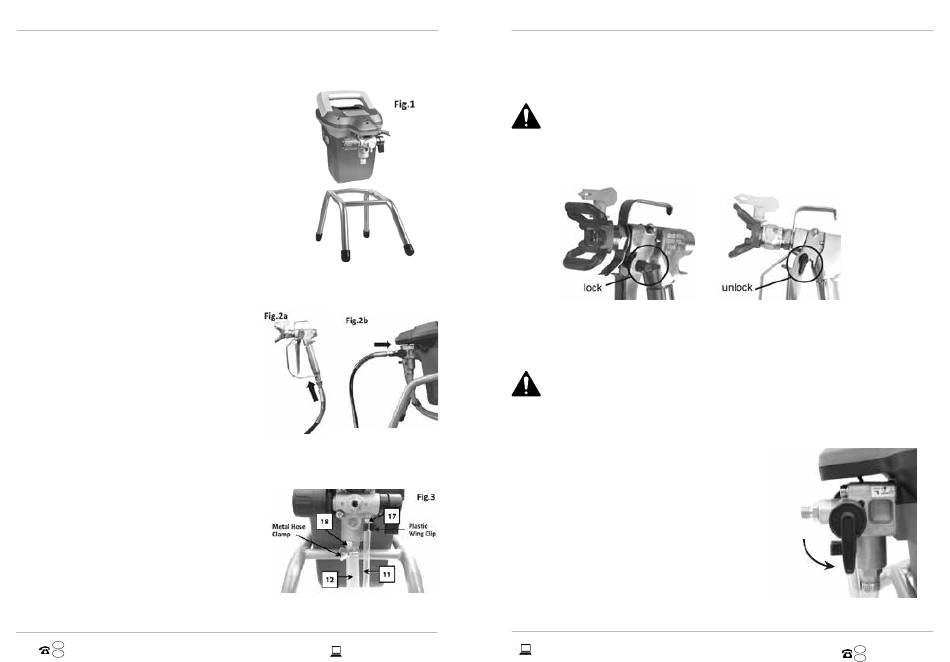

8. ASSEMBLY

8.1 Attaching paint sprayer to metal stand
(Fig.1)
a) Put the paint sprayer onto the metal
stand.
b) Ensure the holes in the metal stand
align with the holes in the paint sprayer.
c) Insert the hex bolts with the spring
washer and flat washer into each of the
four holes on the metal stand and screw
them into the holes of the paint sprayer.
d) Tighten the hex bolts with the wrench
provided.
8.2 Connecting the spray hose (Fig.2a&2b)
a) Connect one end of the spray hose to
the paint outlet port. Tighten it with the
wrench provided.
b) Connect the other end of the spray hose
to the spray gun. Tighten it with the
wrench provided.
8.3 Connecting the suction tube and return tube (Fig.3)
a) Attach the suction tube (12) to the
suction tube inlet port (18). Tighten the
metal hose clamp (18) by hand.
b) Attach the return tube (11) to the return
tube inlet port (17). Place the plastic
wing clip over the return tube inlet port
(17) to secure the return tube (11).
01904 727506
GB
14
01247 5150
IRE
Assembly

Operation

9. OPERATION
9.1 Trigger Lock (Fig.4)
prevent the gun from being triggered accidentally by hand or if dropped
or bumped.
9.2 Pressure relief procedure (Fig.5)
pressure from the spray hose when you turn off the airless spray station.
a) Turn the power switch OFF and unplug the
power cord.
b) Turn Prime/Spray knob to the prime
position.
c) Point the spray gun into a paint bucket or
waste container.
d) Unlock the trigger and press the trigger to
relieve pressure.
e) Once pressure is relieved, engage the
trigger lock.
f) Leave the Prime/Spray valve in the PRIME
position until you are ready to spray again.
support@coreservice.co.uk
WARNING! Always lock the spray gun when you stop spraying to
Fig.4
WARNING! Always follow the pressure relief procedure to relieve the
support@coreservice.co.uk
700W AIRLESS SPRAY STATION
Fig.5
