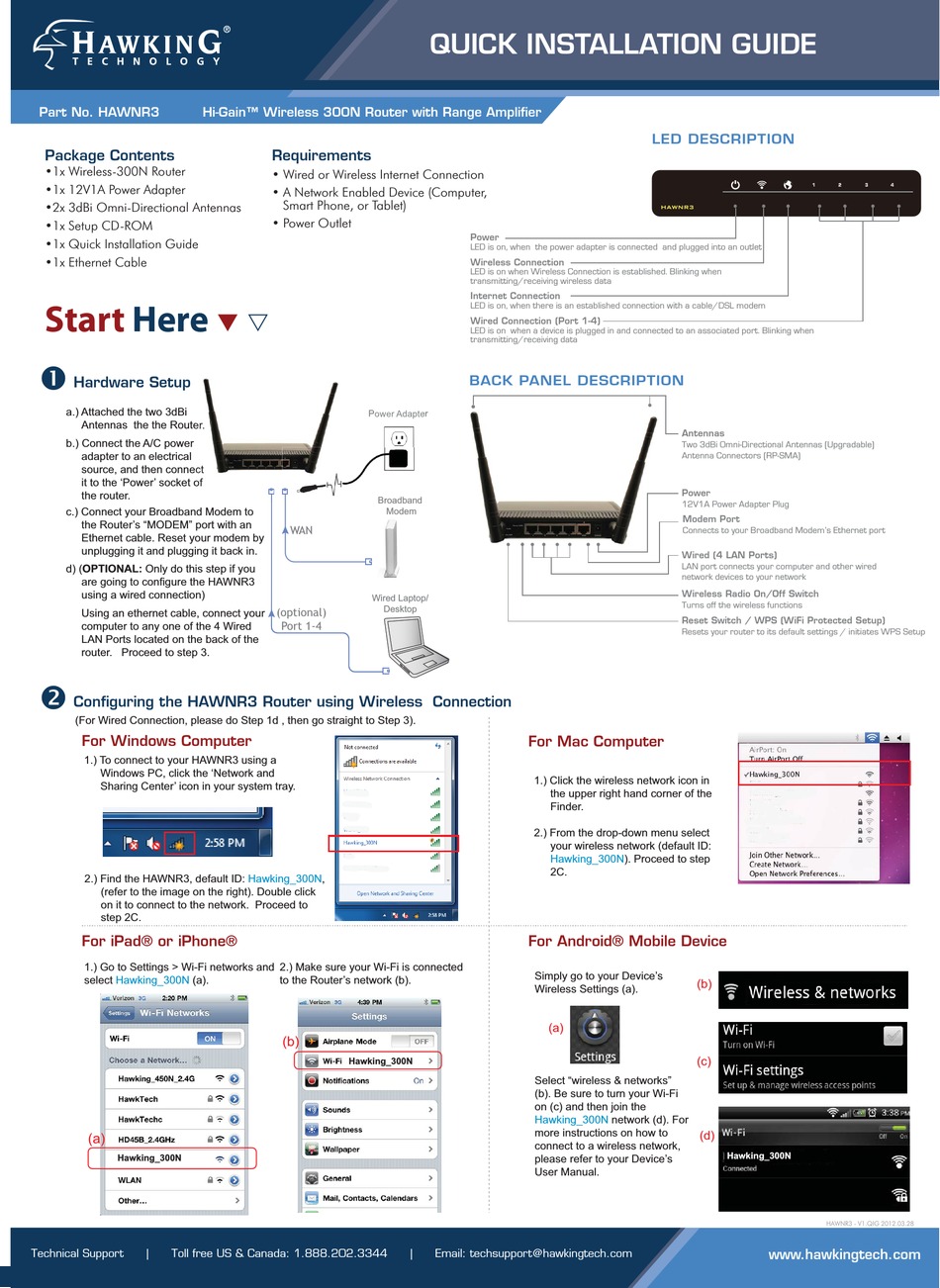

Hawking HAWNR3 Quick Installation Manual

Part No. HAWNR3 Hi-Gain™ Wireless 300N Router with Range Amplifier

Package Contents

Start Here

Hardware Setup

a.) Attached the two 3dBi
Antennas the the Router.
b.) Connect the A/C power
adapter to an electrical
source, and then connect
it to the 'Power' socket of
the router.
c.) Connect your Broadband Modem to
the Router's "MODEM" port with an
Ethernet cable. Reset your modem by
unplugging it and plugging it back in.
d) (OPTIONAL: Only do this step if you
are going to configure the HAWNR3
using a wired connection)
Using an ethernet cable, connect your
computer to any one of the 4 Wired
LAN Ports located on the back of the
router. Proceed to step 3.
Configuring the HAWNR3 Router using Wireless Connection
(For Wired Connection, please do Step 1d , then go straight to Step 3).
For Windows Computer
1.) To connect to your HAWNR3 using a
Windows PC, click the 'Network and
Sharing Center' icon in your system tray.
2.) Find the HAWNR3, default ID: Hawking_300N,
(refer to the image on the right). Double click
on it to connect to the network. Proceed to
step 2C.
For iPad® or iPhone®
1.) Go to Settings > Wi-Fi networks and
select Hawking_300N (a).
(a)
Hawking_300N
Hawking_HD45R_...
