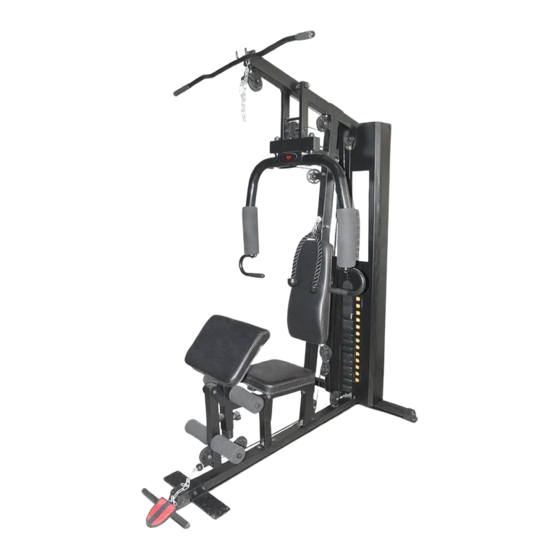

SS2 SINGLE STATION
OWNER'S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for future
reference.
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at
www.lifespanfitness.com.au
Advertisement
Table of Contents
Related Manuals for Cortex SS2
Summary of Contents for Cortex SS2

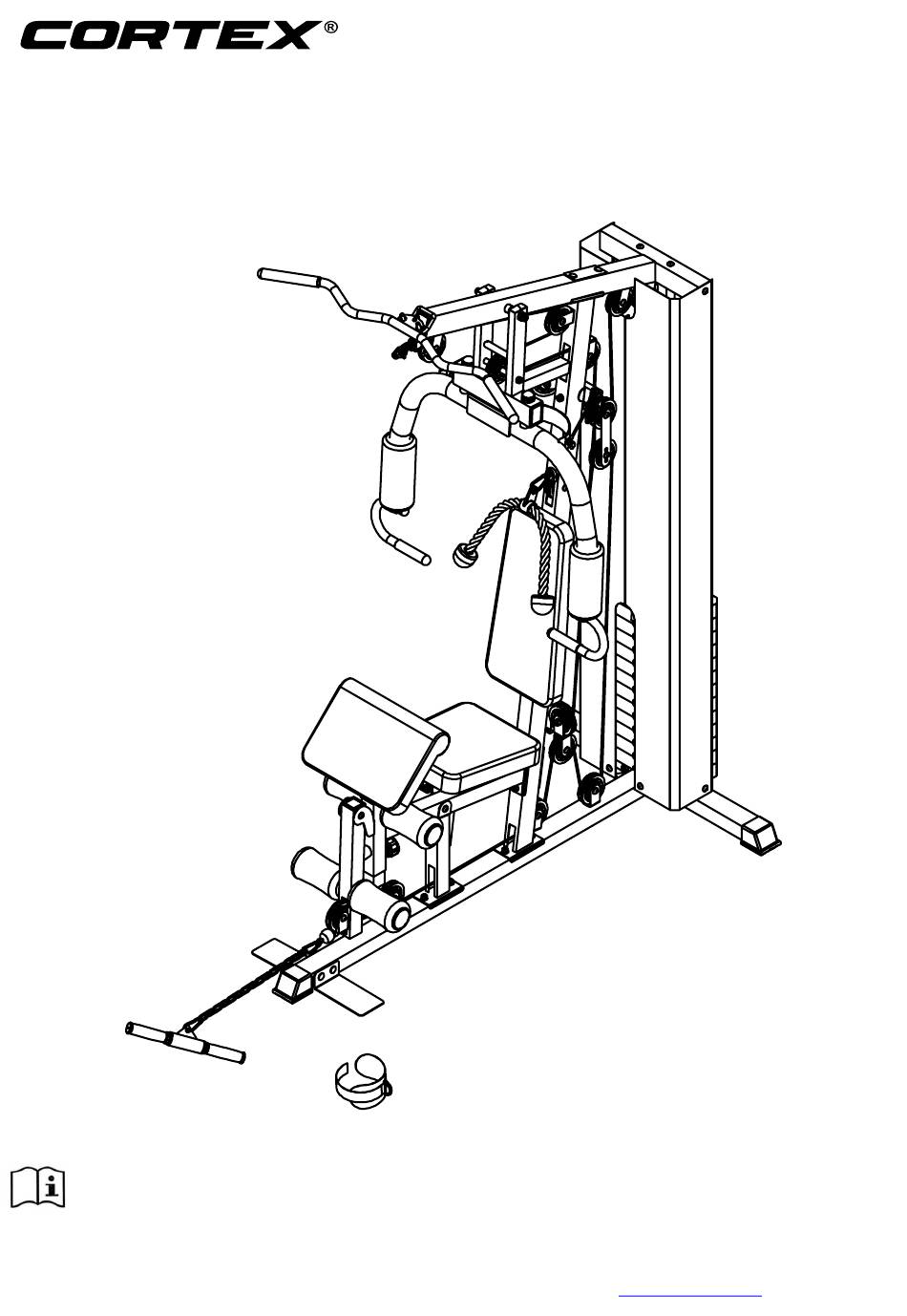

- Page 1 SS2 SINGLE STATION OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at...
- Page 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PARTS LIST ASSEMBLY INSTRUCTIONS WARRANTY SS2 SINGLE STATION...
-
Page 3: Important Safety Instructions
Do not place any sharp objects around the machine. Users with disabilities should not use the machine without a qualified person or physician in attendance. Never operate the machine if the machine is not functioning properly. A spotter is recommended during exercise. SS2 SINGLE STATION... -
Page 4: Parts List
Spring pull pin 15 Ring chains Plug 50x45 Handle Chest foam Bushing Seat frame Handle pipe Seat cushion Handle cover Washer Φ8 Foot set Pan head screw M8x40mm L-pin Arm frame Shield Arm pad Pan head screw M8x20mm SS2 SINGLE STATION... -
Page 5: Assembly Instructions
(17#) and 2x M10mm lock-nut (23#). 5. Connect mat reinforcement pipe (6#), fixed plate (25#) to ground piece (1#) from the bottom. a. Use 2x screw carriage M10x70mm (35#), 2x Φ10 washers (17#) and 2x M10mm lock-nut (23#). SS2 SINGLE STATION... - Page 6 Use 2x pan head screws M10x25mm (33#), 2x Φ10 gaskets (#17). 4. Connect vertical beam (5#) and plate (25#) to frame piece (4#). a. Use 2x screw carriage M10x90mm (34#), 2x Φ10 washers (17#) and 2x lock-nut M10mm (23#). SS2 SINGLE STATION...
- Page 7 Use 1x pan head screw M10x110mm (73#), 2x Φ10 washers (17#) and 1x M10mm lock-nut (23#). 6. Connect the block (74#) to the pulley bracket (72#). a. Use 2x pan head bolt M10x65mm (71#), 4x Φ10 washer (17#) and 2x M10mm lock-nut (23#). SS2 SINGLE STATION...
- Page 8 3. Connect the swing arm (48#) and axis (50#) to seat cushion frame (7#). a. Use 2x pan head screws M10x16mm (52#), 2x Φ10 washer (17#). 4. Connect arm frame (44#) to the cushion frame (7#) with spring pull pin (37#). SS2 SINGLE STATION...
- Page 9 (48#). a. Secure with 4x foam roll (54#), and 4x foam pipe plug (55#). 4. Connect the foot pedals (56#) to ground piece (1#). a. Use one foot tube (64#), and insert the two plugs (65#). SS2 SINGLE STATION...
- Page 10 Use 7x pulley (67#), 6 Allen pan head screw M10x45mm (63#), 1x Allen pan head screw M10x175mm (24#), 10x Φ10 washer (17#), 7x M10mm lock-nut 1 (23#), 1x wheel rack (69#). SS2 SINGLE STATION...
- Page 11 2. Set up the 3020mm cable (77#) with the rest of the frame. a. Use cross roller frame (68#), 3x pulleys (67#), 3x socket head pan head screw M10x45mm. 3. (63#), 6x Φ10 washer (17#) and 3x M10mm lock-nut (23#). SS2 SINGLE STATION...
- Page 12 1. Attach the 4040mm cable (75#). a. Use 8x pulleys (67#), 7x Allen pan head screw M10x45mm (63#), 1x Allen pan head screw M10x65mm (71#), 16x Φ10 washer (#17), 8x M10mm lock-nut (#23), 2x pulley sleeves (70#). SS2 SINGLE STATION...
- Page 13 3. Connect 4040mm cable (75#) with row bar (84#). a. Use 2x C shape buckles (78#) and 1x 15 ring chain (83#). 4. Connect the Cable set (79#) with 4040mm cable (75#). a. Use 1x shape buckle (78#). SS2 SINGLE STATION...
- Page 14 Please visit our website to view our full warranty terms and conditions: http://www.lifespanfitness.com.au/warranty-repairs Warranty and Support: Please email us at support@lifespanfitness.com.au for all warranty or support issues. For all warranty or support related enquiries an email must be sent to lodge a support case in our system. SS2 SINGLE STATION...
