Summary of Contents for Mackie DRM12A

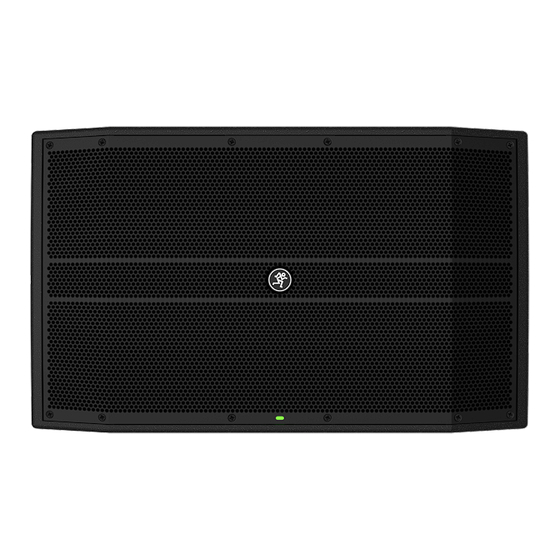

- Page 1 DRM12A 2000W 12" Arrayable Powered Loudspeaker O W N E R ’ S M A N U A L...
-
Page 2: Important Safety Instructions
A polarized plug has two blades with one wider than the other. A grounding-type WARNING: Operation of DRM12A in a residential environment could cause plug has two blades and a third grounding prong. The wide blade or the third radio interference. -
Page 3: Table Of Contents
Appendix A: Service Information ........27 • Versatile configuration options o Dual-angle pole mount Appendix B: Technical Information .........28 o Flyable with up to 4 DRM12A cabinets and 2 DRM18S DRM12A Dimensions ..........29 subwoofers using the FB100 Fly Bar DRM12A Block Diagram ..........30... -
Page 4: Introduction
PA. The DRM12A is as versatile as your shows and will scale loudspeakers arranged in a straight line. They are designed to fit your needs like no other system anywhere else. -
Page 5: Getting Started
1/4 turn clockwise to lock. Plug the other end into the AC mains supply receptacle. Date of purchase: 8. Set the gain on the DRM12A (and all other DRM boxes) to unity. Volume will be controlled via the mixer. 9. Start the signal source and raise the mixer’s main L/R fader up to a comfortably loud listening level. -
Page 6: Hookup Diagrams
If multiple DRM12As will be connected, start with the instructions as listed above. Next, connect the first DRM12A’s thru jack to the second DRM12A’s input jack using a balanced XLR cable. A short 1-2 foot cable is all that is necessary. Hook up the supplied loop Neutrik PowerCon®... - Page 7 PA. The outputs from a mixer feed the inputs of a pair of DRM12A loudspeakers. Since only two DRM12As are used, the array mode should be set to dual on both speakers and the subwoofer HPF set to off.
- Page 8 PA with wide coverage and throw is necessary. This is a great setup for local DIY bands, too. In this example, the left output from a mixer feeds the ch. 1 input of a Mackie DRM18S powered subwoofer. The ch. 1 high-pass output of the subwoofer feeds the input of a Mackie DRM12A powered loudspeaker.
- Page 9 It is possible to reproduce this exact same hookup in stereo. Simply utilize the left and right main outputs from the mixer to feed the main inputs of the first DRM12A on each side of the stage and mirror the rest of the system as described above.
- Page 10 24-26 for more information about rigging. Note that the DRM12A’s AC power may be linked via the AC Thru. Refer to page 6 for details on daisy-chaining AC power. Three ground-stacked DRM12A arrayable loudspeakers with single DRM18S...
- Page 11 75–100 foot throw. The left output from a mixer feeds the input of the top DRM12A. The output of that DRM12A feeds the input of the next DRM12A. This daisy-chained array is repeated twice more to complete the quad DRM12A setup. Here, the array mode should be set to the 3-4 position because four DRM12As are in the array.
- Page 12 Last, but not least, a VERY important warning: when the FB100 Flybar is used to suspend a system, it can not retain a 10:1 design factor at certain pick points for the largest systems. Please refer to the array usage and rigging sections, starting on page 24. Two flown DRM18S subwoofers with four DRM12A arrayable loudspeakers DRM12A 2000W 12" Arrayable Powered Loudspeaker...
-
Page 13: Drm12A Loudspeaker: Rear Panel Features
AC In jumper cable Then connect the other end of the cable to the AC from the AC Thru output of one DRM12A to the AC In mains supply receptacle. input of the next DRM12A as shown on page 6. -
Page 14: Xlr Input
This modern, high-resolution, all-color TFT LCD signal using an XLR connector. It is wired as follows, Display is one of the most vital features of the DRM12A according to standards specified by the AES (Audio loudspeaker. It displays loudspeaker information Engineering Society). -
Page 15: Drm Control Dashboard
DRM Control Dashboard™ The following list provides the high level navigation Main items, in order, on the user interface and their Push the speaker control knob to open the menu. subsequent user controlled parameters. From here, rotate the speaker control knob to scroll The default screen is the main view, as seen below: between the six selections. -
Page 16: Array Mode
(or two per side) will be used in the setup. You’re our hero, so we have a built-in submarine • 3 – 4 – Choose this if three or four Mackie DRM12A sandwich maker! After pushing the speaker control loudspeakers will be used in the setup. -
Page 17: Eq Setup
DRM12A loudspeaker only. MAIN ARRAY • DRM Sub – Choose this if a Mackie DRM18S subwoofer is connected to the system. The crossover point is set to 90 Hz to work in perfect harmony with the Mackie DRM18S Sub. This is what we hope you... -
Page 18: Delay
With a digital mixer, musicians and sound engineers can save time setting up at shows by recalling previous settings. The DRM12A’s RTA fits right in with that, literally displaying frequencies, shortening the time it takes to tune the main loudspeakers or stage monitors during setup in a new room. -
Page 19: Configuration
Configuration There are six user memory snapshots which should This is where to recall / store settings to memory, lock access to the settings, select LED screen be more than enough. brightness and more. Store – Tap this to store the current settings to the corresponding memory snapshot. - Page 20 Illuminating and selecting the left-facing arrow returns you to the previous screen. FRONT LED RESET ABOUT Like the previous sub-menus, configuration also has a left-facing arrow. Illuminating and selecting this simply returns you to the menu. DRM12A 2000W 12" Arrayable Powered Loudspeaker...
- Page 21 There is really only one reason to go here and that is if you’ve been directed so by Technical Support. CONFIGURATION MEMORY 1 2 3 4 5 6 LOCK PIN BACKLIGHT OFF DIM FRONT LED RESET ABOUT ABOUT DRM12A v1.0.26 DRM12A v410 Temp 27˚C / 81˚F Attn 0.00dB Owner’s Manual...
-
Page 22: Array Usage
Typically, line arrays are designed grasped the multiple hookup possibilities, and reviewed to be flown. However, the DRM12A may also sit on the the DRM Control Dashboard™, you are nearly an expert floor or stage as the main PA or as a front (or side) fill. -
Page 23: Protection Circuitry
Protection Circuitry AC Power The DRM12A loudspeaker employs a built-in limiter Be sure the DRM12A loudspeaker is plugged into for less distortion at peak levels. Additional protection an outlet that is able to supply the correct voltage includes automatic thermal shutdown should the amp specified for your model. -
Page 24: Rigging
Make sure that the liability, engage companies that specialize in these DRM12A is installed in a stable and secure way disciplines to do the work required. in order to avoid any conditions that may be We do offer certain accessory rigging items and some dangerous for persons or structures. - Page 25 A minimum of two rigging points must be used design factor at certain pick points. In some to hang a DRM12A. More may be used for creating situations, suspended and installed arrays may be the desired hanging angle as shown in the illustrations configured with other design factors (e.g.
-
Page 26: Room Acoustics
Room Acoustics DRM12A loudspeakers are designed to sound • Highly reverberant rooms, like many gymnasiums fantastic in nearly every application. and auditoriums, are a nightmare for sound system intelligibility. Multiple reflections off the hard walls, But, room acoustics play a crucial role in the overall ceiling, and floor play havoc with the sound. -
Page 27: Appendix A: Service Information
Appendix A: Service Information Noise If you think your DRM12A loudspeaker has a problem, please check out the following troubleshooting tips • Make sure all connections to the loudspeakers and do your best to confirm the problem. Visit the Support are good and sound. -
Page 28: Appendix B: Technical Information
Crossover Type: 24 dB/octave Array Mode Crossover Frequency: 1.0 kHz Single: Voicing for an array with 1 DRM12A Dual: Voicing for an array with 2 DRM12As 3 – 4: Voicing for an array with 3-4 DRM12As 3 – 4 Long:... -
Page 29: Drm12A Dimensions
[Be sure the pole is capable of supporting Enclosure Material: 15mm plywood the weight of the DRM12A loudspeaker] or fly via the integrated Enclosure Finish: Black Polyurea M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder eyebolts). -
Page 30: Drm12A Block Diagram
DRM12A Loudspeaker Block Diagram DRM12A 2000W 12" Arrayable Powered Loudspeaker... -
Page 31: Limited Warranty
For full terms and conditions, as well as the specific duration of the Warranty for this product, please visit www.mackie.com. The Product Warranty, together with your invoice or receipt, and the terms and conditions located at www.mackie.com constitutes the entire agreement, and supersedes any and all prior agreements between LOUD and Customer related to the subject matter hereof. - Page 32 16220 Wood-Red Road NE Woodinville, WA 98072 • USA Phone: 425.487.4333 Toll-free: 800.898.3211 Fax: 425.487.4337 www.mackie.com...
