Sharp R-930AK Operation Manual page 11

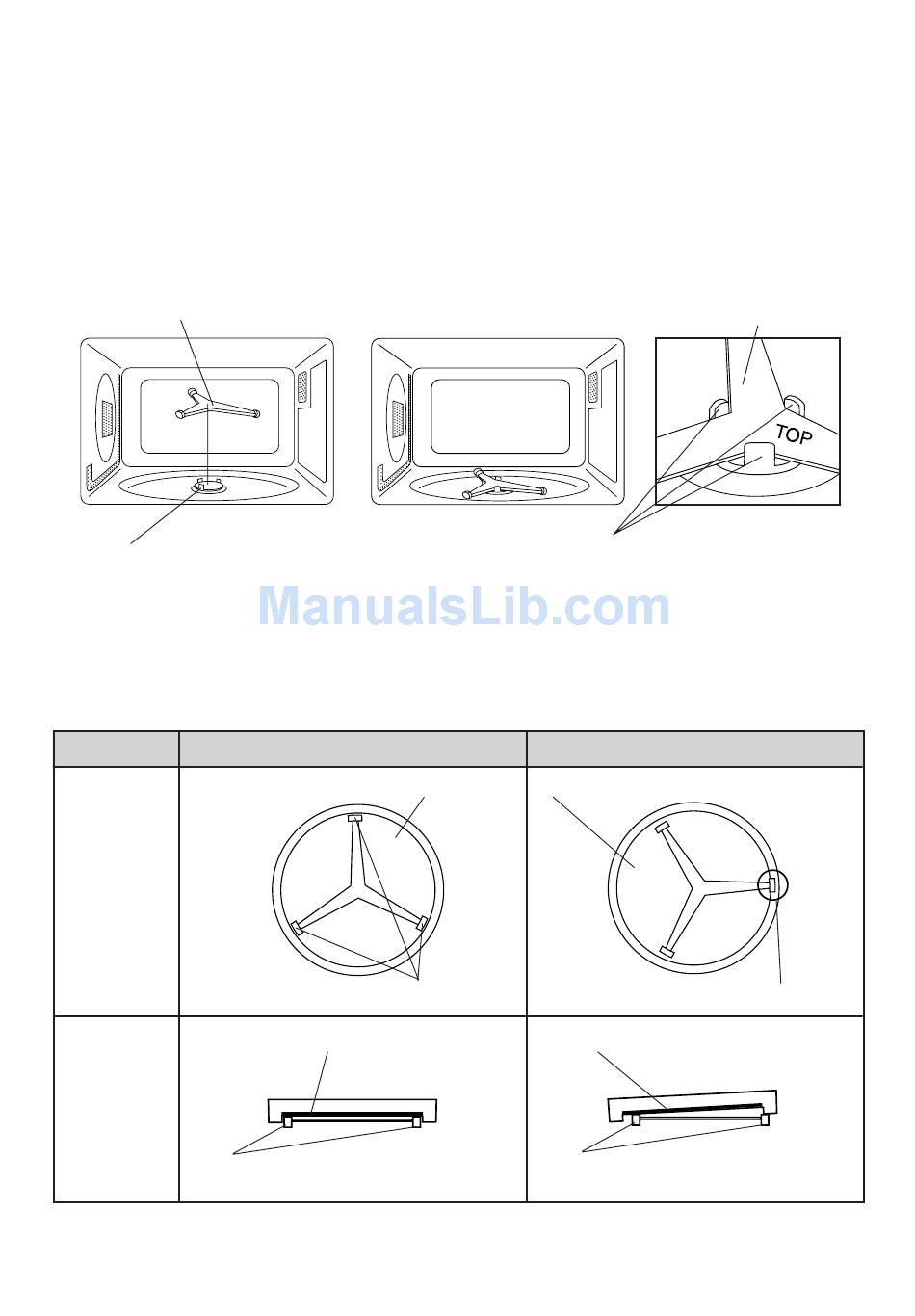

Special Note for the Turntable Support and Turntable
To avoid arcing, carefully read before placing the turntable support and turntable into the oven.
1. Place the turntable support, with the engraved word "Top" facing up, securely within the three pins on
the turntable motor shaft. See Figures 1 and 2. See Figure 3 to check for the correct placement.
Turntable support
Figure 1
Turntable motor shaft
2. Place the turntable on the turntable support. The turntable should be place so that all three rollers of
the turntable support come in contact with the flat, underside surface of the turntable. Refer to the chart
below to ensure correct placement.
Underside
view
Side view
Rollers of the turntable support
Figure 2
CORRECT
Flat surface of the turntable
Rollers of the turntable support
Flat surface of the turntable
The pins of the turntable motor shaft
Flat surface of the turntable
Flat surface of the turntable
Rollers of the turntable support
9
Turntable support
Figure 3
INCORRECT
Not on flat surface
