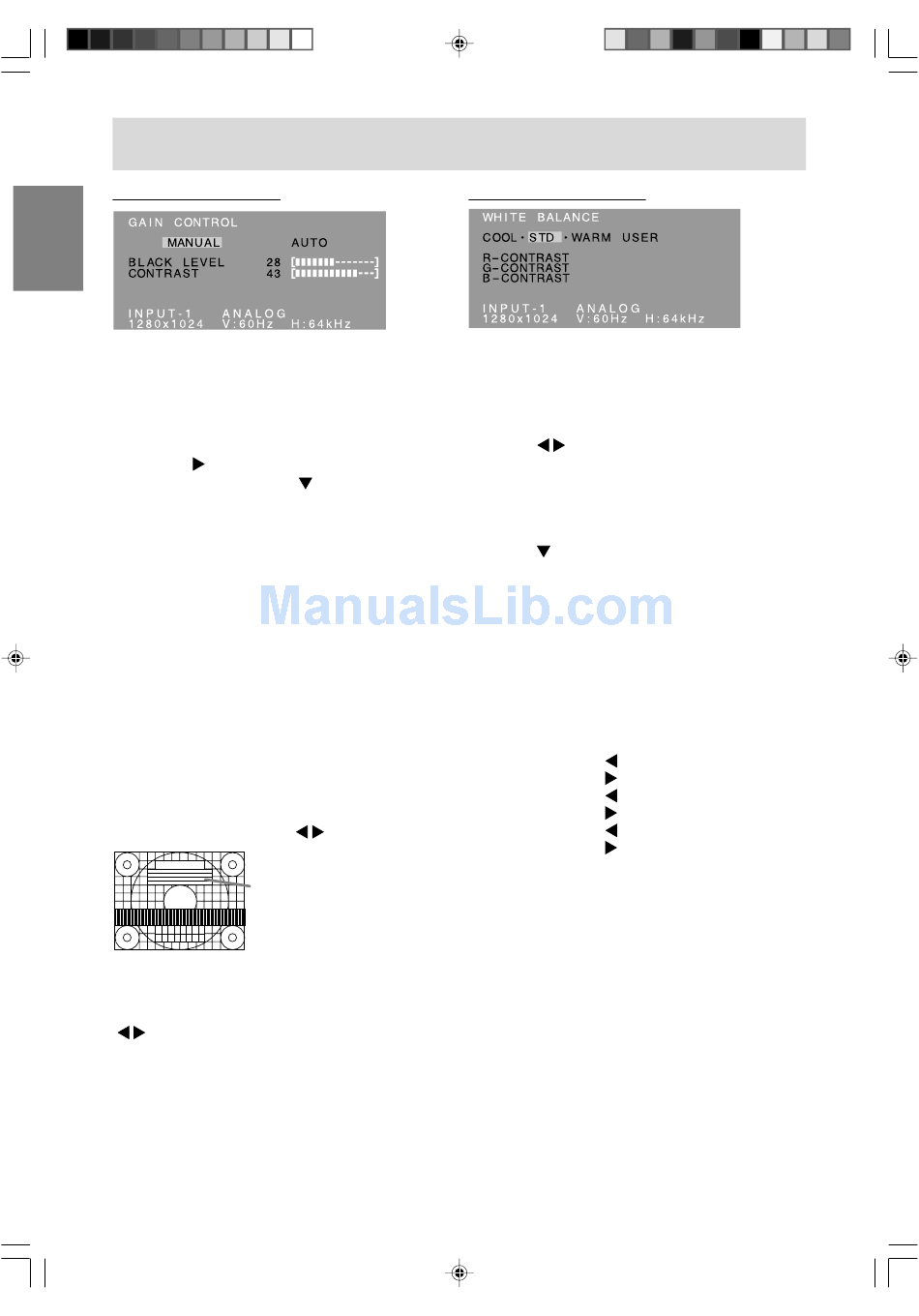

Adjusting the screen display
GAIN CONTROL Menu
MANUAL: Individual menu options are manually
adjusted.
AUTO: Every menu option is automatically
adjusted using the Auto Gain Control*
function.
Notes:
- Press the button to select [AUTO].
- To choose a menu option:
- To go to the next menu: MENU button
* Auto Gain Control function
- The Auto Gain Control adjusts contrast and black
level based on the brightest and darkest colors of
the image displayed. If you are not using the
Adjustment Pattern it is necessary to have black
area and white area of at least 5 mm x 5 mm on
the screen. Adjustment may not be possible
without those areas.
- If the signal coming from the computer is
Composite Sync or Sync on Green, automatic
adjustment cannot be performed. Please perform
manual adjustment instead.
- If [OUT OF ADJUST] is displayed, perform
manual adjustment.
BLACK LEVEL
Total screen brightness can be adjusted while
watching the color pattern. (
Color pattern
CONTRAST
While watching the color pattern, adjustments can
be made so that all gradations appear.
( buttons)
WHITE BALANCE Menu
Notes:
- On settings other than [STD] not all gradations
can be displayed. To display all gradations, set to
[STD].
- If [DISPLAY MODE] is set to [sRGB] or [VIVID],
no other setting than [STD] can be selected.
- Use the
[·], [WARM] or [USER].
- Selecting [USER] will display the setting values
/ MODE button
for [R-CONTRAST], [G-CONTRAST] and
[B-CONTRAST], in order to make fine
adjustments.
- Use the
[R-CONTRAST], [G-CONTRAST] and
[B-CONTRAST].
- To go to the next menu: MENU button
COOL ....... Color tone bluer than standard
• ............. Color tone slightly bluer than standard
STD .......... Color tone standard setting
• ............. Color tone slightly redder than standard
WARM ...... Color tone redder than standard
USER
R-CONTRAST .....
G-CONTRAST .....
B-CONTRAST .....
buttons)
18
(When using an analog signal)
buttons to select [COOL], [·], [STD],
/ MODE button to select
button for blue-green
button for red
button for purple
button for green
button for yellow
button for blue
